Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD7-11-CF1B-B-B-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|

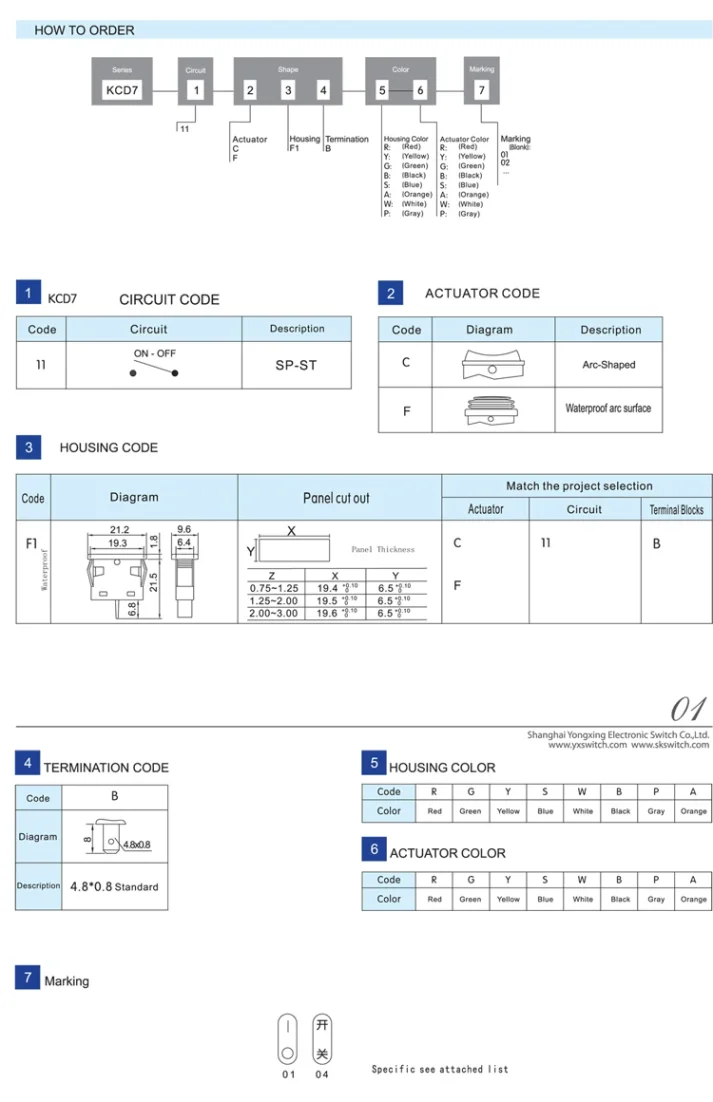

Dimension Code
|
F1 (21.2×23.3×9.6, 19.3×21.5×6.4)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

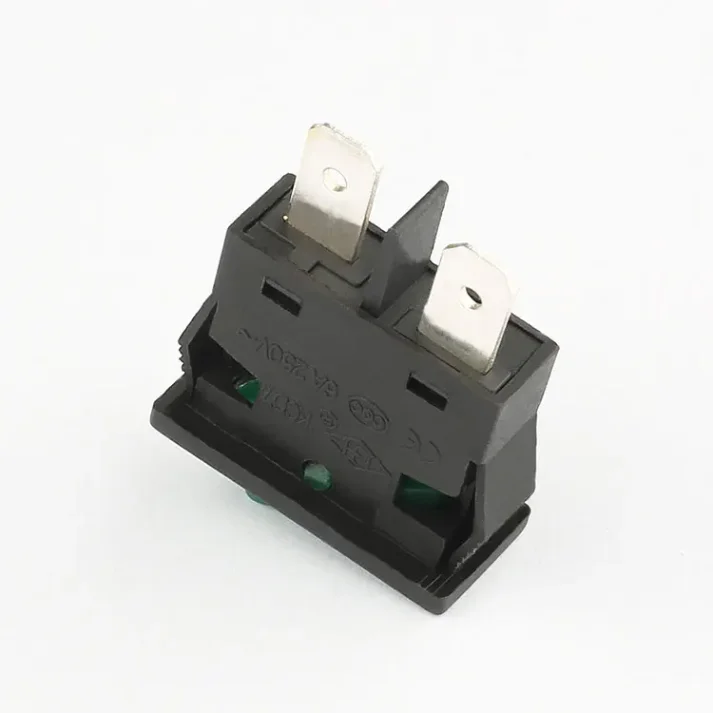

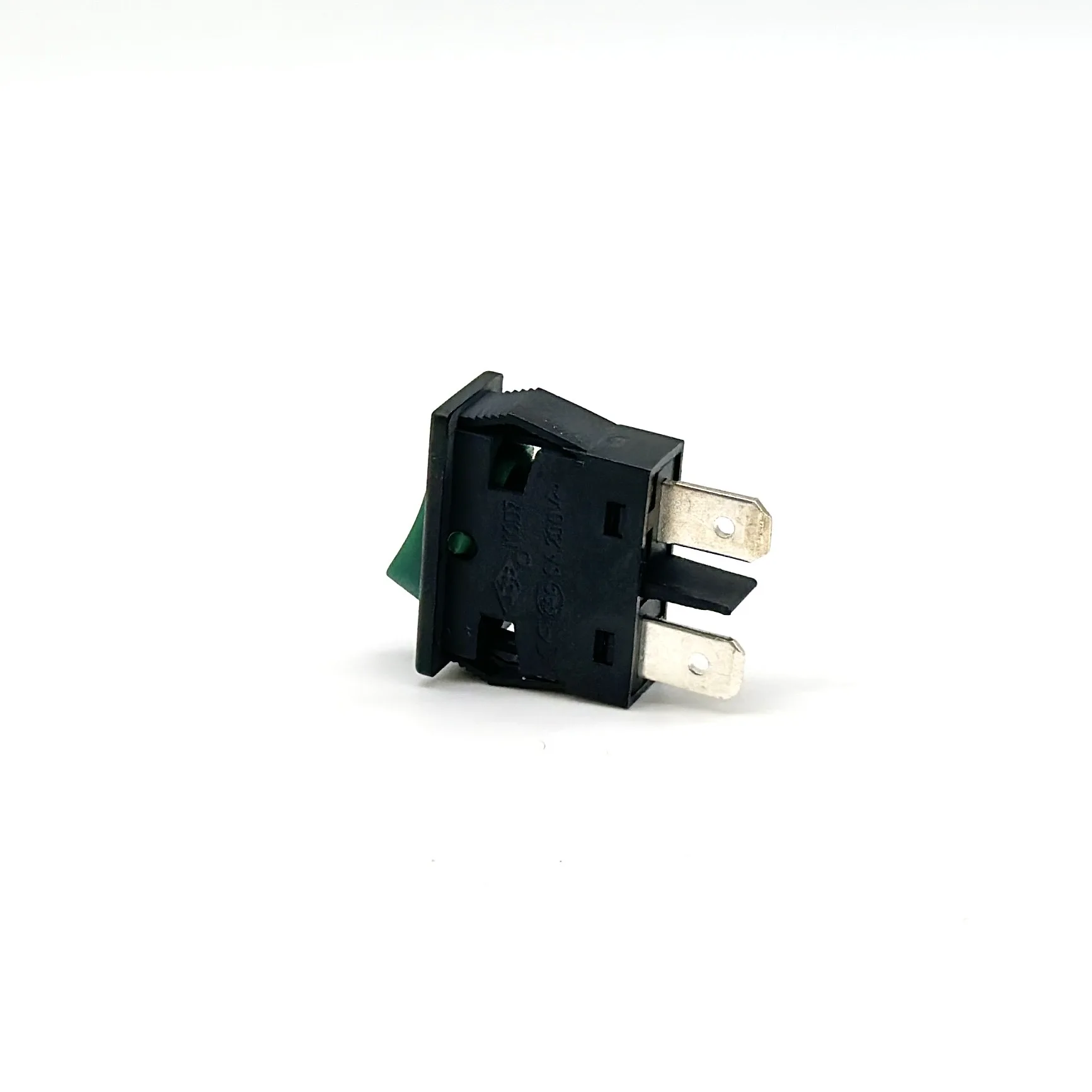

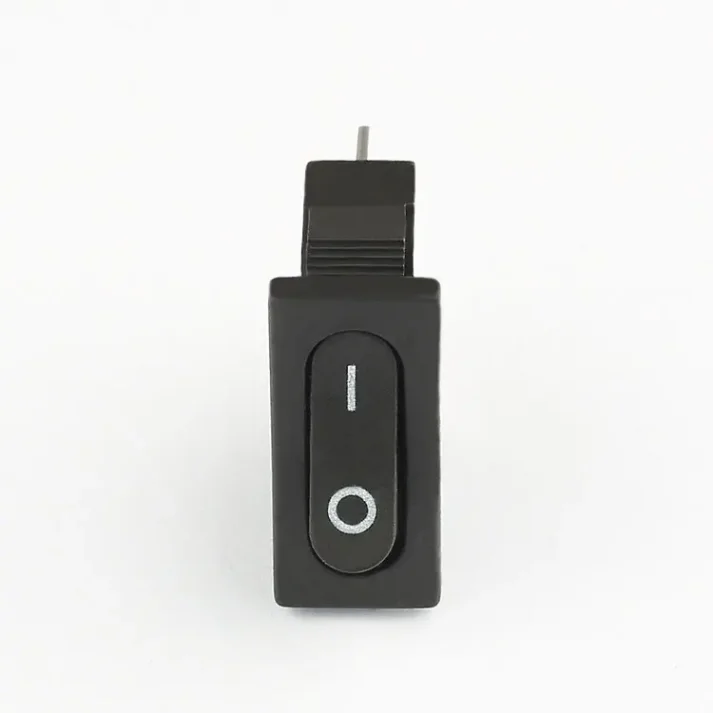

Why Choose Our 6A 250V Black Rocker Switch?
Our 6A 250V Black Rocker Switch is a high-quality electrical component designed for long-lasting performance. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures reliability in various applications. The switch is CE, CQC, and ROHS certified, guaranteeing safety and compliance with international standards.
What Makes Our Switch Stand Out?

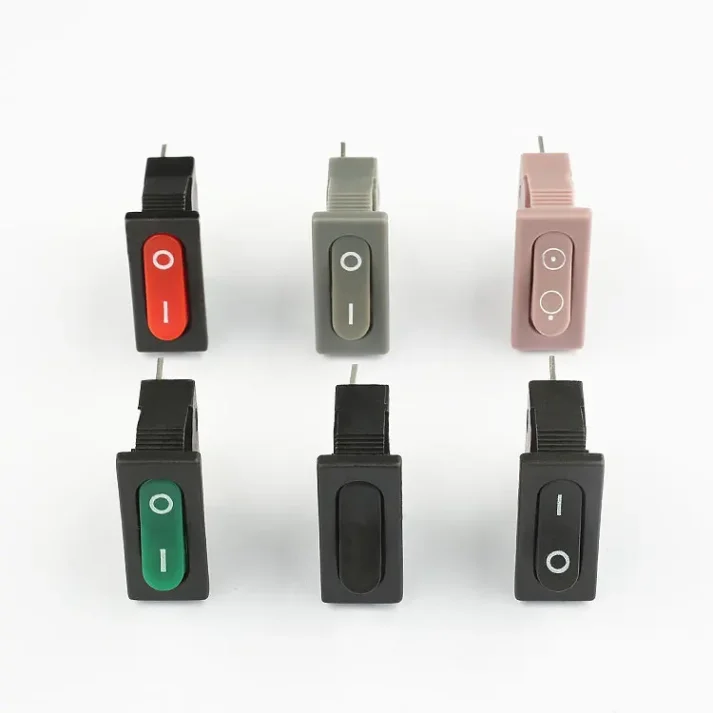

Our switch stands out with its compact dimensions (19.5x6.5mm) and multiple color options (red, yellow, green, black, blue, orange, white, gray), making it suitable for a wide range of designs. It also features a high dielectric strength (1500VAC for 1 minute) and an IP65 rating, providing excellent protection against dust and water. This makes it ideal for use in boats, machinery, electrical panels, and more.
Why Buy From Us, Your Factory Supplier?
As a factory-direct supplier, we offer wholesale pricing on our 6A 250V Black Rocker Switch, ensuring you get the best value for your money. Our switch is not only durable and reliable but also easy to install and use. Choose us for quality, affordability, and the convenience of bulk ordering.
