Description

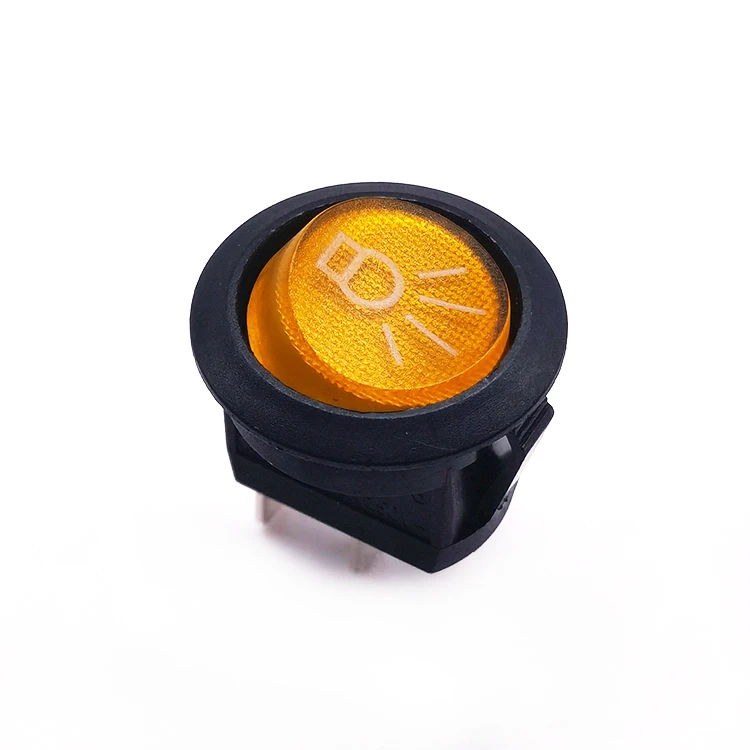

KCD8 3-Pin Rocker Switch – Wholesale Supplier Direct from Factory
Our KCD8 3-pin rocker switch, a top-notch product from our factory, is designed to meet your electrical needs with precision and reliability. This switch boasts a maximum current rating of 6A and a voltage rating of 250V AC, making it suitable for a wide range of applications.
Product Specifications
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1,000MΩ
- Dielectric Resistance: 1,500V AC for 1 minute
- Electrical Life: 10,000 cycles
- Mechanical Life: 50,000-100,000 cycles
- IP Level: IP40, IP65
- Certifications: UL, CE, CQC, CB, ENEC, ROHS
- Housing Color: Black
- LED Color Options: Amber, Orange, Red, Blue, Green
Product Advantages
Our KCD8 rocker switch stands out from the competition with its durable construction, high electrical ratings, and versatile design. The switch is available in 2-pin and 3-pin configurations, catering to different application requirements. Additionally, its IP40 and IP65 ratings ensure protection against dust and water ingress, making it suitable for use in harsh environments.
Product Usage
This rocker switch is ideal for use in electric fireplaces, industrial machinery, automotive applications, and more. Its compact size and easy-to-use design make it a popular choice among engineers and technicians.
After-Sales Service
As a factory-direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our team is always ready to assist you with any questions or concerns you may have.
| Contact Resistance | ≤50mΩ rocker switches for electric fireplace |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles 4 pin on-off rocker switch |
| Operating Temperature | T55 rocker switch |
| Certification |
CQC , CE |
| Max. Rating Current & Voltage (CQC , CE) |
6A 250V AC |
Why Choose Our KCD8 Rocker Switch?
Our KCD8 rocker switch offers unmatched durability and reliability, with a maximum current rating of 6A and a voltage rating of 250V AC. Its high electrical ratings make it suitable for a wide range of applications, from electric fireplaces to industrial machinery.
What Are the Advantages of Our Switch?
In addition to its high electrical ratings, our KCD8 rocker switch boasts a long mechanical life of 50,000-100,000 cycles. It is also available in 2-pin and 3-pin configurations, catering to different application requirements. The switch's IP40 and IP65 ratings ensure protection against dust and water ingress, making it ideal for use in harsh environments.
Where Can Our Switch Be Used?
Our KCD8 rocker switch is versatile and can be used in a variety of applications, including electric fireplaces, industrial machinery, automotive systems, and more. Its compact size and easy-to-use design make it a popular choice among engineers and technicians.
