Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD6-21N-CB1B-B-G-01
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
DPST
|
|
Dimension Code
|
B1 (21.2×16.3×15 , 19×14.5×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Key Features

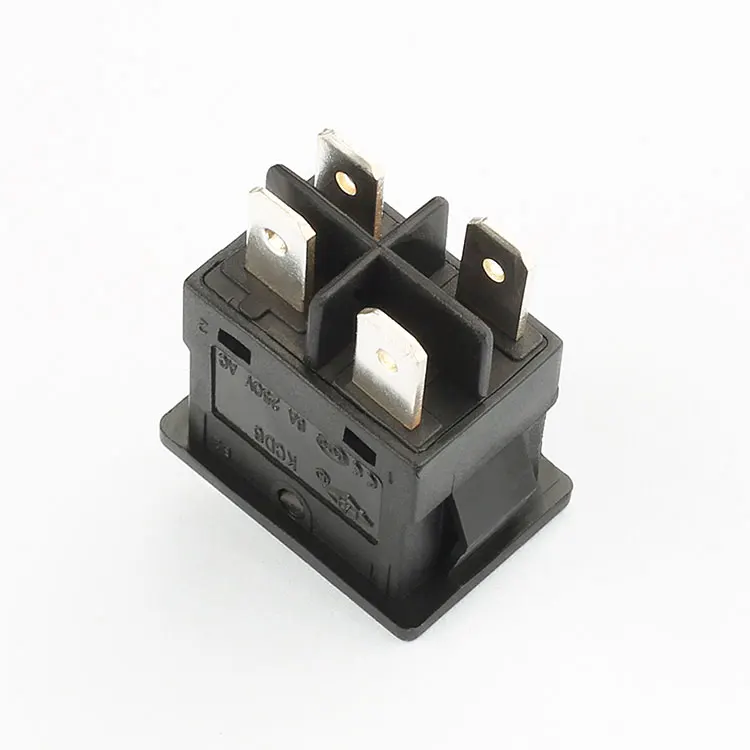

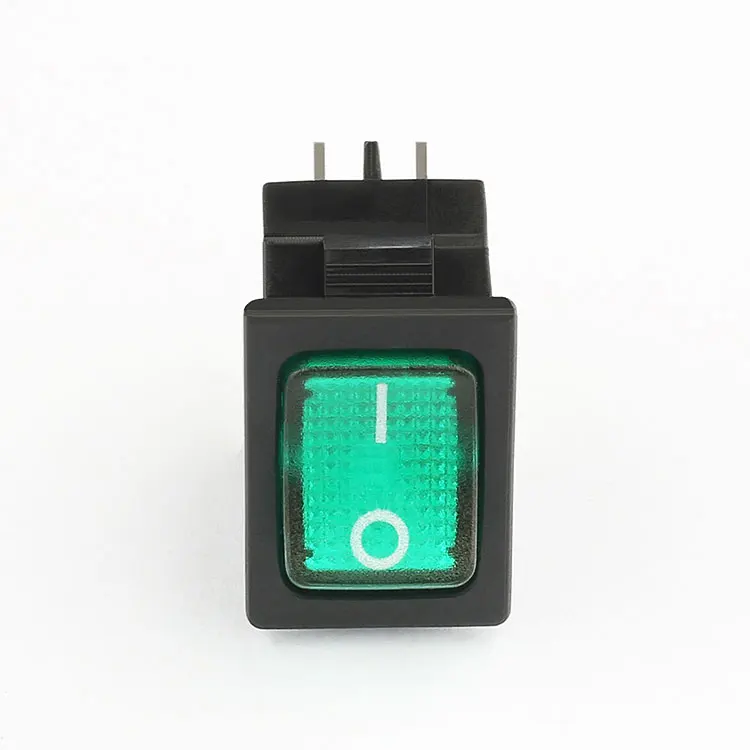

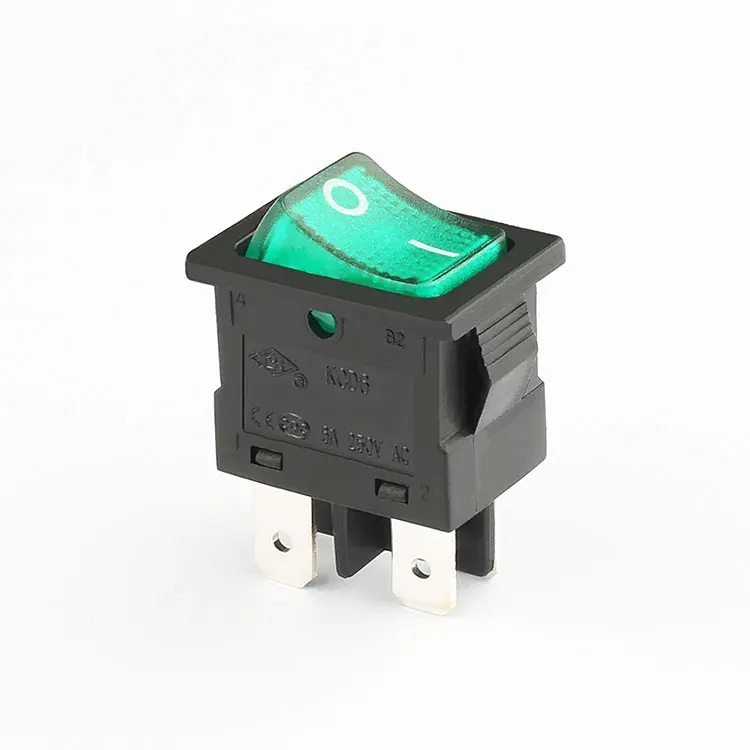

Our 6A DPST Illuminated Rocker Switch is designed for industrial and electric equipment applications, offering a 6A current rating and 250V AC voltage rating. It features an LED indicator for easy status checking and a long mechanical life of 50,000 cycles.
Durability & Compliance
With an electronic life of 10,000 cycles and certifications from CQC, CE, and ROHS, our switch guarantees safety, compliance, and long-lasting durability. It's made of high-quality materials like plastic, brass, rubber, ABS, copper, and PC, ensuring reliability and stability.
Why Choose Us?
As a direct supplier and wholesaler from Shanghai, China, we offer competitive prices, reliable quality, and excellent after-sales service. Our switch stands out with its excellent performance, durability, and affordability. Choose us for your wholesale purchases and enjoy the benefits of working with a trusted supplier.
