Description
Product Specifications:
- Current Rating: 6A
- Voltage Rating: 250V AC
- Mechanical Life: 50,000 Cycles
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500VAC 1 Minute
- Electronic Life: 10,000 Cycles
- Circuit: SPST ON OFF
- Dimension Code: A1
- Contact Piece Code: A
- Lamp Voltage Options: 6V/12V/24V/110V/220V
- Operating Temperature: 0~55℃, 0~85℃, 0~105℃
- Color Options: Red, Yellow, Green, Black, Blue, Orange, White, Gray
Product Advantages:
- Our switch stands out with its long mechanical life of 50,000 cycles, ensuring reliability and durability.
- With multiple lamp voltage options, it’s versatile for various applications.
- The wide operating temperature range makes it suitable for diverse environments.
- Available in a variety of colors, it can match any design requirement.
Why Choose Us?
- As a factory direct supplier, we offer competitive wholesale prices.
- Our products are certified with CQC, CE, CB, ENEC17, and ROHS, ensuring quality and safety.
- We provide excellent after-sales service, ensuring customer satisfaction.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-13-CA1A-B-B-112/with nut(110207-001
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Product Functionality

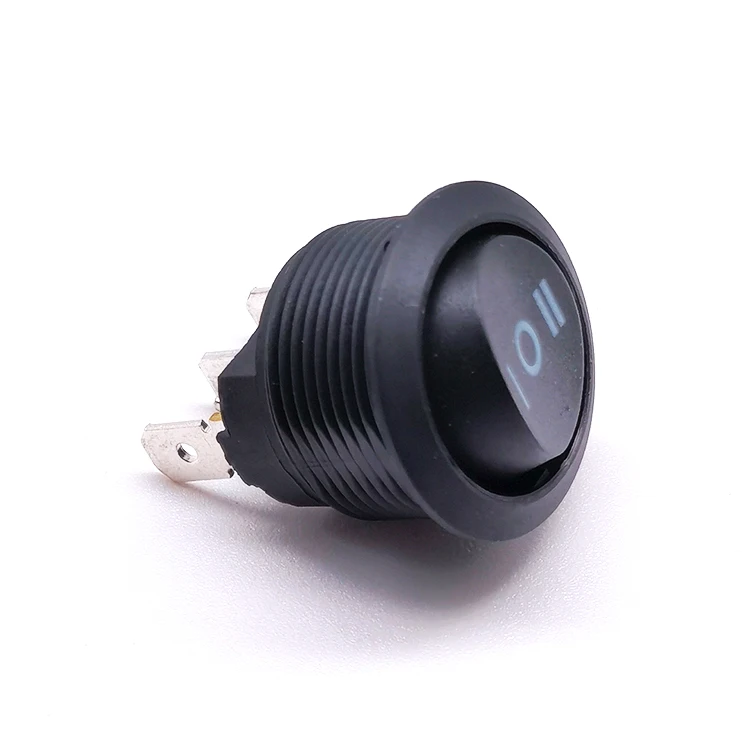

Our 6A Round Rocker Switch is designed for ON OFF control, offering a reliable and straightforward operation. With a long mechanical life of 50,000 cycles, it ensures durability and consistent performance over time.
Product Versatility
The switch supports multiple lamp voltage options, making it suitable for a wide range of applications. Whether you need it for electrical equipment, industrial machinery, or home appliances, our switch can meet your requirements.
Why Choose Our Switch?
As a factory direct supplier, we offer competitive wholesale prices without compromising on quality. Our switch is certified with multiple international standards, ensuring safety and reliability. Choose us for your electrical component needs and experience the difference in quality and service.
