Description
Key Features:
– **Rated Voltage & Current**: 300V, 10A
– **Contact Resistance**: Just 20mΩ for minimal power loss
– **Insulation Resistance**: Exceeds 5000MΩ at DC500V, ensuring safety and reliability
– **Withstand Voltage**: AC2000V/Min for robust performance
– **Operating Temperature**: Wide range from -40℃ to +150℃
– **Contact Material**: Durable brass with tin plating
– **Poles**: Available in 2 to 16 poles configurations
– **Certification**: CQC approved for quality assurance
Our terminal block stands out with its spring-loaded design, eliminating the need for screws and simplifying installation. This not only saves time but also reduces the risk of loose connections. Perfect for use in industrial machinery, control panels, and more, our product offers unmatched durability and performance.
As a factory-direct supplier, we ensure competitive pricing without compromising on quality. Our wholesale options make it easy for businesses to stock up on this essential component. Trust us for all your terminal block needs!
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YX222-762-02P
|
|
Type
|
Spring Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
10A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~16 poles
|
|
Certificate
|
CQC
|

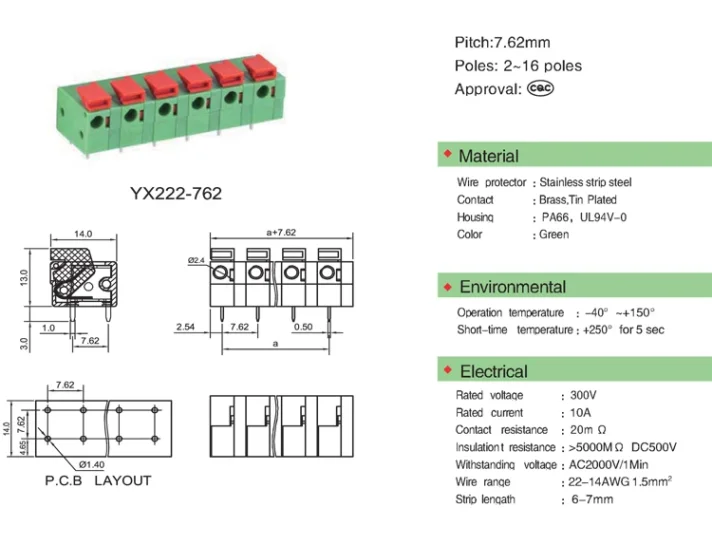

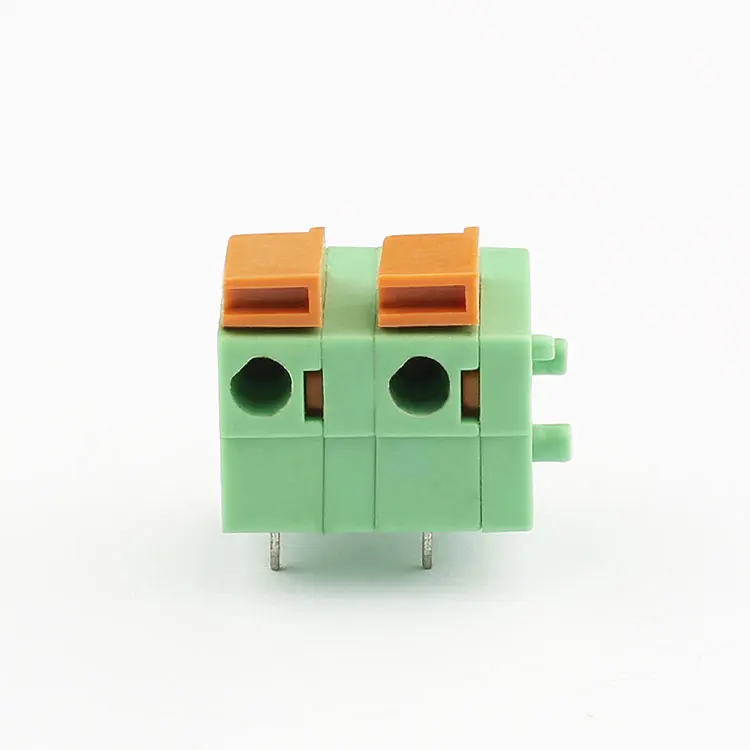

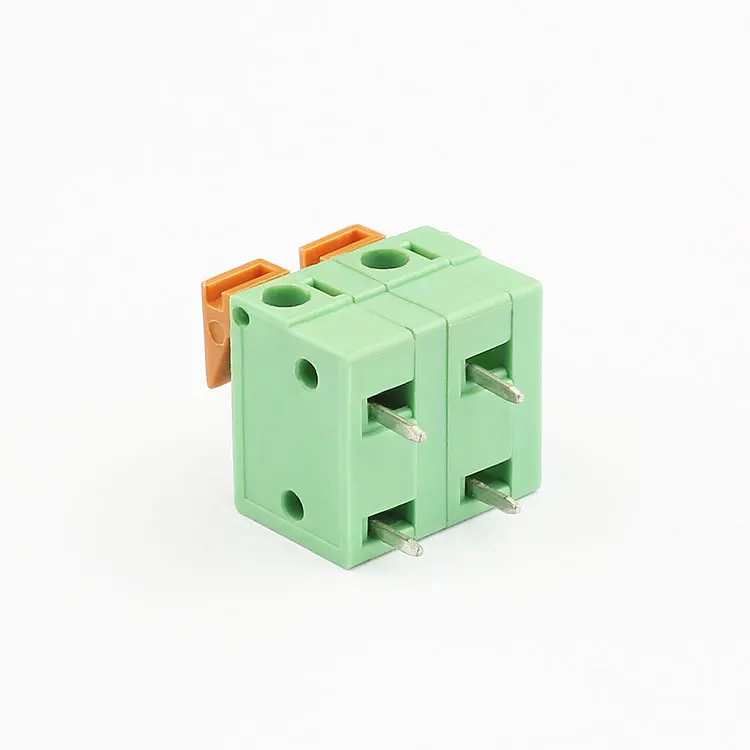

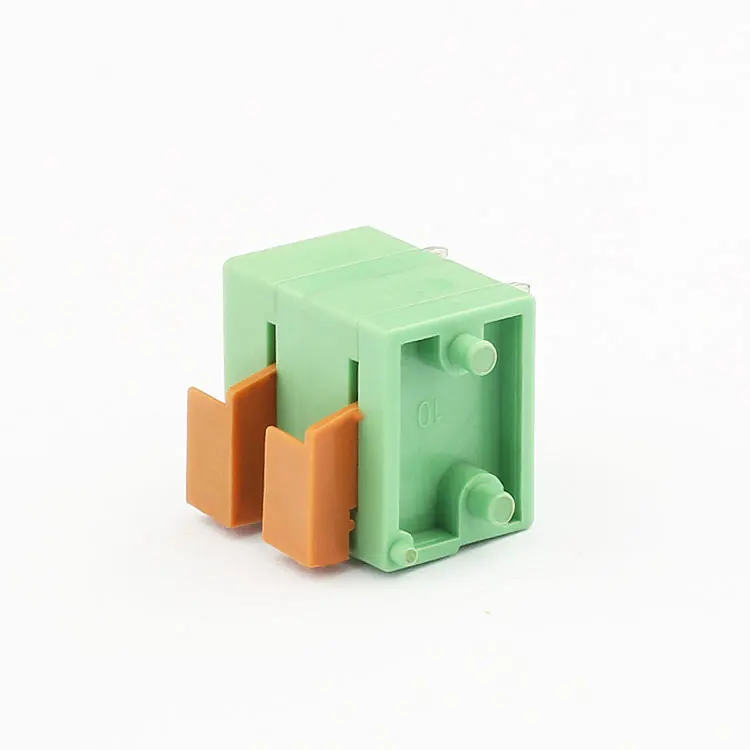

Why Choose Our 7.62mm 2-Pole Spring Terminal Block?
Our 7.62mm 2-Pole Spring Terminal Block is designed for efficiency and reliability. With its screwless connection, it simplifies installation and reduces the risk of loose connections. The high insulation resistance and wide operating temperature range make it suitable for various industrial applications.
What Are the Key Advantages?
Key advantages include its durability, thanks to the brass and tin-plated contacts, and its CQC certification, ensuring quality and safety. Additionally, our factory-direct pricing offers significant savings for wholesale buyers.
How Does It Compare to Other Terminal Blocks?
Our terminal block stands out with its spring-loaded design, which eliminates the need for screws and speeds up installation. It also offers superior contact resistance and insulation resistance, ensuring reliable performance in demanding environments.
