Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YB522-500M-07P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|
Product Overview

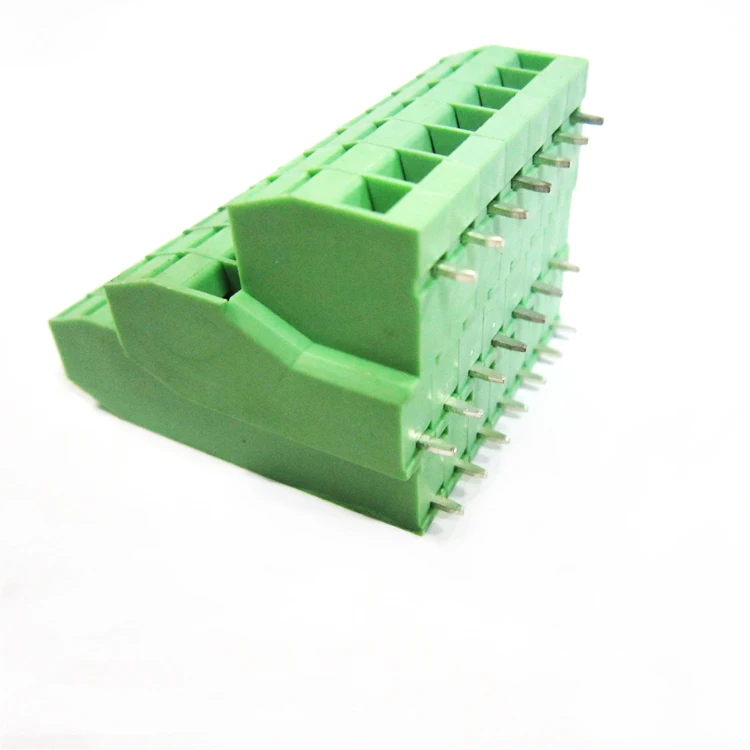

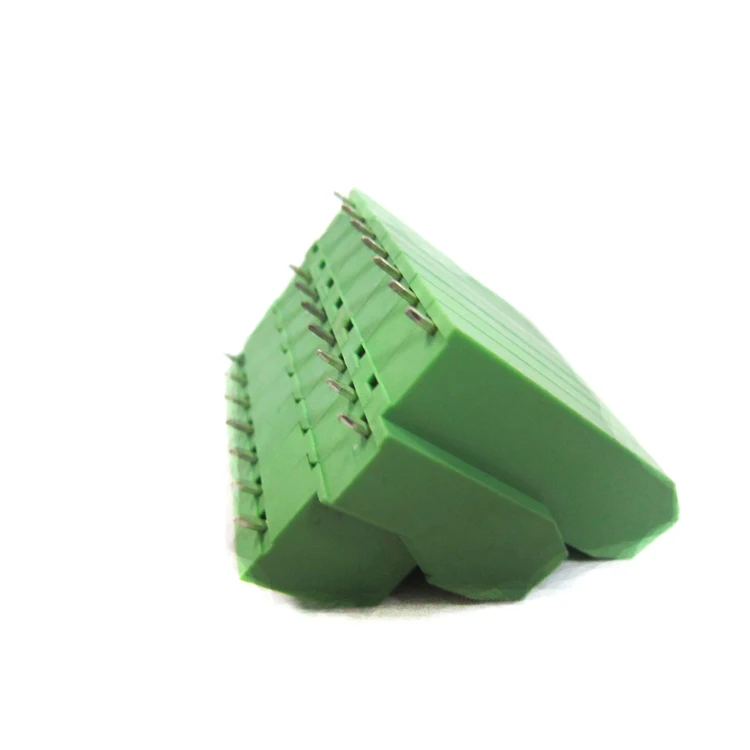

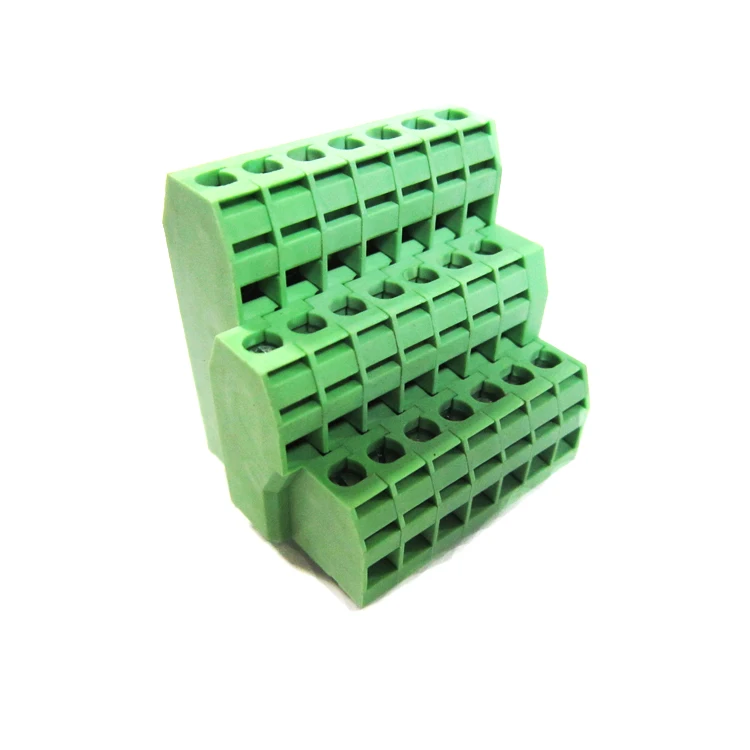

Our 7-Pole 16A 300V Screw Terminal Block is a robust and reliable electrical connector, ideal for a variety of industrial applications. With its high contact and insulation resistance, it ensures safe and efficient electrical connections.
Why Choose Our Terminal Block?
As a factory supplier, we offer competitive wholesale pricing without compromising on quality. Our terminal blocks are made in Shanghai, China, by reputable brands Sk(Shangkai) and Yongxing, ensuring durability and performance. The wide wire range and temperature tolerance make it suitable for diverse environments.

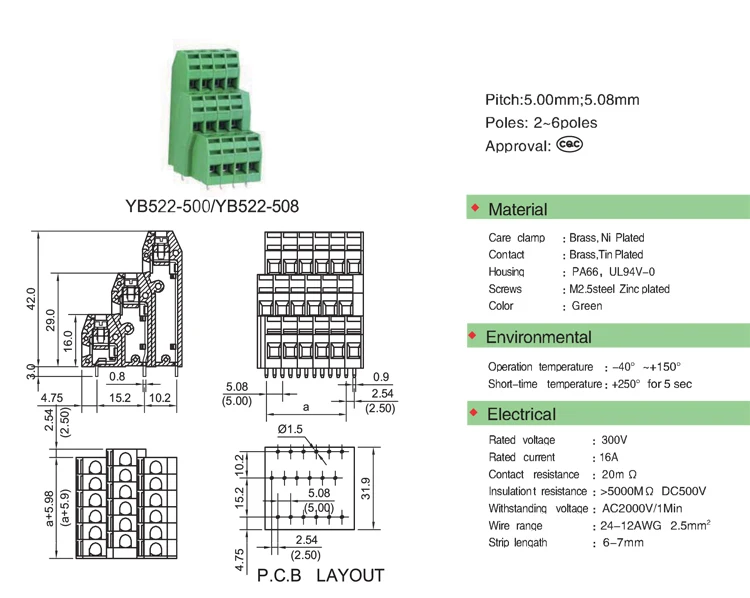

Technical Specifications
This terminal block features a rated voltage of 300V and a rated current of 16A, with a contact resistance of 20mΩ and an insulation resistance exceeding 5000MΩ DC500V. It can withstand up to AC2000V/Min and accommodates wire sizes from 24-12AWG (2.5mm quadratic), with a strip length of 6-7mm. The M2.5 steel zinc-plated screws and brass, tin-plated contacts ensure long-lasting durability.
