Description
Our factory boasts advanced injection molding workshops and cutting-edge experimental equipment, ensuring precision manufacturing. We have over 60 senior engineers and implement strict 5S management in all workshops, guaranteeing superior product quality.
Product Specifications:
- Max. Rating Current & Voltage (Resistive Load): 3A/250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000 MΩ
- Dielectric Strength: 1500V
- Electronic Life (cycles): 50,000
- Mechanical Life (cycles): 200,000
- Operating Temperature: -5°C ~ +75°C
- IP Code: IP40
- Color: Green
- Mounting Hole Size: 10mm
- LED: Yes
- Switch Combination: 1NO1NC
- Certification: CQC, CE, ROHS
Advantages:
Our switches stand out with their long mechanical and electronic life, ensuring durability and reliability. The low contact resistance and high insulation resistance guarantee stable performance. Additionally, our factory direct wholesale prices offer unbeatable value.
After-sales Service:
We provide comprehensive after-sales support, including technical assistance and warranty services. Contact us for bulk orders and customization options to meet your specific requirements.
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 50000 |
| Mechanical Life(cycles) | 200000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |

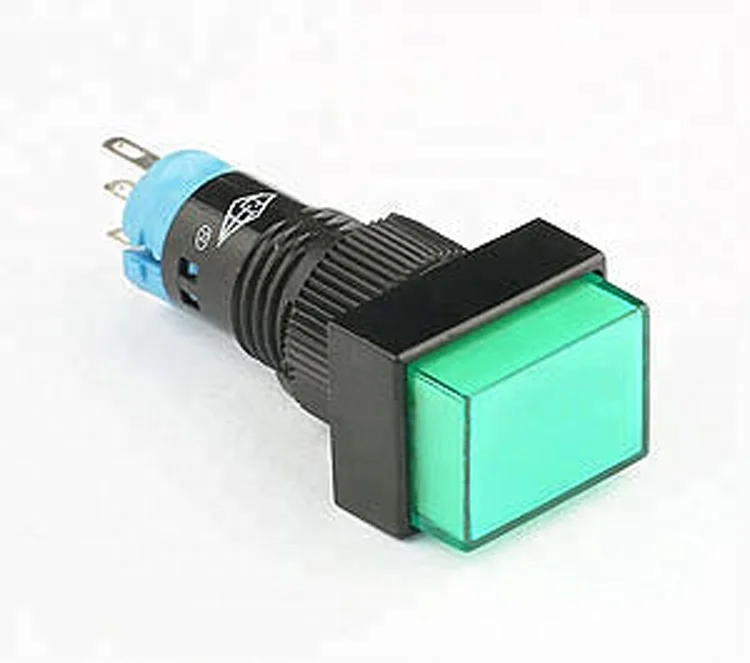

Why Choose Our AD10 Push Button Switch?
Our AD10 push button switch is designed for durability and reliability, with a long mechanical and electronic life. The momentary on/off function makes it ideal for various applications, while the LED indicator provides clear visual feedback.
What Are the Key Features?
Key features include a 3A/250V AC rating, low contact resistance, high insulation resistance, and IP40 protection. The switch also comes with a 1NO1NC configuration and is available in green.
Can We Customize the Switch?
Yes, as a factory supplier, we offer customization options to meet your specific requirements. Contact us for bulk orders and personalized solutions.
