Description
Our AD111 indicator light boasts an IP65 protective degree (IP67 available on request), ensuring it can withstand harsh environments. With a brightness of ≥100cd/m² and a continuous operating life of ≥30,000 hours, this indicator light is built to last. It also features a high insulation resistance of ≥2MΩ and a power frequency withstand voltage of 2.5KV per minute.
Ideal for a wide range of applications, our AD111 indicator light is suitable for use in ambient temperatures ranging from -25°C to +55°C, with a relative air humidity of ≤98%. It is also pollution degree 3 and installation group II compliant, making it a reliable choice for various industrial settings.
Choose our factory-direct AD111 indicator light for superior quality, competitive pricing, and reliable after-sales service. We are your trusted wholesale supplier for all your signaling needs.
|
item
|
value
|
|
|
Place of Origin
|
Shanghai,China
|
|
|
Brand Name
|
SK(Shangkai)
|
|
|
Model Number
|

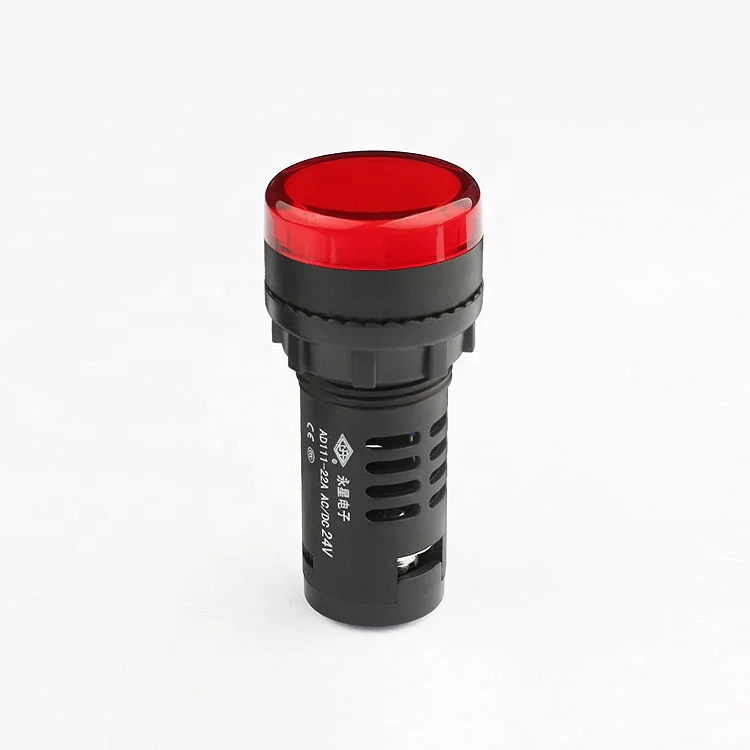

AD111-22A-DC.AC 24V R
|
|
|
LED voltage
|
ac dc 24v
|
|
|
Protective degree of the head
|
IP65, IP67 is available on request
|
|
|
Applying frequency
|
AC 50-60Hz or customized
|
|
|
Brightness
|
≥100cd/m2
|
|
|
Continous operating life
|
≥30000H
|
|
|
Insulation resistance
|
≥2MΩ
|
|
|
Power frequency withstand voltage
|
2.5KV per min (effective AV value)
|
|
|
CTI
|
≥100
|
|
|
Ambient temperature
|
-25℃~+55℃
|
|
|
Relative air humidity
|
≤98%
|
|
|
Pollution degree is 3,inatallation group is Ⅲ. Normally workable when vibration frequency is 2-80 Hz with acceleration of 0.7g
|
||
Key Features of AD111 22mm Panel Mount Indicator Light
The AD111 22mm Panel Mount Indicator Light stands out with its high brightness (≥100cd/m²) and long continuous operating life (≥30,000 hours), making it ideal for demanding industrial environments. Its IP65 protective degree (IP67 available) ensures resistance to dust and water, while the wide operating temperature range (-25°C to +55°C) and high relative air humidity tolerance (≤98%) make it suitable for various conditions.
Why Choose Our AD111 Indicator Light?
As a factory direct supplier, we offer wholesale pricing on the AD111 indicator light, ensuring you get the best value for your money. Our product is CQC, CE, and CCC certified, guaranteeing its quality and safety. With a high insulation resistance and power frequency withstand voltage, it provides reliable performance and peace of mind.
Applications and Uses
The AD111 indicator light is perfect for industrial signaling, control panels, and equipment indication. Its durable construction and reliable performance make it a preferred choice for professionals in various industries. Whether you need to indicate the status of machinery, equipment, or systems, the AD111 indicator light is up to the task.
