Description
Key Specifications:
- Max. Current: 3A
- Max. Voltage: 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Resistance: 1,500V
- Electrical Life: 50,000 cycles (Momentary)
- Mechanical Life: 200,000 cycles (Momentary)
- Certification: CQC, CE
- Operating Temperature: -5°C to +75°C
- IP Code: IP40
Advantages:
- Durable: With a long mechanical life, this switch can withstand frequent use without failure.
- Reliable: Low contact resistance and high insulation resistance ensure stable performance.
- Safe: IP40 protection level provides basic protection against solid foreign objects.
- Versatile: Suitable for various industrial and commercial applications.
Our Service:
- As a factory and supplier, we offer competitive wholesale prices.
- We provide excellent after-sales service to ensure customer satisfaction.
- Customization options are available to meet your specific needs.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |

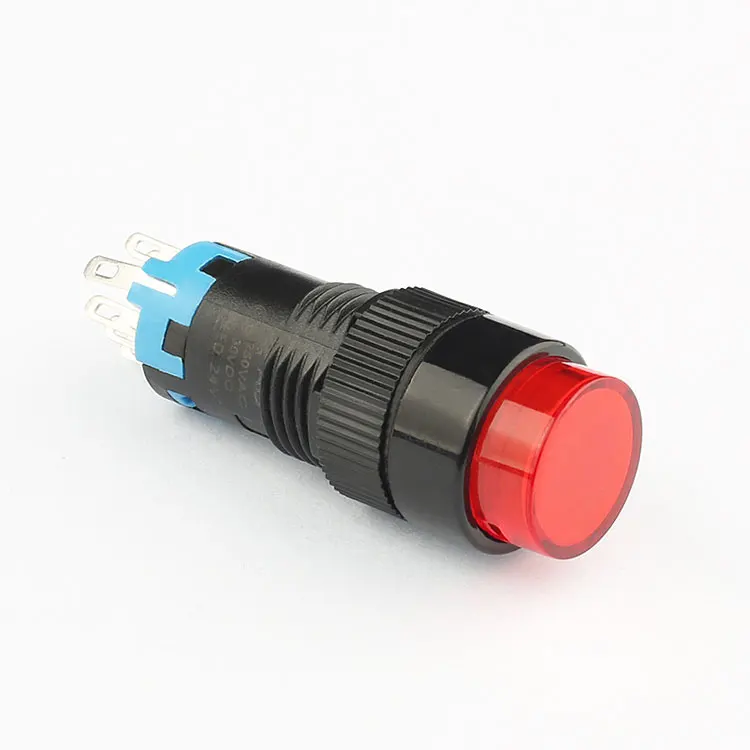

Why Choose Our AD12 Round Red Push Button Switch with Light?
Our AD12 Round Red Push Button Switch with Light stands out for its durability, reliability, and versatility. With a long mechanical life of up to 200,000 cycles (Momentary), it can withstand frequent use without failure, making it ideal for industrial and commercial applications. The LED indicator light provides clear visual feedback, enhancing user experience.
What Are the Key Specifications?
This switch features a 12mm size, 2NO2NC contact configuration, and a maximum current rating of 3A and a maximum voltage of 250V AC. It also boasts low contact resistance (≤50mΩ), high insulation resistance (≥100MΩ), and a dielectric resistance of 1,500V, ensuring stable and safe performance.
What Are the Advantages of Buying from Us?
As a factory and supplier, we offer competitive wholesale prices and excellent after-sales service. We also provide customization options to meet your specific needs. Choose us for high-quality products and reliable service.
