Description

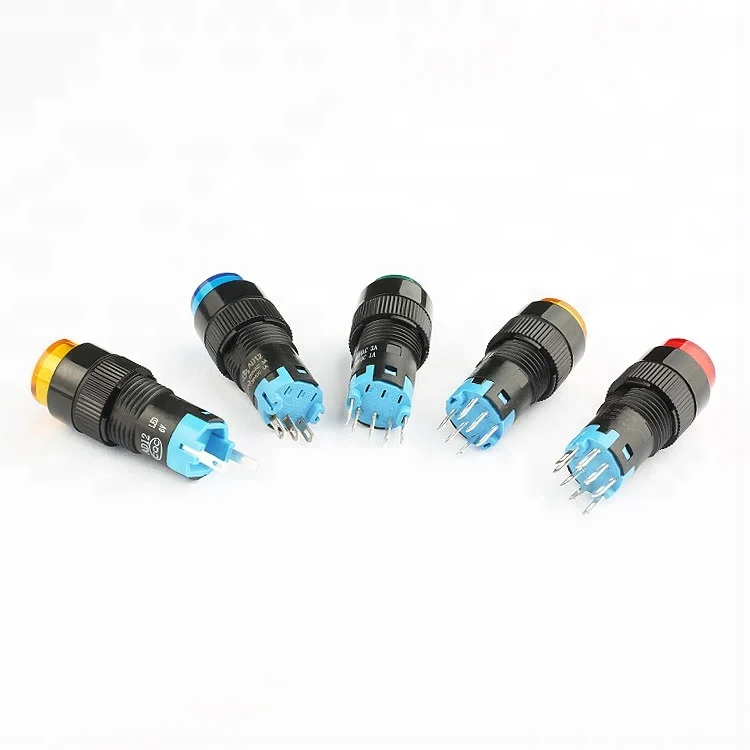

AD12 Wholesale 12mm Self-locking Push Button Switch
As a factory supplier, we offer the AD12 12mm self-locking push button switch at wholesale prices. This switch is illuminated and features 1NO1NC contact configuration, making it suitable for a wide range of applications. Our factory is equipped with independent plants, injection molding workshops, and advanced experimental equipment. With over 60 senior engineers and 5S management implemented in all workshops, we ensure high-quality production.
Product Specifications:
- Max. Rating Current & Voltage (Resistive Load): 3A/250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000 MΩ
- Dielectric Strength: 1500V
- Electronic Life (cycles): 25,000
- Mechanical Life (cycles): 50,000
- Operating Temperature: -5°C to +75°C
- IP Code: IP40
- Mounting Hole: 12mm
- LED: Yes (White, Orange, Red, Blue, Green)
- Terminal Type: 5 Pin Terminals
- Certification: CQC, CE
Product Advantages:
Our AD12 switch stands out with its self-locking function, ensuring reliable operation. The illuminated design enhances visibility in low-light conditions. With a wide operating temperature range and high IP40 protection level, it’s suitable for various industrial environments. As a factory supplier, we can customize the switch to meet your specific requirements, and we offer competitive wholesale prices for bulk orders.
After-sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any inquiries or issues.
Contact us today to learn more about our AD12 wholesale 12mm self-locking push button switch and place your order!
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 25000 |
| Mechanical Life(cycles) | 50000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Why Choose Our AD12 12mm Self-locking Push Button Switch?
Our AD12 switch is designed for reliability and durability. The self-locking function ensures that the switch remains in the desired position, providing stable operation. The illuminated design enhances visibility, making it easy to locate and operate in low-light conditions. With a wide operating temperature range and high IP40 protection level, it's suitable for various industrial environments.
Customization Options
As a factory supplier, we offer customization options to meet your specific requirements. Whether you need a different LED color, terminal type, or other modifications, we can tailor the switch to your needs. Our experienced engineers and advanced production facilities ensure that we can deliver high-quality customized products efficiently.
Competitive Wholesale Prices
We offer competitive wholesale prices for bulk orders. As a direct factory supplier, we eliminate the middleman, allowing us to pass on the savings to our customers. Whether you're a distributor, reseller, or end-user, you can benefit from our cost-effective pricing and reliable products.
