Description

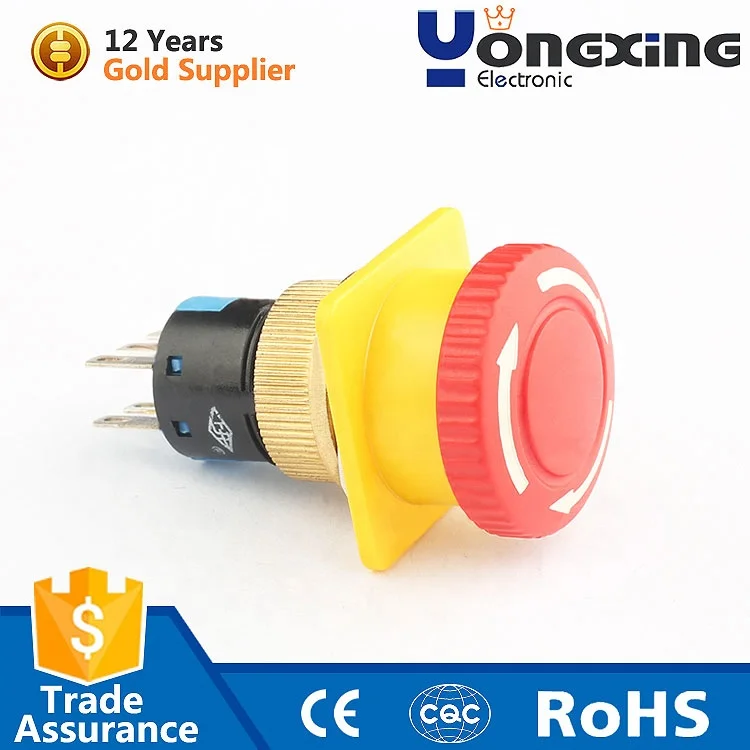

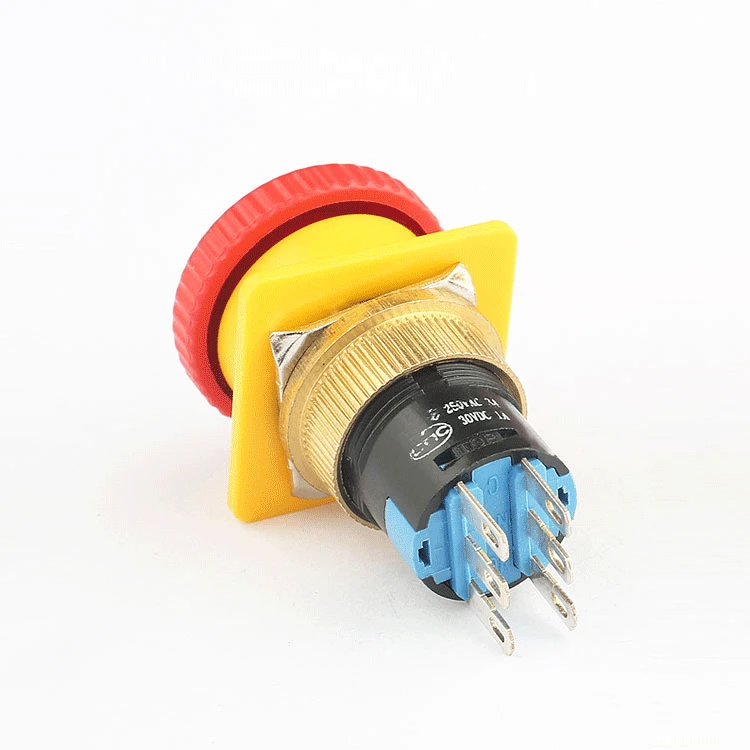

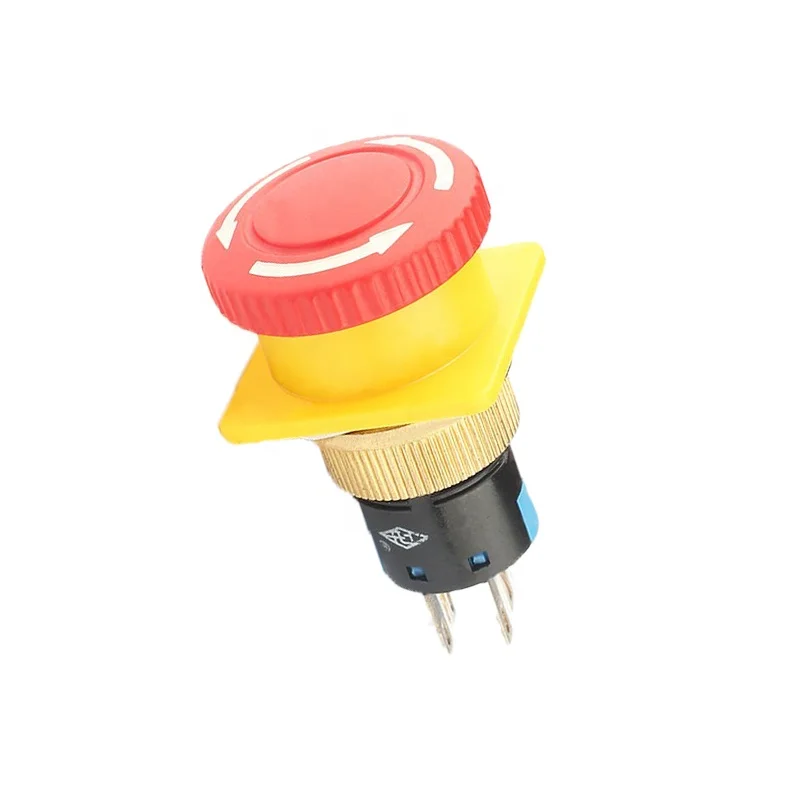

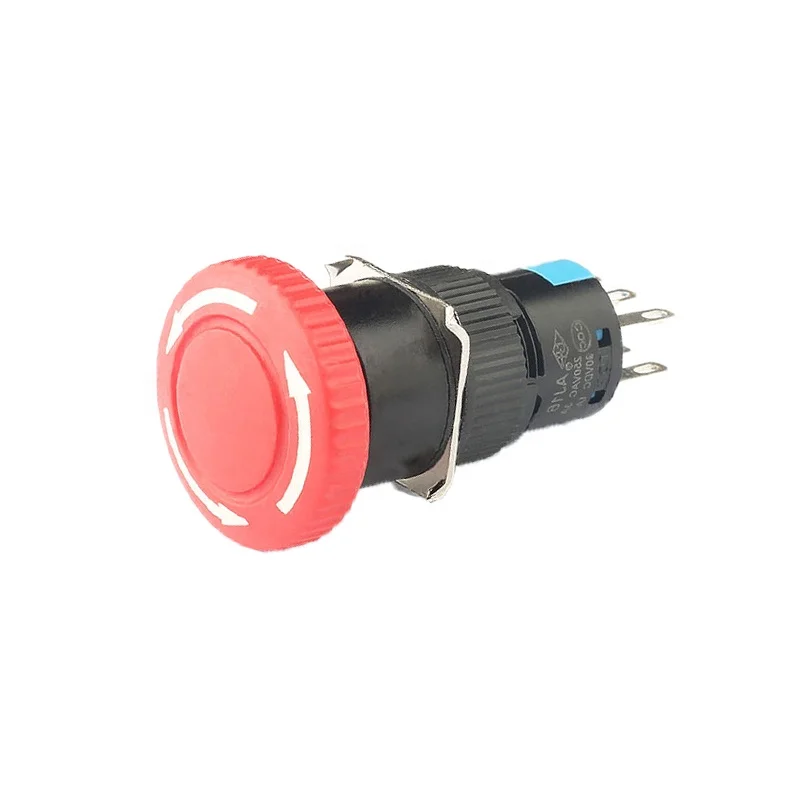

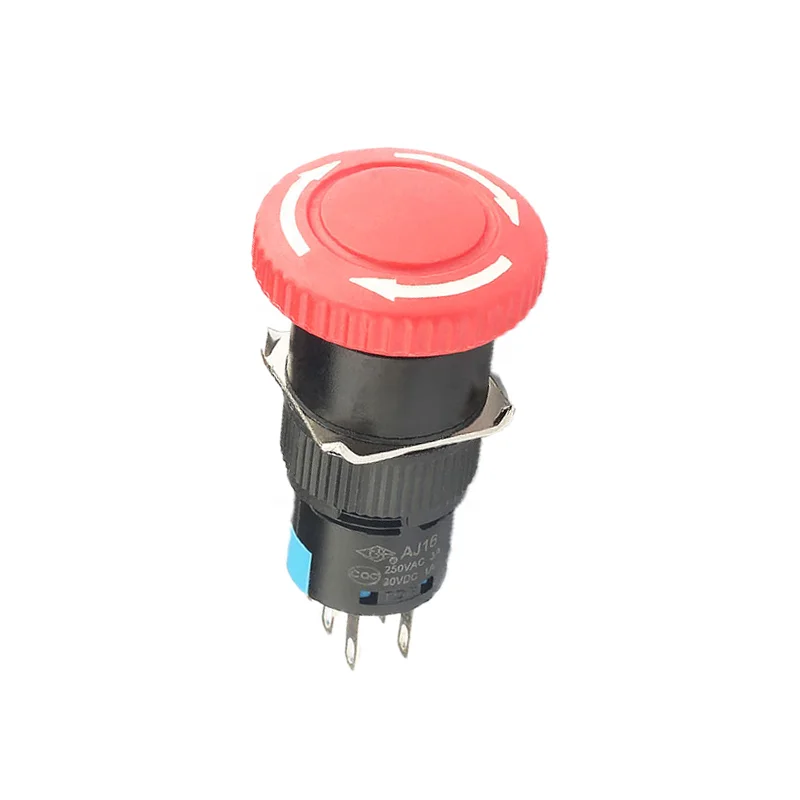

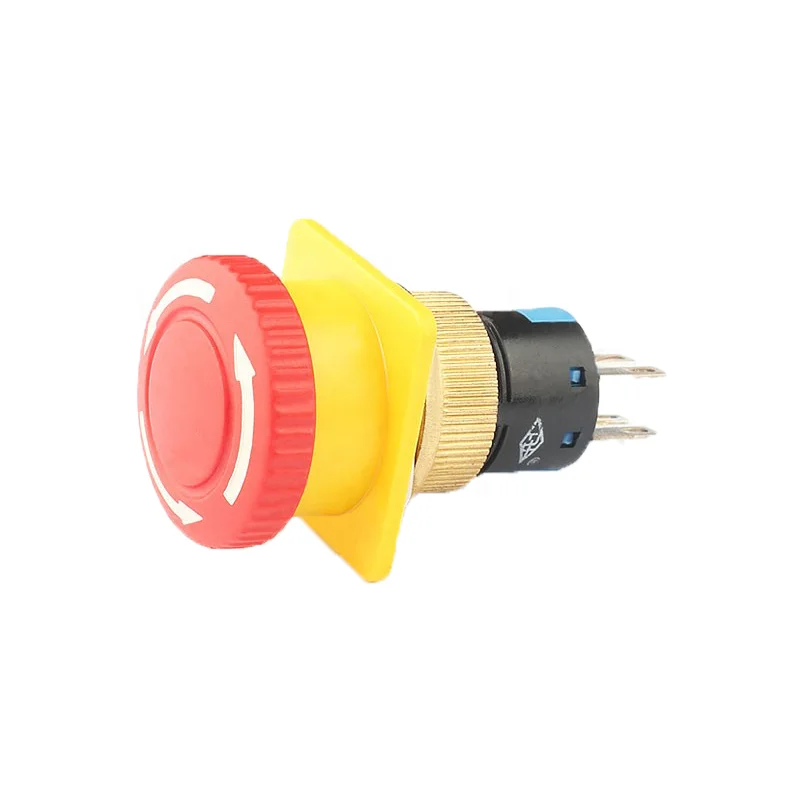

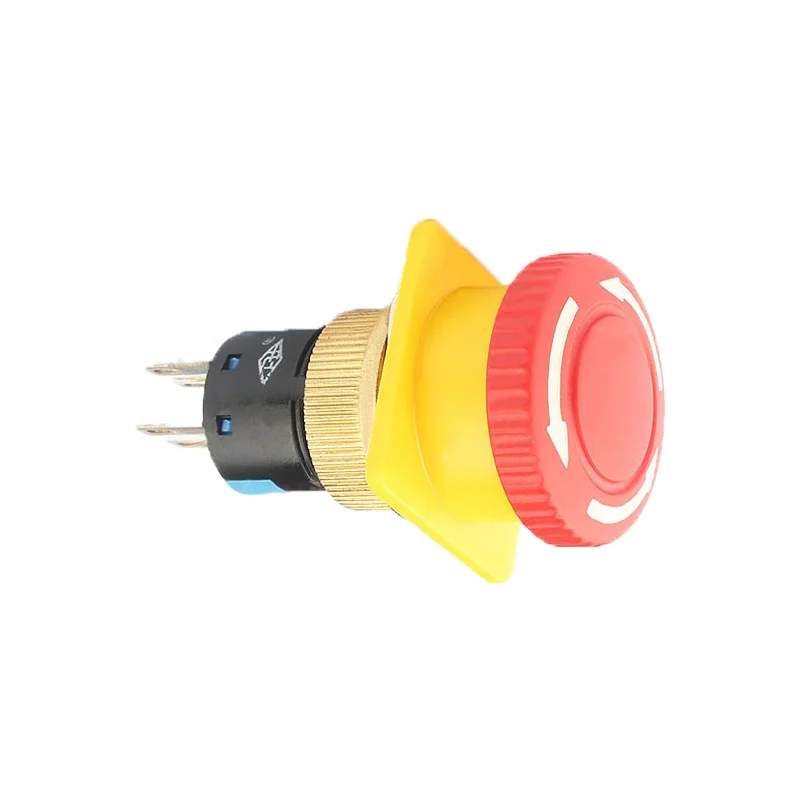

AJ16 3A 250V 16mm Single & Double Pole Emergency Stop Mushroom Button
As a leading factory and wholesale supplier, we present the high-quality AJ16 Emergency Stop Switch. This switch is designed for safety and reliability, making it ideal for emergency stop applications in various industrial settings.
Product Specifications
- Max. Rating Current & Voltage: 3A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Electronic Life (cycles): 25,000
- Mechanical Life (cycles): 50,000
- Operation Temperature: -5°C to +75°C
- Dielectric Strength: 1500V
- IP Code: IP44
- Color: Red
- Switch Type: Emergency Stop Switch
- Pole: SP/DP
Product Advantages
Our AJ16 Emergency Stop Switch stands out with its long mechanical and electronic life, ensuring durability and reliability. With a compact 16mm size, it fits easily into various control panels. The IP44 rating provides protection against dust and splashing water, making it suitable for harsh environments. Additionally, our factory-direct pricing and wholesale availability make it a cost-effective choice for bulk purchases.
After-Sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is ready to assist you with any questions or concerns you may have.
| Max. Rating Current& Voltage | 3A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
|
Electronic Life (cycles) |
25000 |
| Mechanical Life (cycles) | 50000 |
| Operation temperature | -5℃~+75℃ |
| Dielectric Stength | 1500V |
| IP code | IP44 |
Why Choose Our AJ16 Emergency Stop Switch?
Our AJ16 Emergency Stop Switch is designed with safety and reliability in mind. With a long mechanical and electronic life, it ensures consistent performance over time. The compact 16mm size and IP44 rating make it suitable for a wide range of industrial applications, providing protection against dust and splashing water. As a factory and wholesale supplier, we offer competitive pricing and excellent after-sales service.
Key Features
The AJ16 switch features a 3A 250V AC rating, ensuring it can handle high-current applications. Its red color and mushroom button design make it easily identifiable as an emergency stop switch. The SP/DP pole configuration provides flexibility in circuit design.
Applications
This switch is ideal for use in industrial control panels, machinery safety, and emergency shutdown systems. Its durability and reliability make it a preferred choice for applications where safety is paramount.
