China Factory Wholesale 2NO 2NC Illuminated Push Button Switch Supplier

200 - 1,999  pieces
$0.79

2,000 - 4,999  pieces
$0.76

>= 5,000  pieces
$0.73

0 reviews

China Factory Wholesale 2NO 2NC Push Button Switch Supplier

Description

Welcome to our wholesale platform for high-quality push button switches! As a factory and supplier in Shanghai, China, we offer the KD2-B21L model push button switch, a perfect choice for your industrial and electronic needs. This switch features 2NO 2NC contacts, ensuring versatile connectivity options. With a maximum rating of 3A 250V AC, it can handle a wide range of electrical loads. The switch has an IP40 protection level, safeguarding it against dust and limited water ingress. It boasts a mechanical life of 50,000 cycles and an electrical life of 10,000 cycles, providing long-lasting reliability. The built-in LED illuminates the switch, making it easy to locate and operate in low-light conditions. Certified with CQC, CE, and ROHS, this switch meets international quality and safety standards. Our switch stands out with its self-locking operation type, ensuring stable performance. We offer competitive wholesale prices and excellent customer service, making it a cost-effective solution for your projects. Don’t miss out on this opportunity to get high-quality push button switches directly from the factory!
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
mechanical life(cycles)
50000
dielectric strength
1500V
operating temperature
25T55
IP code
IP40
max.rating current & voltage
3A 250V AC

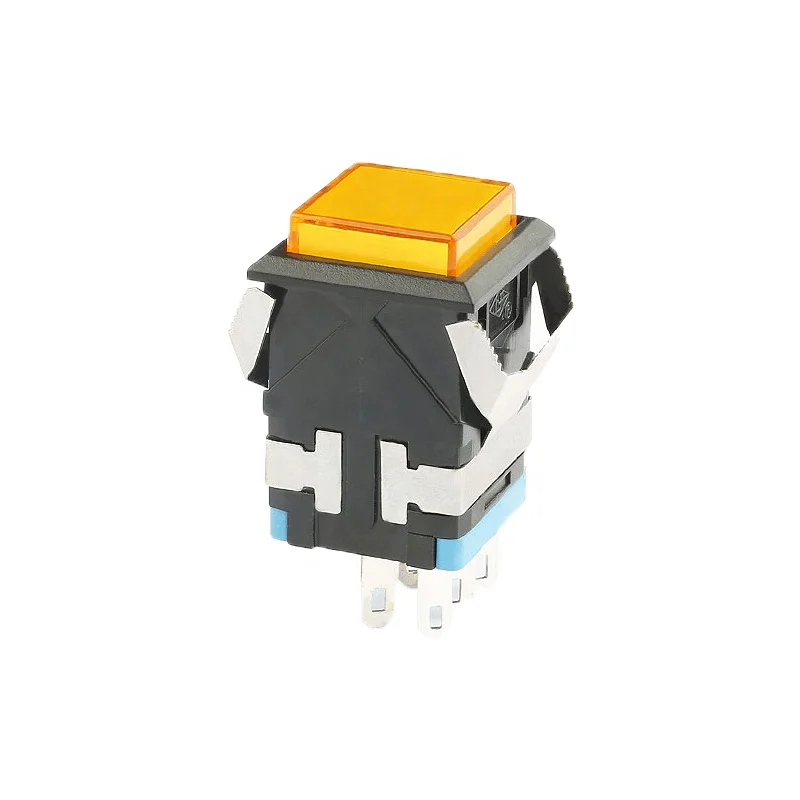

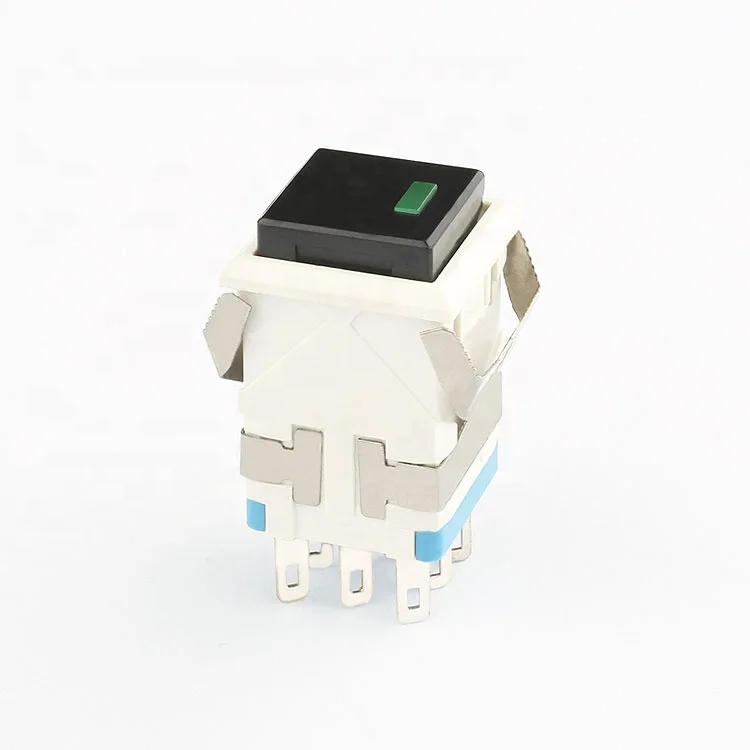

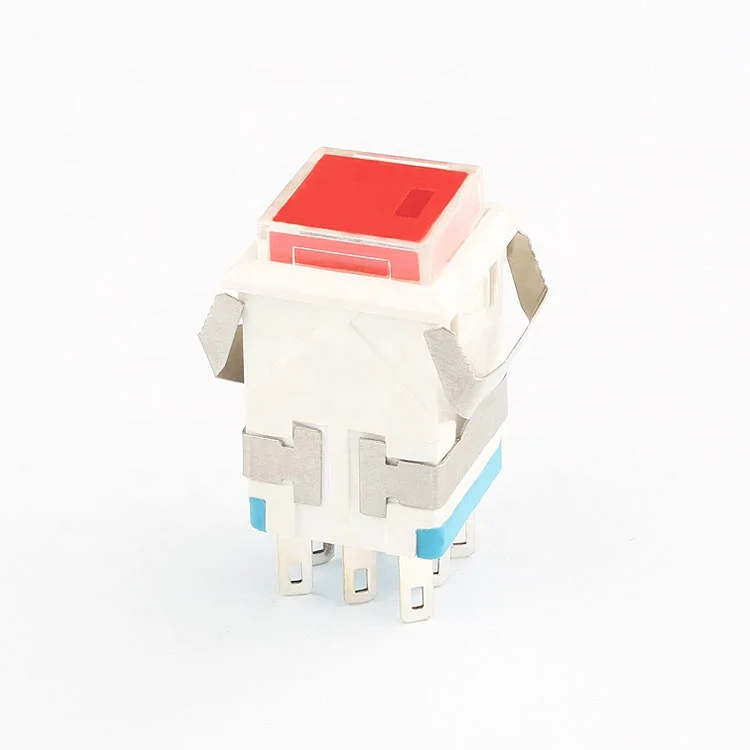

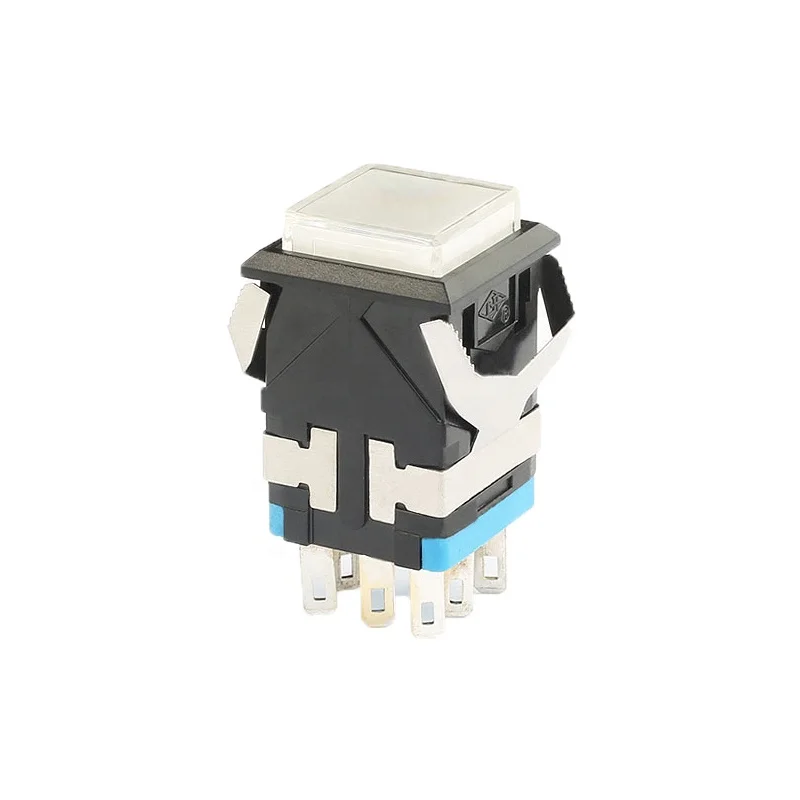

Electronic component product image for cross-border e-commerce


Why Choose Our Push Button Switch?

Our push button switch is designed with 2NO 2NC contacts, providing flexible connectivity for various applications. The self-locking operation ensures stable performance, while the LED illumination makes it easy to use in low-light environments. With a long mechanical and electrical life, it offers reliable operation over time.

What Are the Key Specifications?

The switch has a maximum rating of 3A 250V AC, an IP40 protection level, and a 17mm size with a 17x17mm mounting hole. These specifications make it suitable for a wide range of industrial and electronic uses.

What Sets Our Product Apart?

As a factory and supplier, we offer competitive wholesale prices and excellent customer service. Our switch is certified with CQC, CE, and ROHS, ensuring high quality and safety. The built-in LED and self-locking operation are unique features that enhance its usability and reliability.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KD2-B21L

LED

Yes

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC

Certificate

CQC CE ROHS

Operation type

Self-locking

Function

2NO 2NC

Mounting hole size

17x17mm

Mechanical life

50,000 cycles

Electrical Life

10,000 cycles

Certification

CQC

Protection Level

IP40
