Description
Key specifications include a maximum current rating of 1A and a maximum voltage rating of 250V AC. The contact resistance is ≤50mΩ, and the insulation resistance is 100MΩ. With a dielectric strength of 1,500V, these switches are built to last. The electronic life is 10,000 cycles for momentary operation and 5,000 cycles for alternate operation, while the mechanical life is 50,000 cycles for momentary and 10,000 cycles for alternate. They are certified by CQC and CE, ensuring compliance with international standards.
Our push button switches operate within a temperature range of -25°C to +55°C and have an IP41 protection level, making them suitable for various environments. What sets our switches apart is our commitment to customization. With 60 senior engineers, an injection molding workshop, an independent plant, experimental equipment, and a perfect development process, we can tailor button switches to meet your specific needs.
As a factory-direct supplier, we offer competitive pricing and fast delivery times. Our dedicated customer service team is always ready to assist you with any inquiries or concerns. Choose us for your push button switch needs and experience the difference in quality and service.
| Max. Rating Current & Voltage |
1A 250V AC |
| Contact Resistance | ≤50mΩ push button switch |
| Insulation Resistance | 100MΩ 16mm illuminated push button switches |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:10,000 Alternate:5,000 |
| Mechanical life(cycles) | Momentary:50,000 Alternate:10,000 |
| Certification |
CQC , CE |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 momentary push button switch |
Why Choose Our Push Button Switch?
Our push button switch stands out due to its high quality, customization options, and competitive pricing. As a factory-direct supplier, we ensure that our switches meet the highest standards while offering you the best value for your money.
What Are the Key Features?

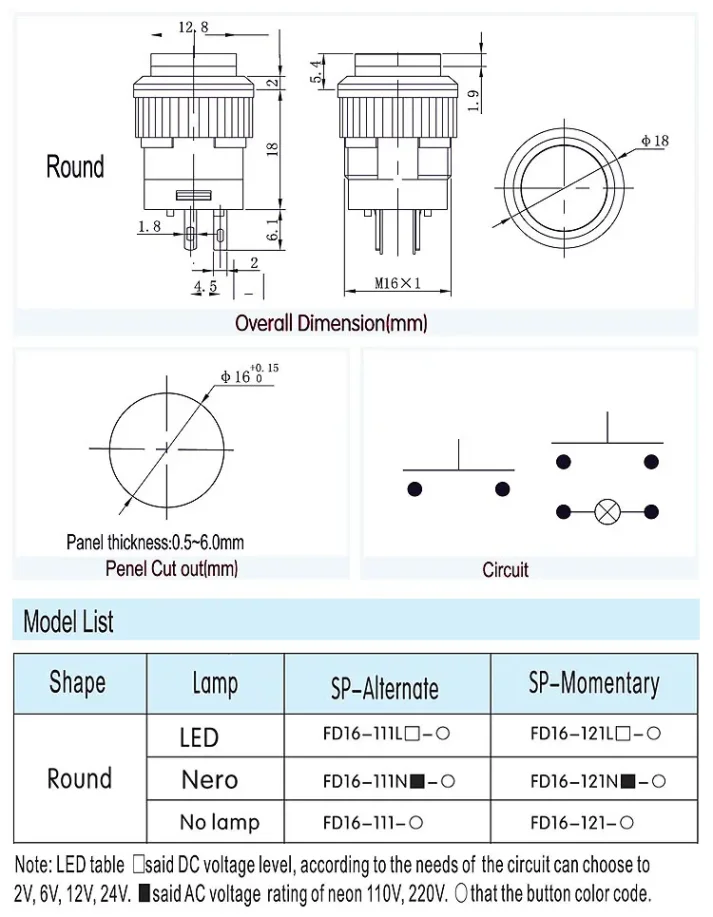

Key features include a 4 Pin design, 1A current rating, 16mm size, and LED illumination. The switch is also customizable to meet your specific needs, with options for momentary or alternate operation.
How Does Our Switch Compare to Others?
Our switch offers superior quality, durability, and customization options compared to similar products on the market. With a long electronic and mechanical life, it ensures reliable performance over time. Additionally, our factory-direct pricing makes it a cost-effective choice for your needs.
