Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD11-13T-CA1H-B-W-120
|
|
Current Rating
|
10A (single load:5A)
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPTT
|
|

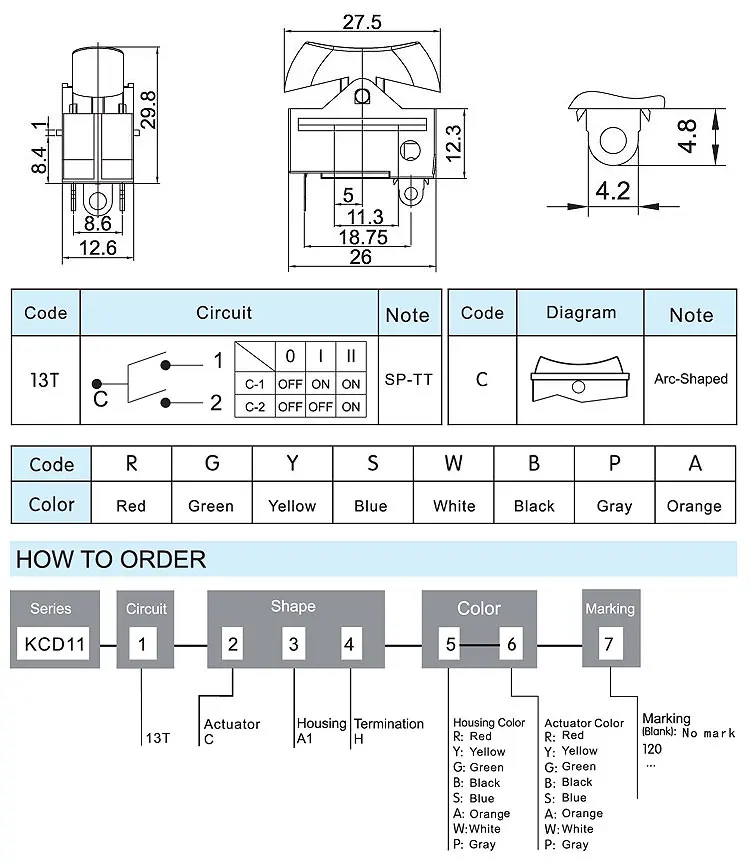

Dimension Code
|
A1
|
|
Contact Piece Code
|
H
|
Why Choose Our 3-Pin Rocker Switch?
Our 3-pin rocker switch stands out for its durability and versatility. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures reliable performance over time. The SPTT circuit design offers enhanced functionality, making it suitable for a wide range of electric equipment.
What Are the Key Features?
Key features include a 10A (single load: 5A) current rating and 250V AC voltage rating, ensuring compatibility with various devices. The switch also boasts a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, guaranteeing optimal safety and performance. Available in multiple colors, it adds a touch of style to your equipment.
Why Buy from Us?
As a direct factory supplier, we offer wholesale pricing without compromising on quality. Our switches are manufactured to the highest standards, ensuring they meet or exceed industry requirements. Choose us for unbeatable value, reliable performance, and excellent customer service.
