DPDT Illuminated Rocker Switch | Wholesale Supplier Factory

$0.35
0 reviews

DPDT Rocker Switch | Factory Direct Supplier | Wholesale Available

Description

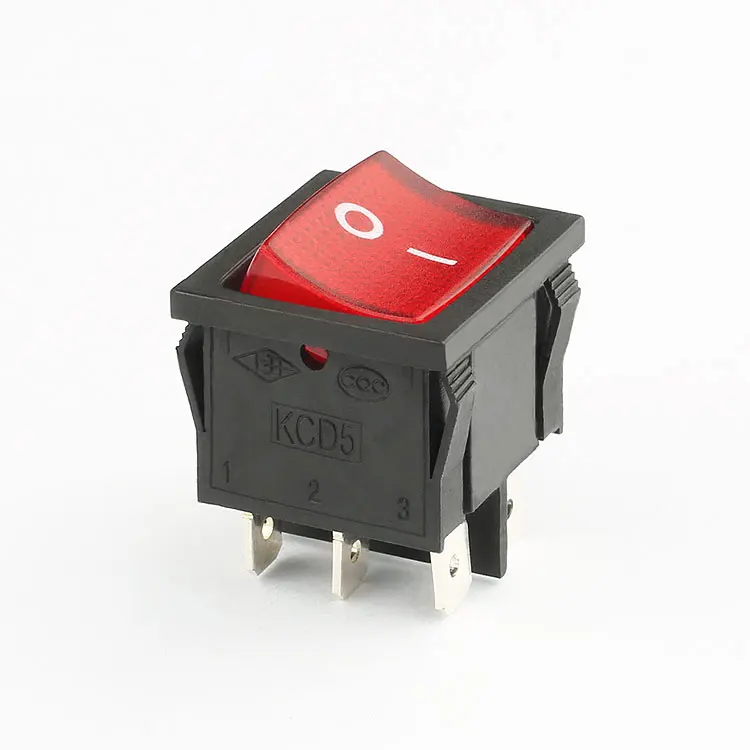

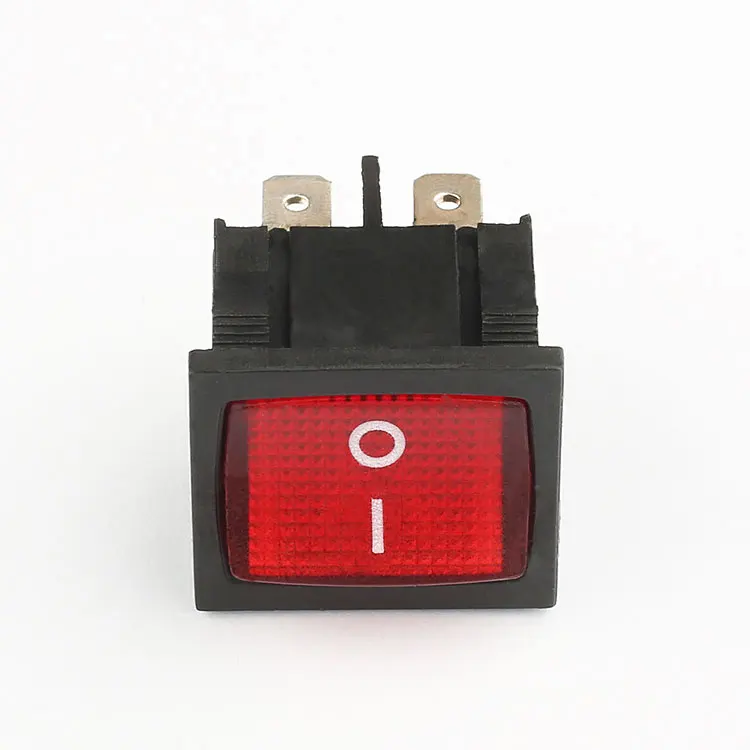

Introducing our premium DPDT Illuminated Rocker Switch, a high-quality electrical component designed for a wide range of applications. As a factory direct supplier and wholesaler, we offer this switch at competitive prices without compromising on quality. The switch features a DPDT circuit configuration, making it suitable for complex electrical circuits. It is rated for a maximum current of 10A and a maximum voltage of 125V AC, ensuring reliable performance in various environments. The switch comes with a red illuminated button, providing clear visibility in low-light conditions. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, this switch offers exceptional durability and longevity. It is also CE, CQC, and ROHS certified, guaranteeing compliance with international safety standards. The switch is panel mountable, making it easy to install in various equipment. Additionally, it supports multiple lamp voltages (6V/12V/24V/110V/220V etc.), offering flexibility in different applications. Our switch stands out from the competition with its high contact resistance (≤50mΩ) and insulation resistance (≥1000MΩ), ensuring optimal electrical performance. Choose our DPDT Illuminated Rocker Switch for your next project and experience the difference in quality and reliability.
item
value
Place of Origin
Shanghai, China
Brand Name
SK(shangkai) Yongxing
Model Number
KCD5-22N-CA2A-B-R-01-220V
Current Rating
10A
Voltage Rating
125V AC
Mechanical Life
50000 Cycles
Contact Resistance
≤50mΩ
Insulation Resistance
≥1000MΩ
Dielectric Strength
1500VAC 1 Minute
Electronic Life (cycles)
10,000
Certificate
CQC CE ROHS
Circuit
DPDT

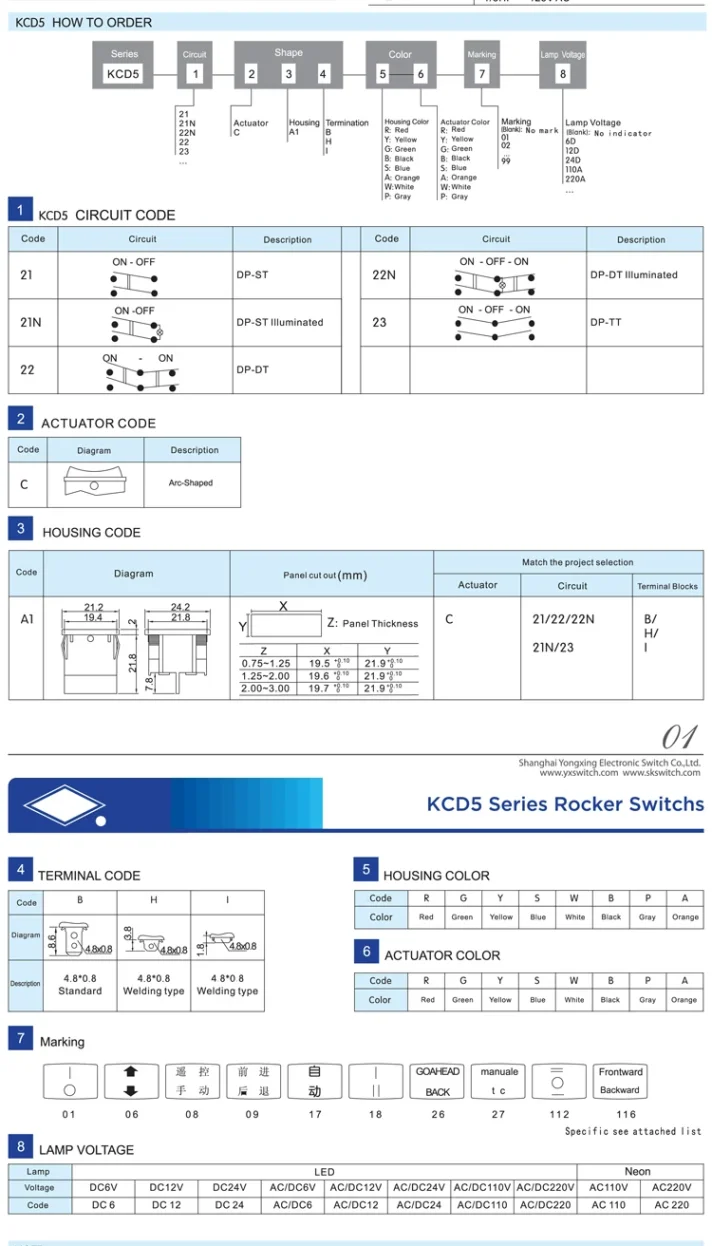

Dimension Code
A2 (21.2×23.8×24.2 , 19.4×21.8×21.8)
Contact Piece Code
A (8 length, 4.8×0.8 standard )
Lamp voltage
6v/12v/24v/110v/220v etc.
Switch Function
ON ON Illuminated

Electronic component for cross-border e-commerceElectronic device part for e-commerceElectronic accessory for cross-border salesElectronic gadget for e-commerce platformElectronic product for cross-border e-commerce


Key Features and Benefits

Our DPDT Illuminated Rocker Switch is designed to meet the demands of various electrical applications. With its high current and voltage ratings, it ensures reliable performance in complex circuits. The illuminated button provides clear visibility, making it ideal for use in low-light environments. The switch's long mechanical and electronic life ensures durability, reducing the need for frequent replacements.

Why Choose Our Switch?

As a factory direct supplier and wholesaler, we offer this switch at competitive prices. It is CE, CQC, and ROHS certified, guaranteeing compliance with international safety standards. The switch's high contact and insulation resistance ensure optimal electrical performance, setting it apart from competitors. Additionally, its panel mountable design makes it easy to install in various equipment.

Applications

This switch is suitable for a wide range of applications, including industrial equipment, marine applications, and home appliances. Its multi-voltage lamp support offers flexibility in different electrical setups, making it a versatile choice for various projects.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

10A

Max. Voltage

125V AC

Place of Origin

Shanghai, China

Brand Name

Sk(shangkai) yongxing

Model Number

KCD5-22N-CA2A-B-R-01-220V

Whether the smart

NO

Mechanical Life

50000 Cycles

IP level

IP40

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Dielectric Strength

1500VAC 1 Minute

Electronic Life (cycles)

10,000

Certificate

CQC CE ROHS

Circuit

Dpdt

Switch Function

ON ON Illuminated
