Factory Direct 12mm 1NO1NC Momentary Push Button Switch Supplier

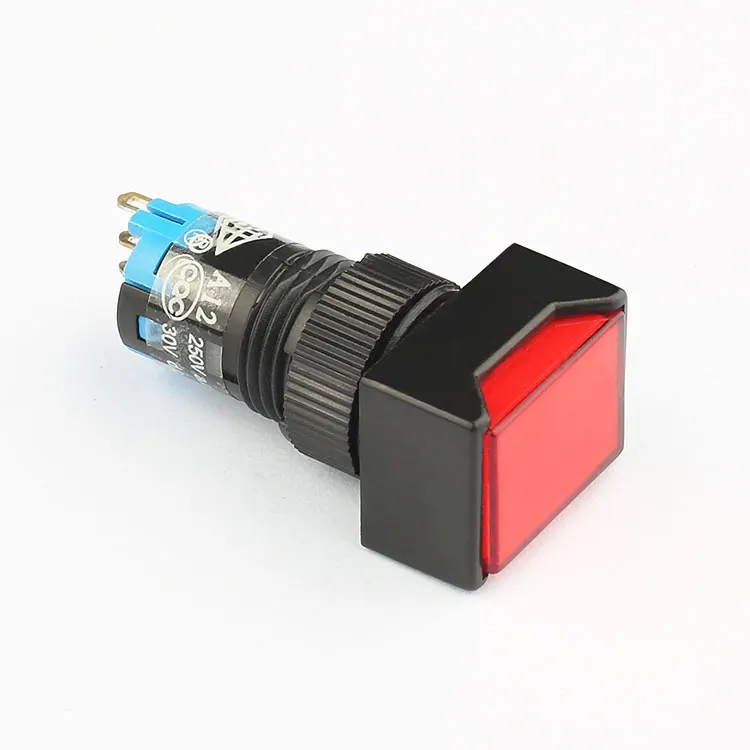

Our 12mm 1NO1NC momentary rectangular plastic push button switch is a high-quality product directly from our factory. As a professional supplier, we offer competitive wholesale prices. This switch is designed with precision and durability in mind, featuring a compact 12mm size that fits seamlessly into various applications. It operates at a maximum current of 3A and a maximum voltage of 250V, ensuring reliable performance. The switch has an IP40 ingress protection rating, making it suitable for indoor use. With a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ, it guarantees efficient electrical conductivity and safety. The dielectric strength of 1500V provides additional protection against electrical faults. The operating temperature range of 5°C to 75°C ensures it can withstand a wide range of environmental conditions. With a mechanical life of 50,000 cycles and an electrical life of 25,000 cycles, this switch offers long-lasting reliability. It also includes an indicator with a voltage of 24V and a current of ≤15mA, providing clear visual feedback. Our switch stands out from competitors with its high-quality construction, competitive pricing, and excellent after-sales service. We are committed to providing the best products and support to our customers.
