Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
5T55
|
|
dielectric strength
|
1500V
|
IP code
|
IP40
|

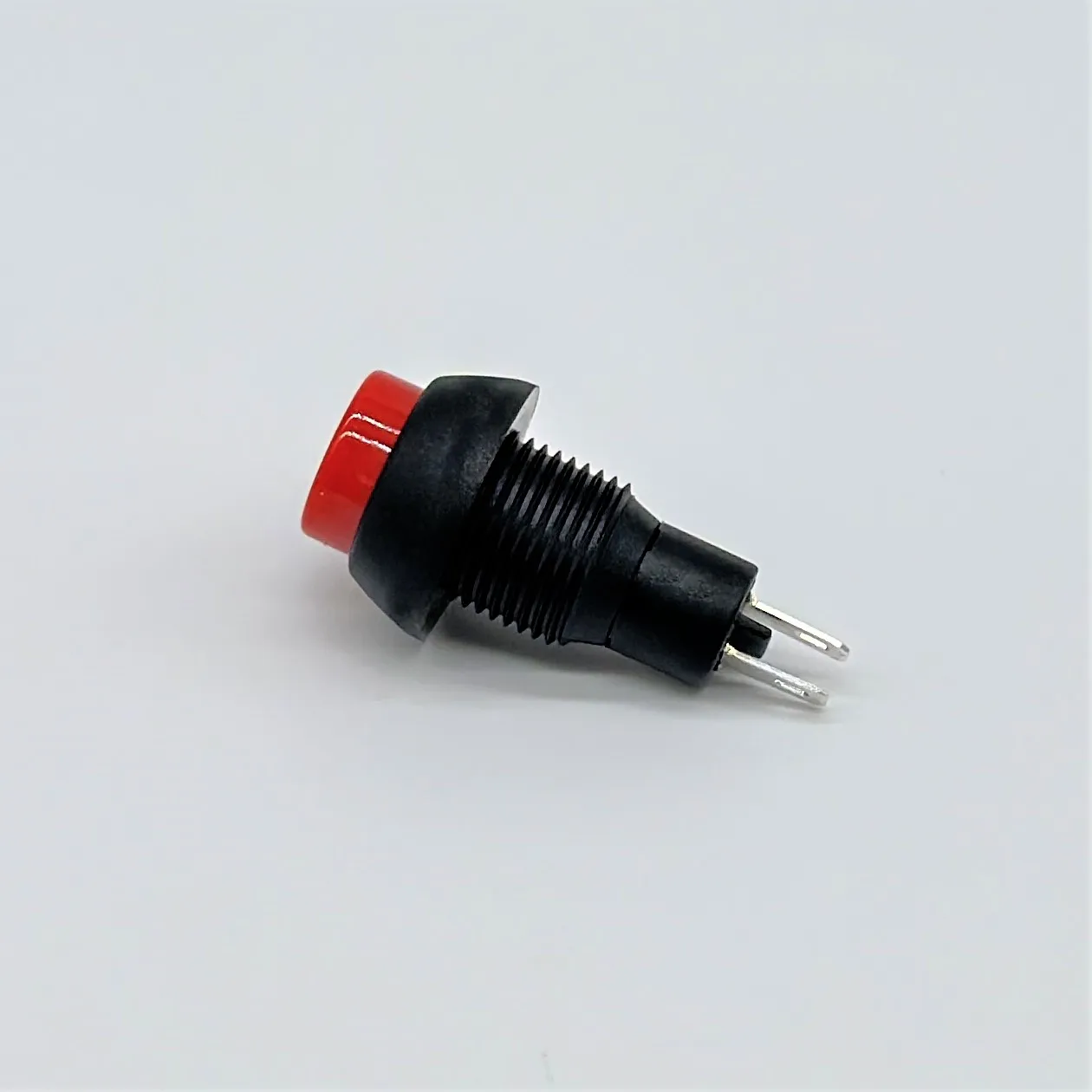

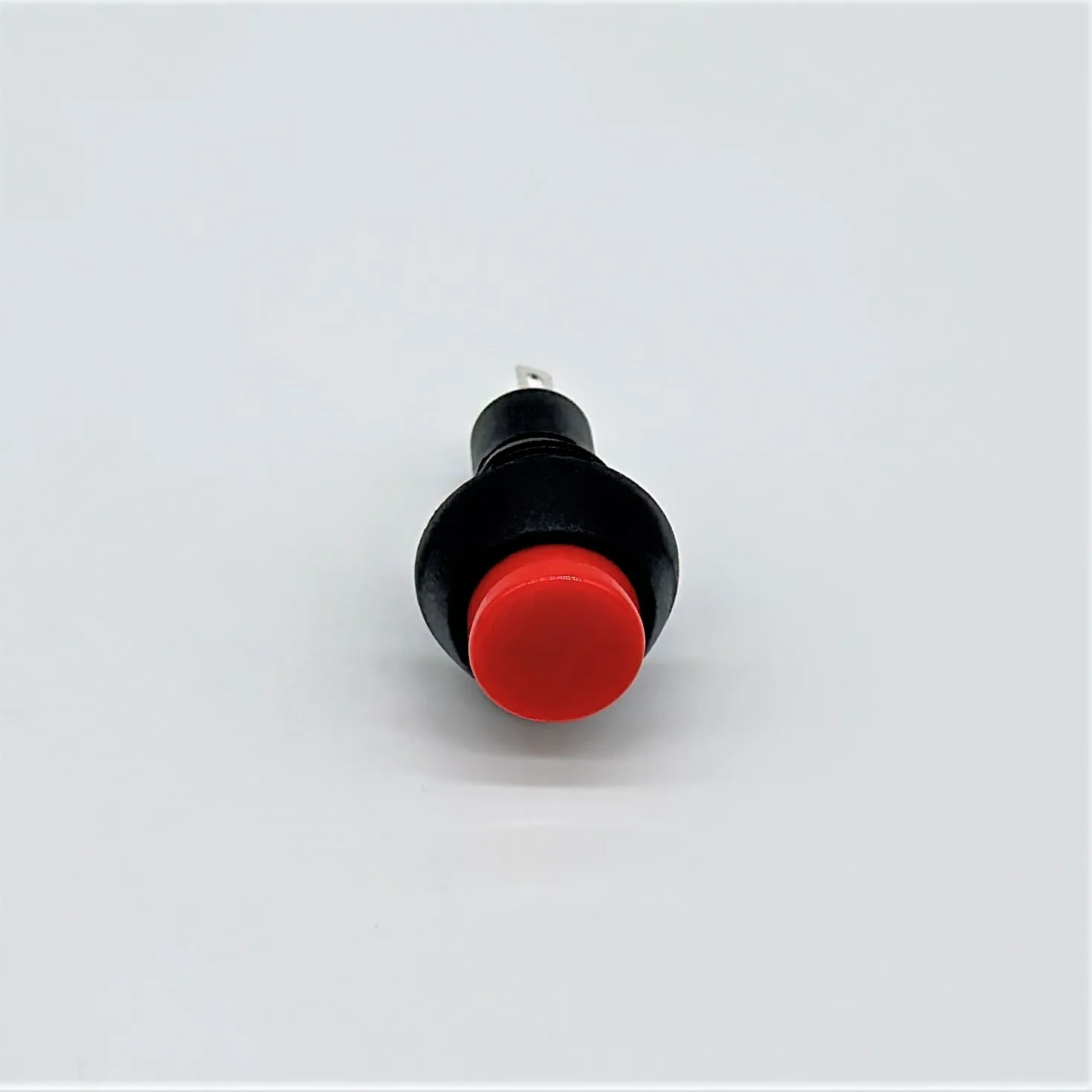

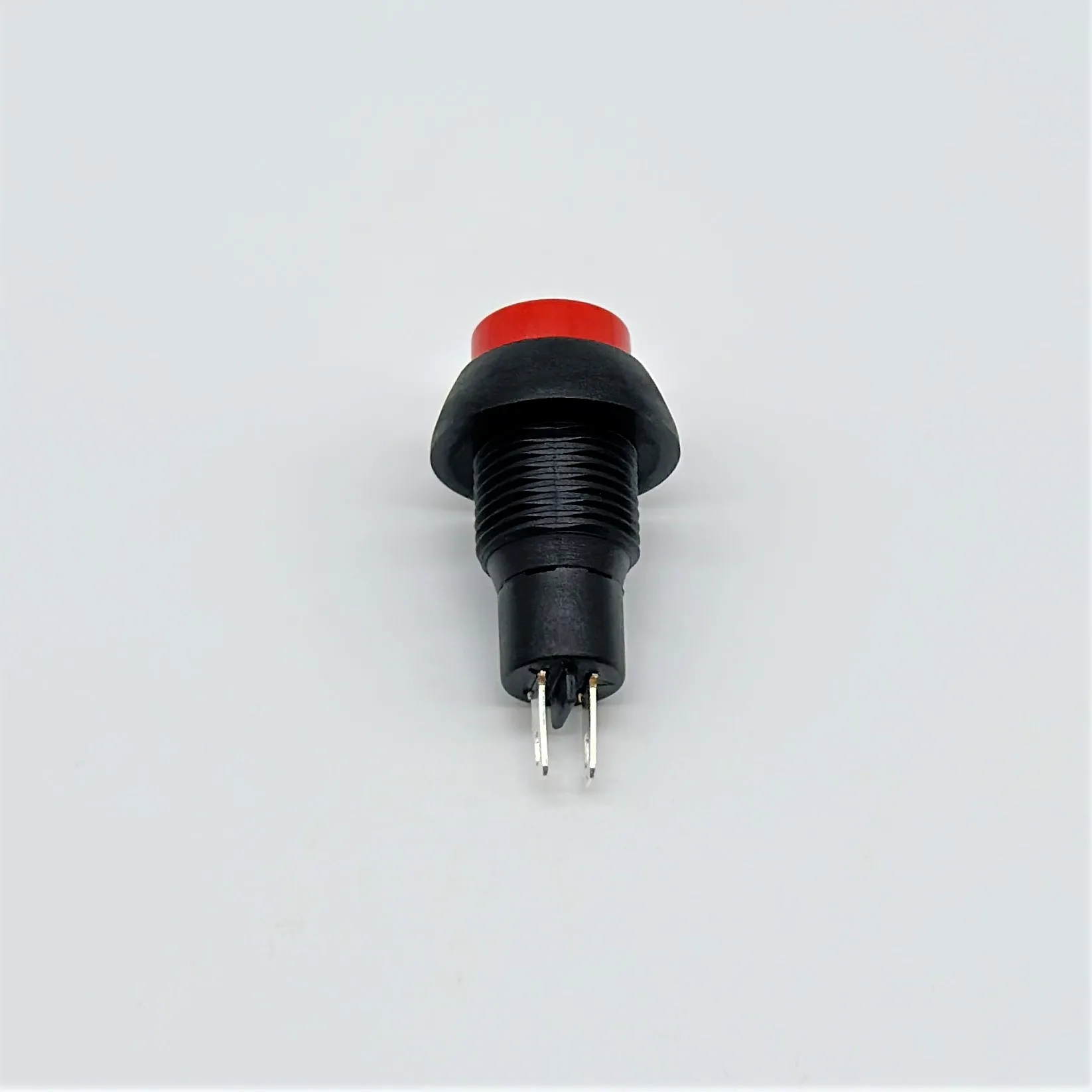

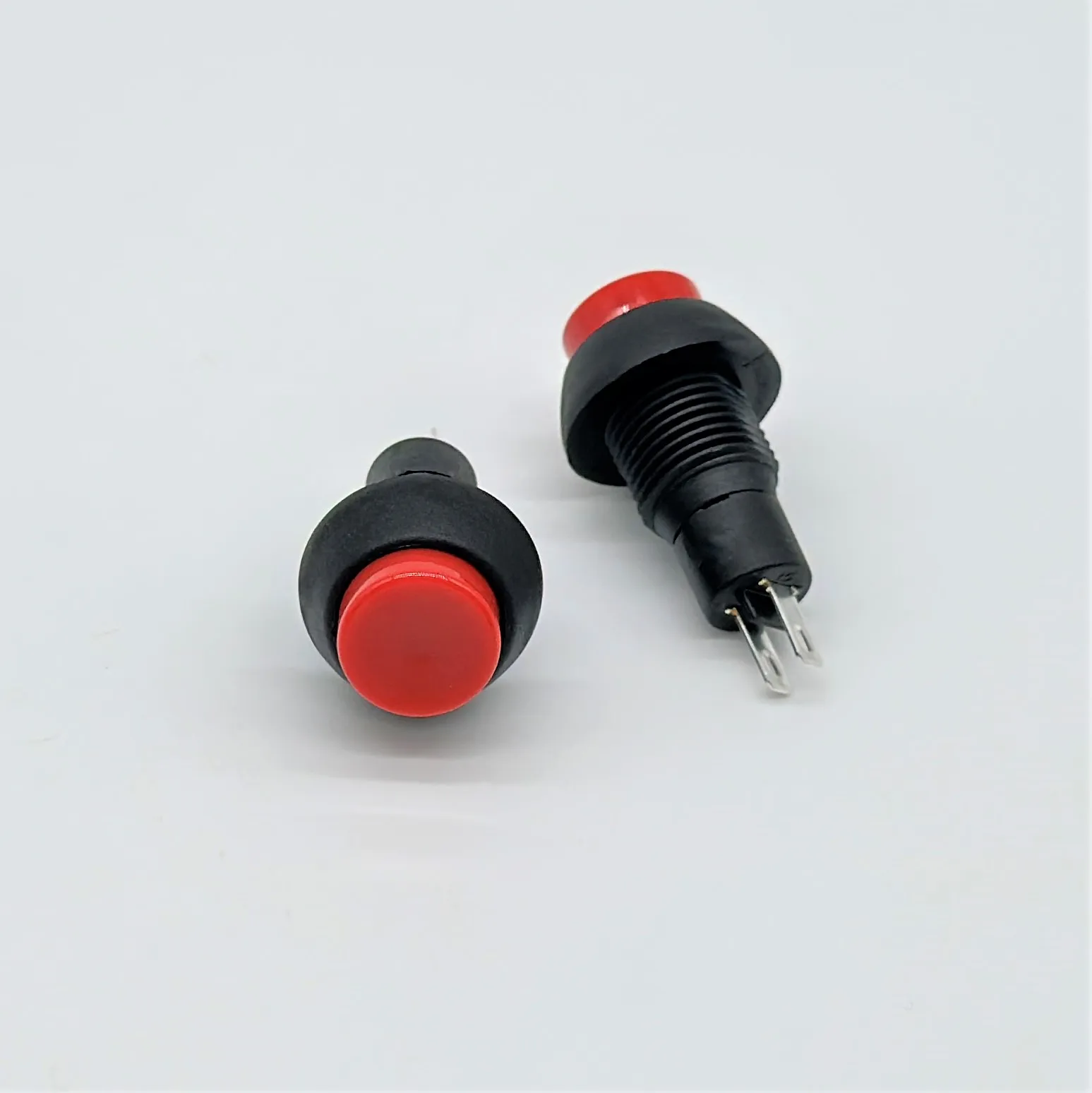

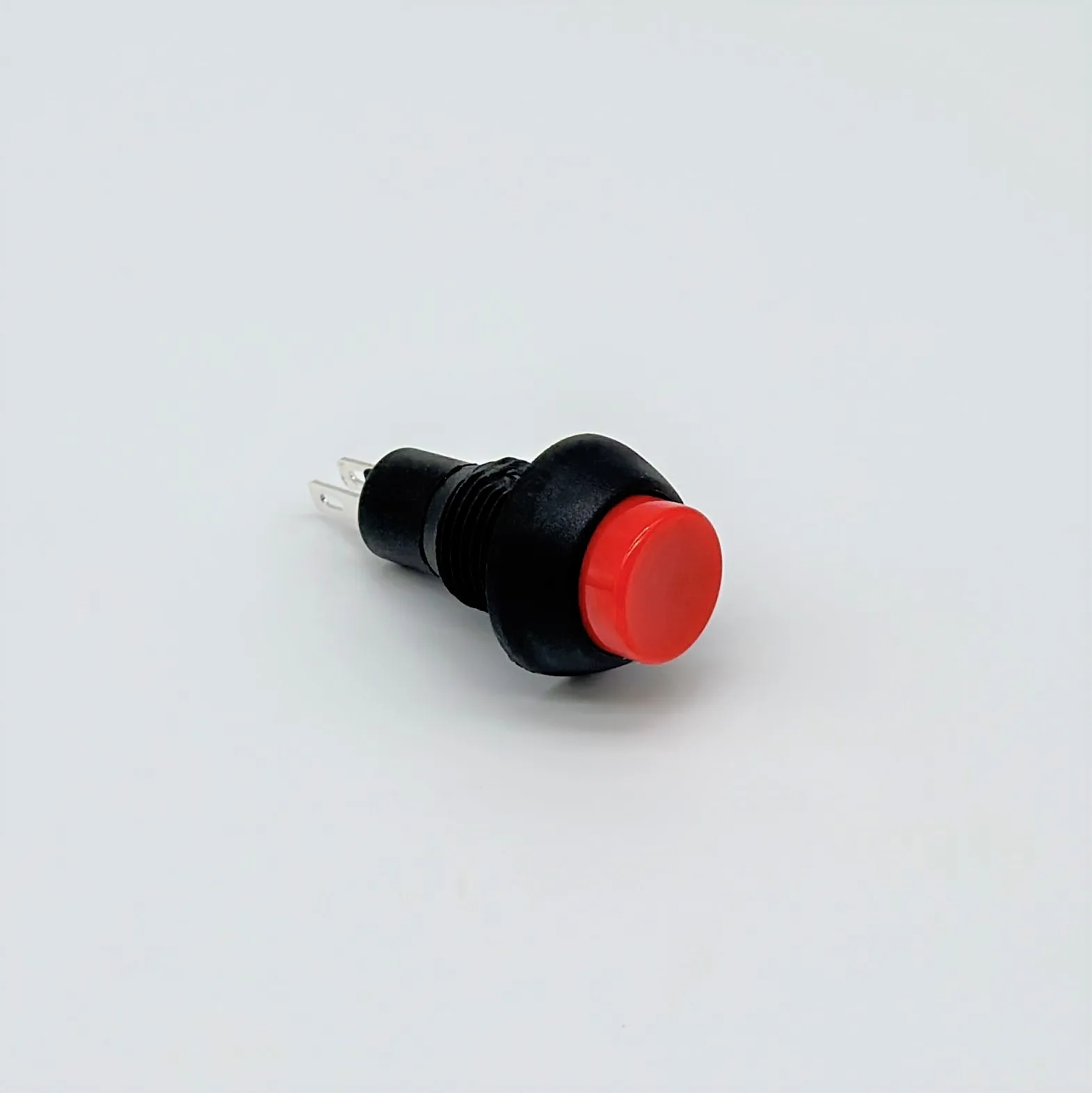

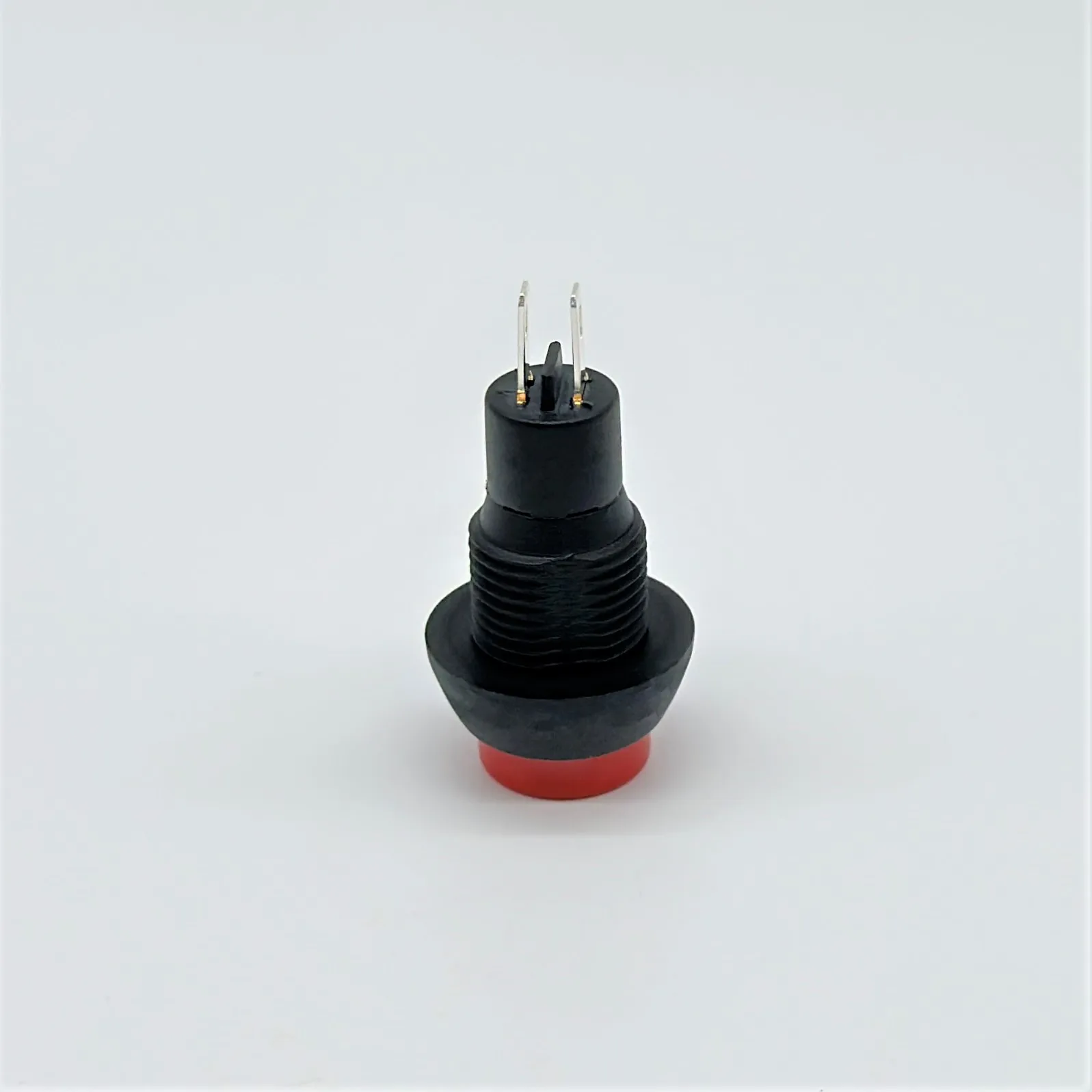

Why Choose Our 12mm Red Miniature Push Button Switch?
Our 12mm Red Miniature Push Button Switch stands out for its durability, reliability, and affordability. As a factory-direct supplier, we eliminate the middleman, offering you wholesale prices without compromising on quality. The switch's plastic housing and red button design make it both robust and visually striking, perfect for a variety of applications.
What Are the Key Features of Our Switch?
Our switch boasts a maximum current of 1A and a maximum voltage of 250V AC, ensuring it can handle a wide range of electrical loads. With a contact resistance of ≤50mΩ and insulation resistance of ≥100mΩ, it provides excellent electrical performance. The dielectric strength of 1500V and IP40 protection level further enhance its reliability and safety.
What Are the Benefits of Buying from Us?
As a wholesale supplier, we offer competitive prices and bulk discounts, making it cost-effective for your business. Our switch is CQC, CE, and ROHS certified, ensuring it meets international quality and safety standards. Choose us for a hassle-free purchasing experience and superior after-sales service.
