Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T55
|
|
IP code
|
IP40
|
max.rating current & voltage
|
1A 250V AC
|

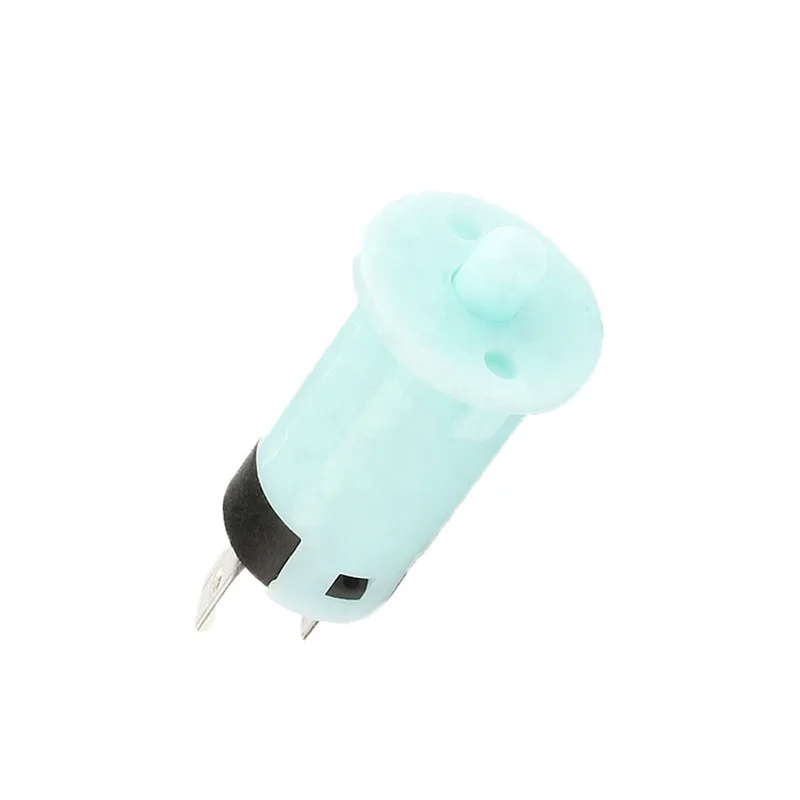

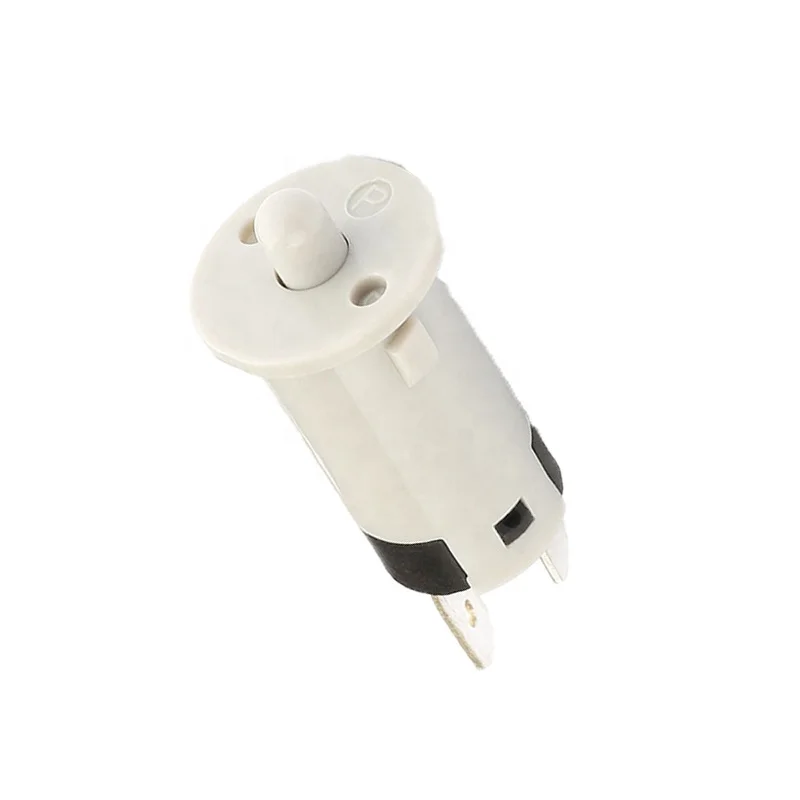

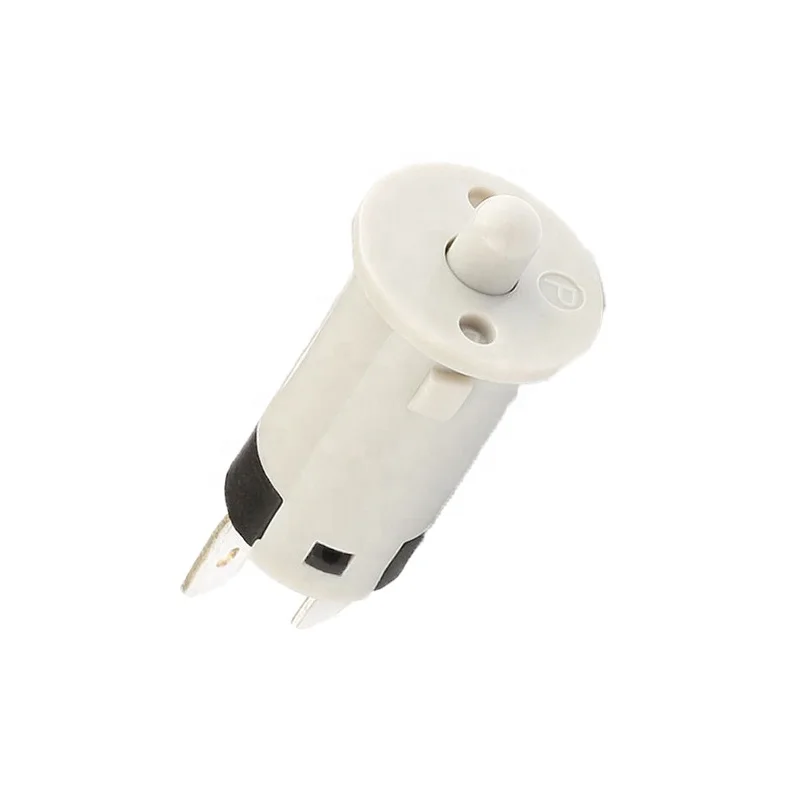

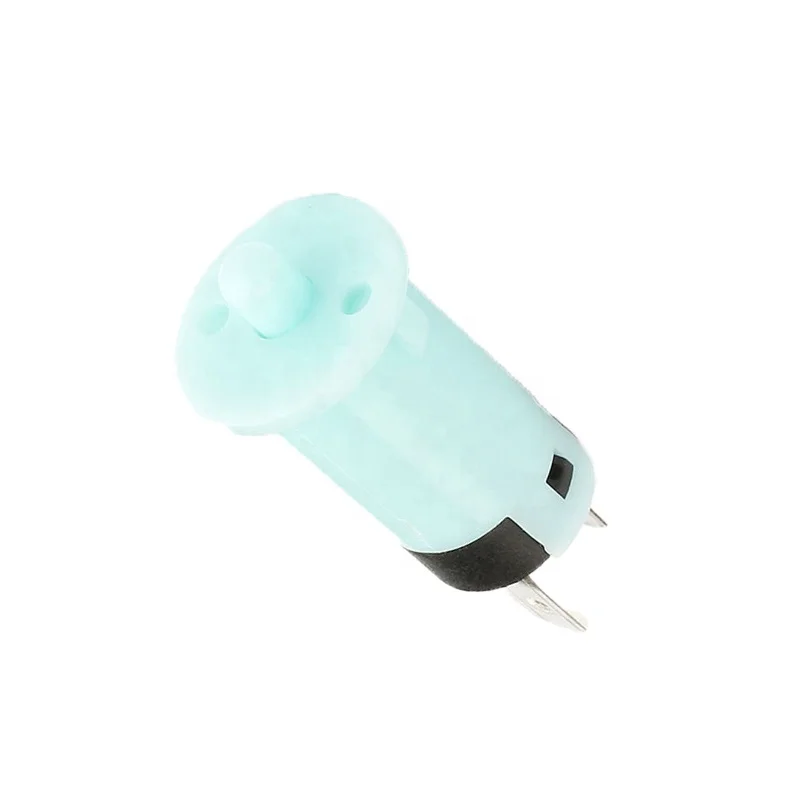

Why Choose Our 12mm Push Button Switch?
Our 12mm Push Button Switch is designed for durability and reliability, with a contact resistance of ≤50MΩ and insulation resistance of ≥100MΩ, ensuring safe and efficient operation. Its long electronic and mechanical life cycles (10,000 and 50,000 cycles respectively) make it a cost-effective choice for refrigerator doors and other electric appliances.
What Are the Key Features?
Key features include a dielectric strength of 1500V, an operating temperature range of 25°C to 55°C, and an IP40 protection level. Available in multiple cap colors, it offers versatility in design. With a maximum rating of 1A 250V AC, it meets the demands of various applications.
Why Buy from Us?
As a factory direct supplier, we offer wholesale pricing without compromising on quality. Our switches undergo rigorous testing to ensure they meet the highest standards. Enjoy reliable performance, excellent after-sales service, and a competitive edge in the market when you choose our products.
