Factory Direct 16mm KA Series Waterproof Push Button Switch Supplier

200 - 1,999  pieces
$0.33

2,000 - 4,999  pieces
$0.30

>= 5,000  pieces
$0.27

0 reviews

Factory direct 16mm KA Series waterproof push button switch supplier, wholesale options.

Description

Our factory-direct 16mm KA Series Waterproof Push Button Switch is a top-notch choice for electric appliances. As a reliable supplier, we offer wholesale options at competitive prices. This switch is crafted from high-quality plastic, ensuring durability and longevity. It boasts an IP65 protection level, making it highly waterproof and suitable for various environments. With a maximum rating current of 3A and voltage of 250V AC, it can handle demanding electrical loads. The contact resistance is ≤50mΩ, and the dielectric strength is 1500V, guaranteeing safe and reliable operation. The mechanical life reaches 50,000 cycles, and the electronic life is 10,000 cycles, showcasing its robustness. It operates within a temperature range of -25℃ to 85℃, adapting to different climates. The switch comes in multiple colors including red, yellow, green, blue, and white, allowing for customization to match your appliance design. Certified with CQC and CE, it meets international quality standards. Our competitive edge lies in our factory-direct pricing, ensuring you get the best value for your money. We also provide excellent after-sales service, including technical support and warranty coverage. Choose our push button switch for a reliable, cost-effective, and customizable solution.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
mechanical life(cycles)
50000
dielectric strength
1500V
operating temperature
25T85
IP code
IP65
max.rating current & voltage
3A 250V AC

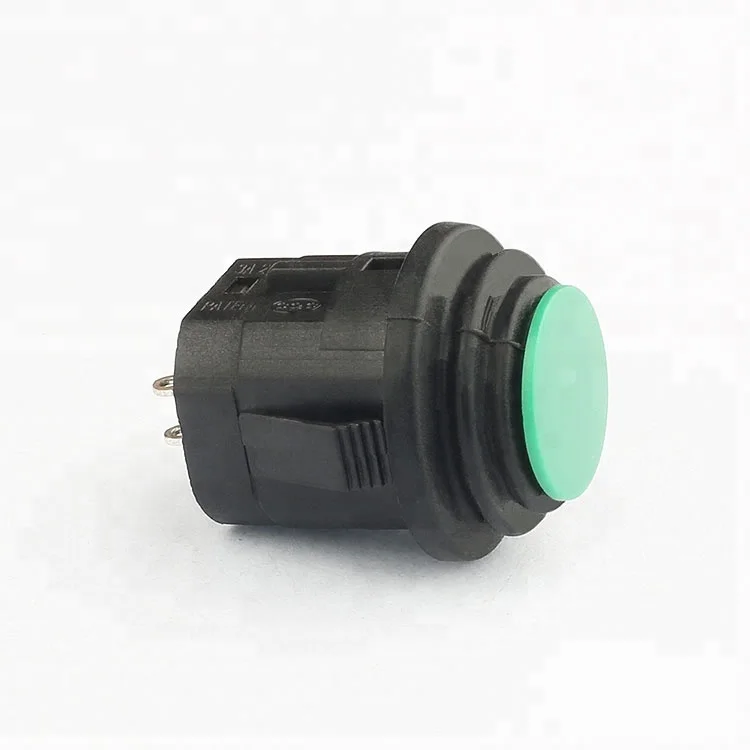

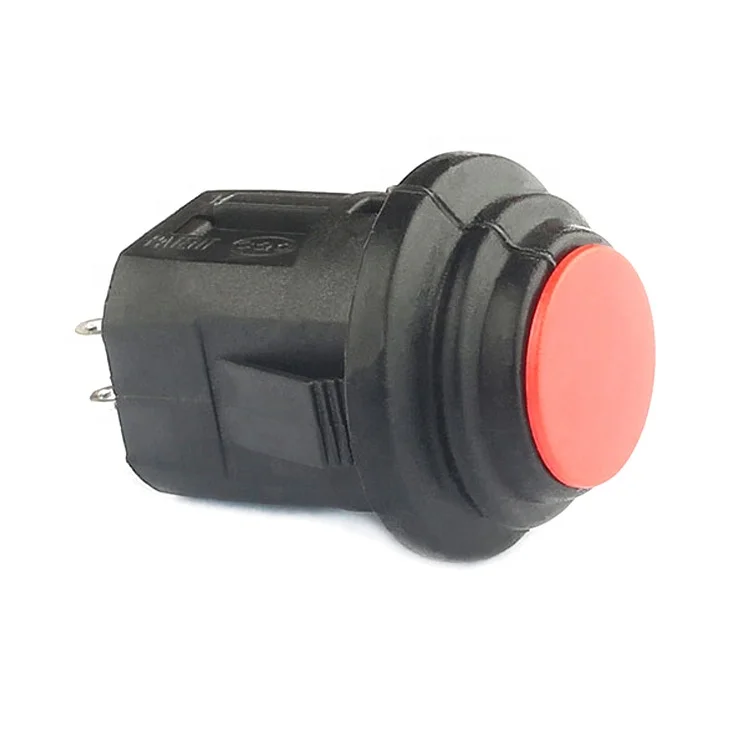

Electronic component product display imageDetail shot of electronic device component


Why Choose Our 16mm KA Series Waterproof Push Button Switch?

Our 16mm KA Series Waterproof Push Button Switch stands out due to its factory-direct pricing, ensuring you get the best value. Crafted from high-quality plastic, it offers durability and a long lifespan. With an IP65 protection level, it's perfect for use in various environments, providing reliable performance.

What Are the Key Specifications of This Switch?

This switch has a maximum rating current of 3A and voltage of 250V AC, making it suitable for demanding electrical applications. It features a contact resistance of ≤50mΩ and a dielectric strength of 1500V, ensuring safe operation. The mechanical life is 50,000 cycles, and the electronic life is 10,000 cycles, showcasing its robustness.

What Makes Our Switch Different from Others?

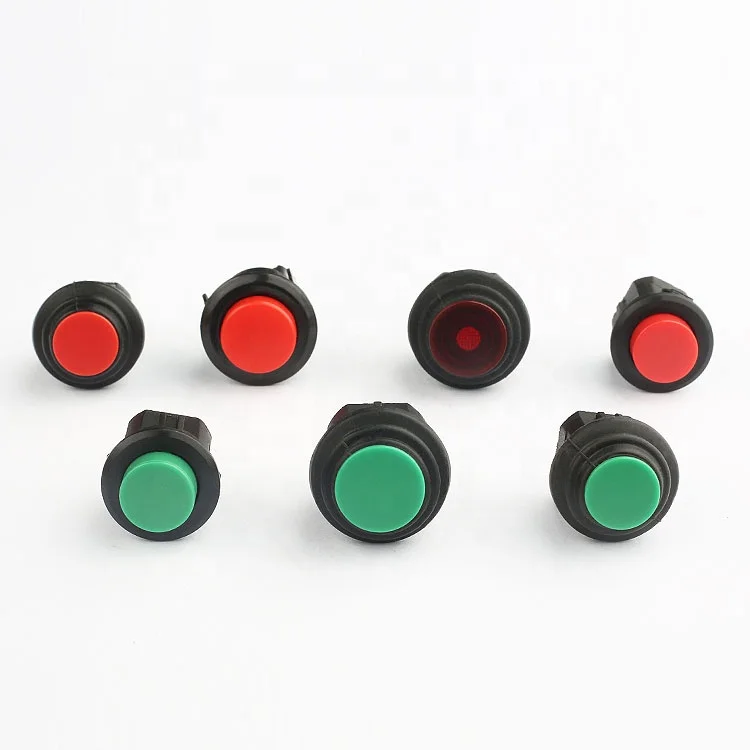

Our switch is not only factory-direct, but it also offers customizable colors to match your appliance design. It operates within a wide temperature range of -25℃ to 85℃, adapting to different climates. Certified with CQC and CE, it meets international quality standards, giving you peace of mind.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KA7-12F

LED

NO

Whether the smart

NO

IP level

IP65

Switch Combination

1NO1NC

Product name

Push Button Switch

Color

Red Yellow Green Blue White

Material

plastic

Contact Resistance

≤50mΩ

Dielectric Strength

1500V

Operating temperature

-25 ~85℃

Certification

CQC,CE

Protection Level

IP65
