Description
|
contact resistance
|
≤50MΩ
|
electronic life
|
10000
|
|
insulation resistance
|
≥100MΩ
|
operating temperature
|
25T55
|
|
dielectric strength
|
1500V
|
IP code
|
IP40
|

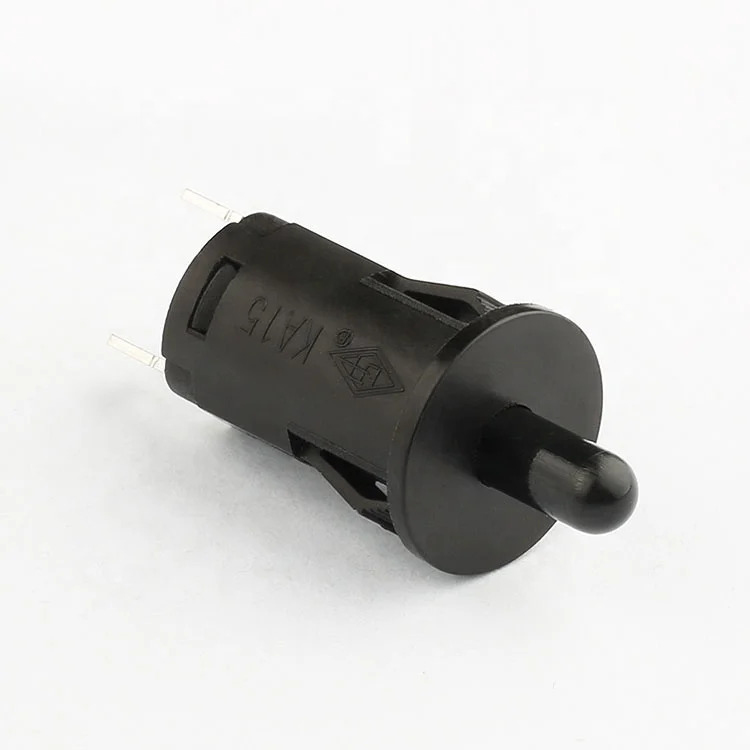

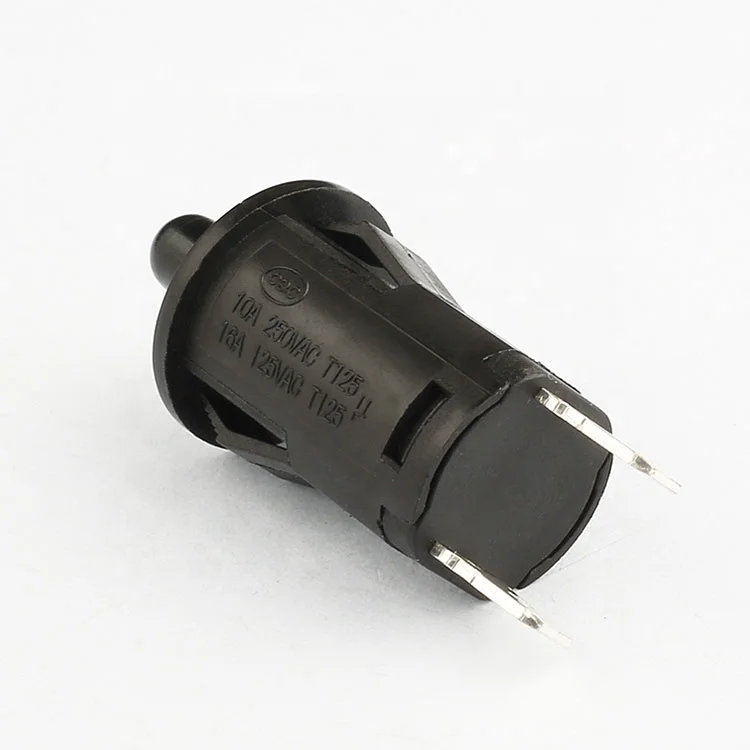

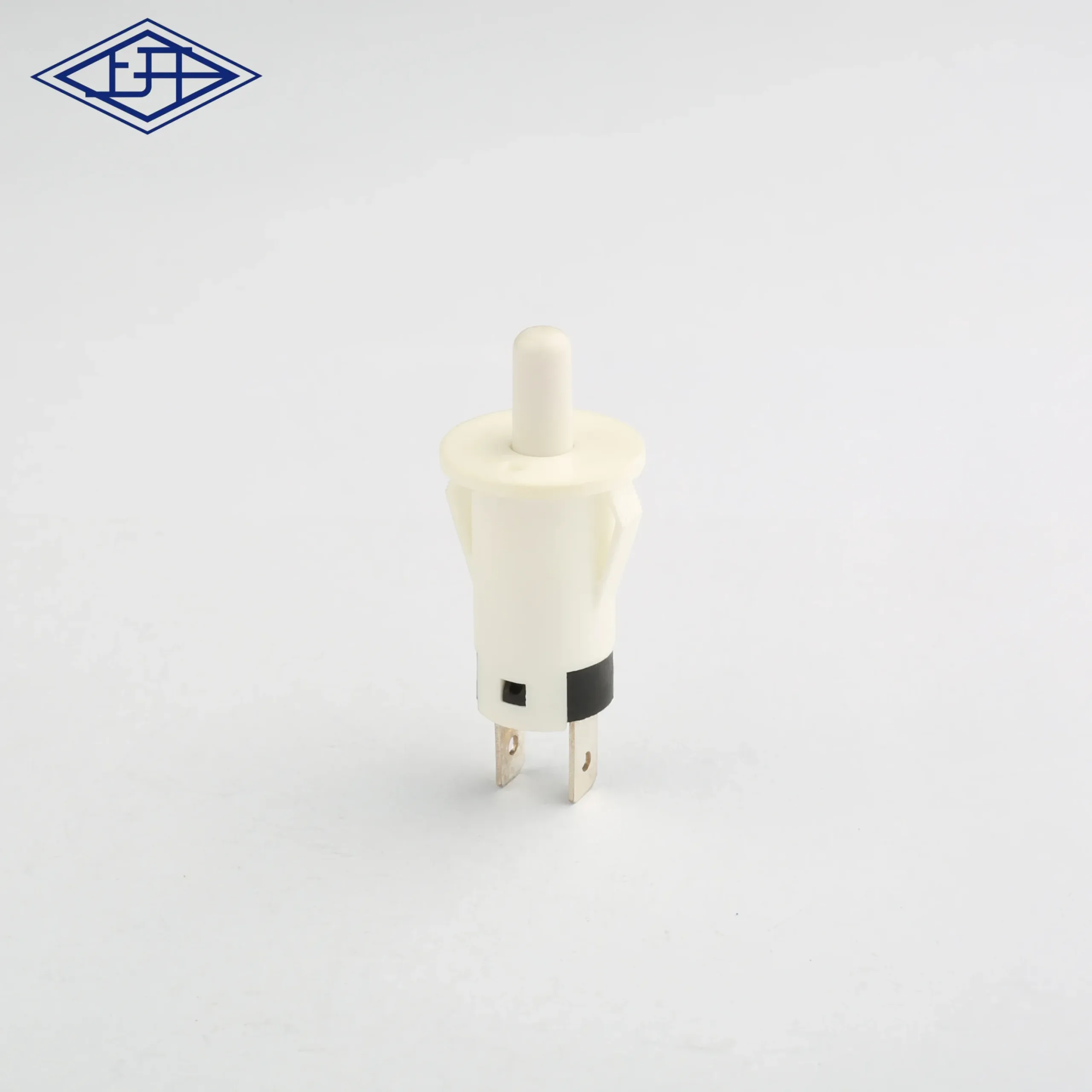

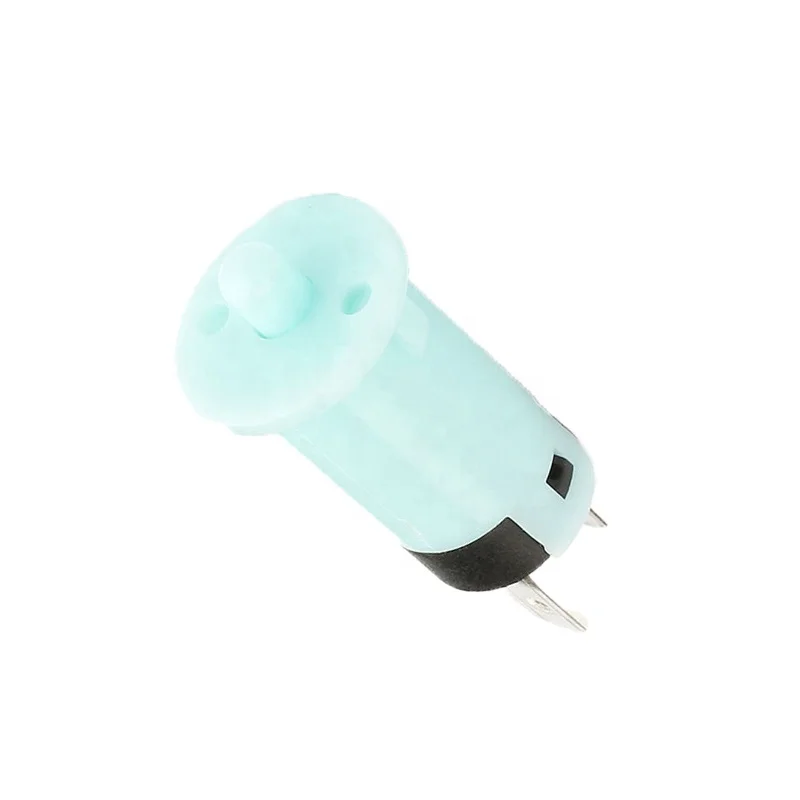

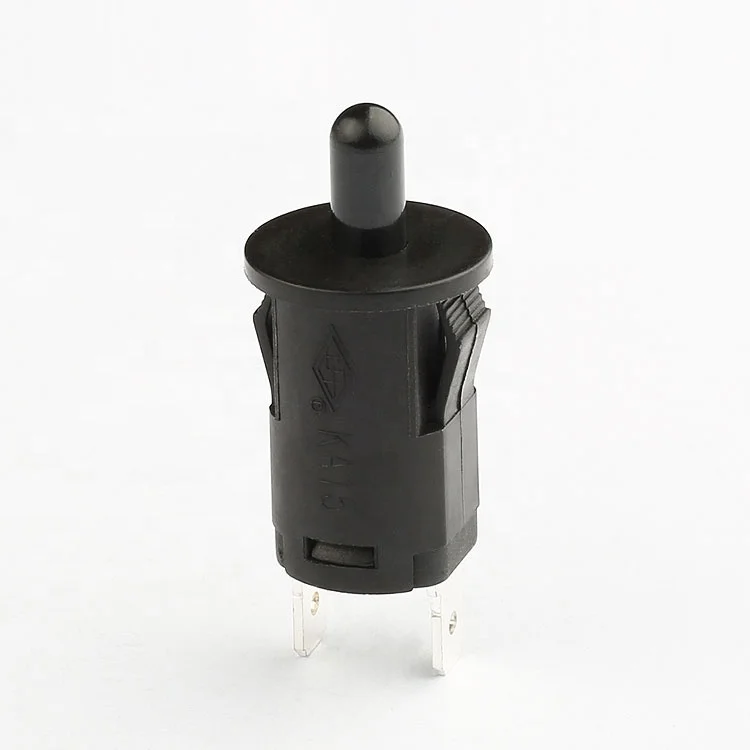

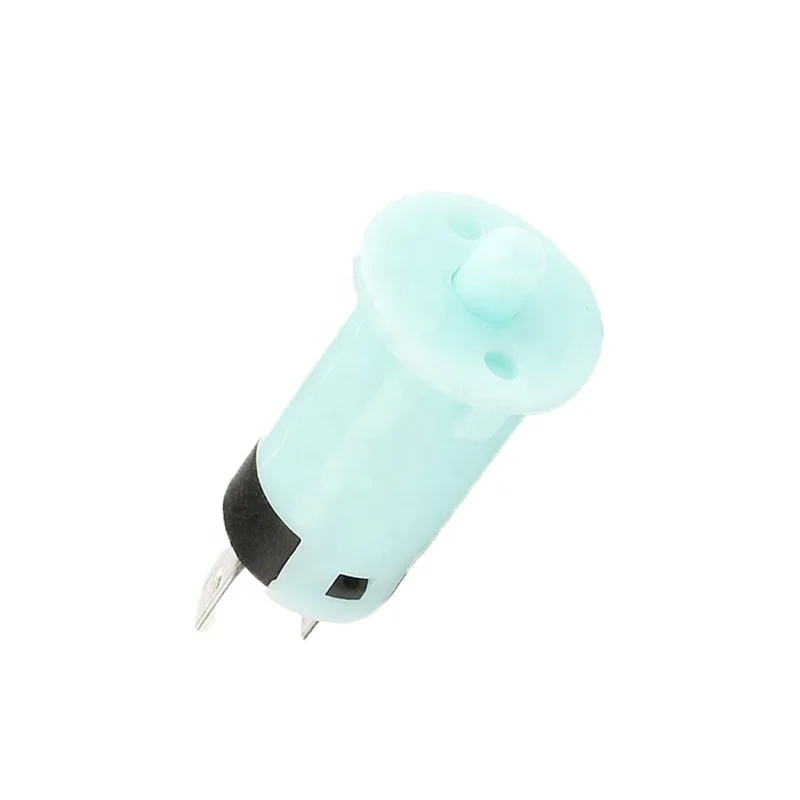

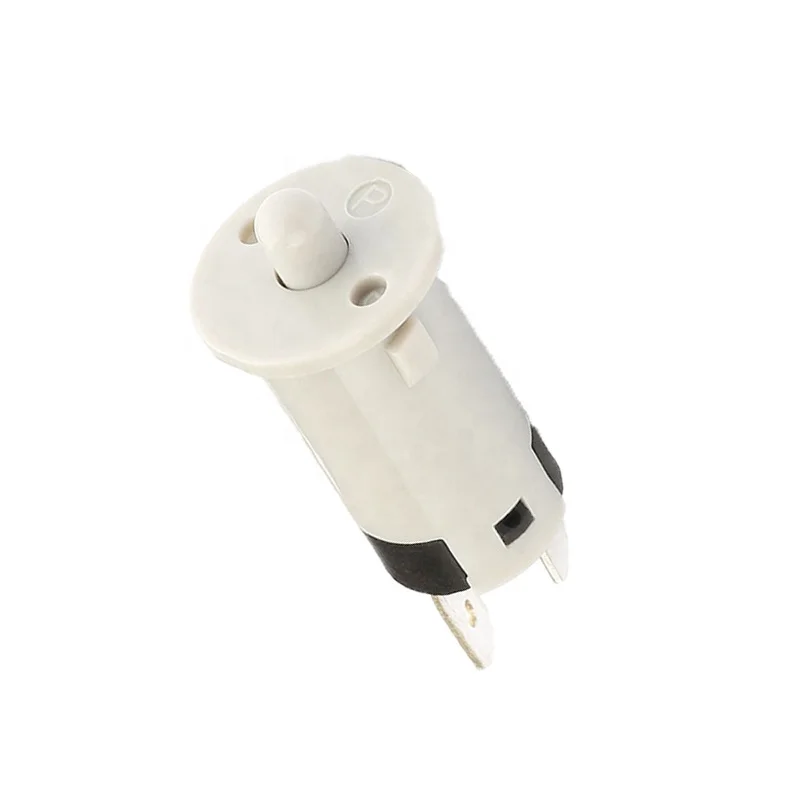

Why Choose Our 1NO1NC Door Push Button Switch?
Our 1NO1NC Door Push Button Switch stands out for its durability, reliability, and versatility. Designed for a wide range of applications, including electric devices, home appliances, and industrial control systems, it ensures consistent performance under various conditions. With a maximum current of 16A and a maximum voltage of 250V AC, it can handle heavy-duty tasks with ease. The switch's plastic construction and round head design make it both durable and aesthetically pleasing, while the pin terminals facilitate easy installation.
What Are the Key Features of Our Switch?
Our switch boasts an electronic life of 10,000 cycles, ensuring long-lasting performance. It has a contact resistance of ≤50MΩ and an insulation resistance of ≥100MΩ, providing superior safety and reliability. The dielectric strength is 1500V, and it meets IP40 protection level standards, making it suitable for environments where dust resistance is important. Additionally, it is available in black, white, blue, and gray cap colors, offering versatility in design to match your specific needs.
Why Buy from Us?
As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our switches are directly supplied from our factory, ensuring high quality and cost-effectiveness. Choose our 1NO1NC Door Push Button Switch for its superior performance, durability, and affordability. Whether you're looking for a reliable switch for your home appliances or industrial control systems, our product is the perfect choice.
