Description

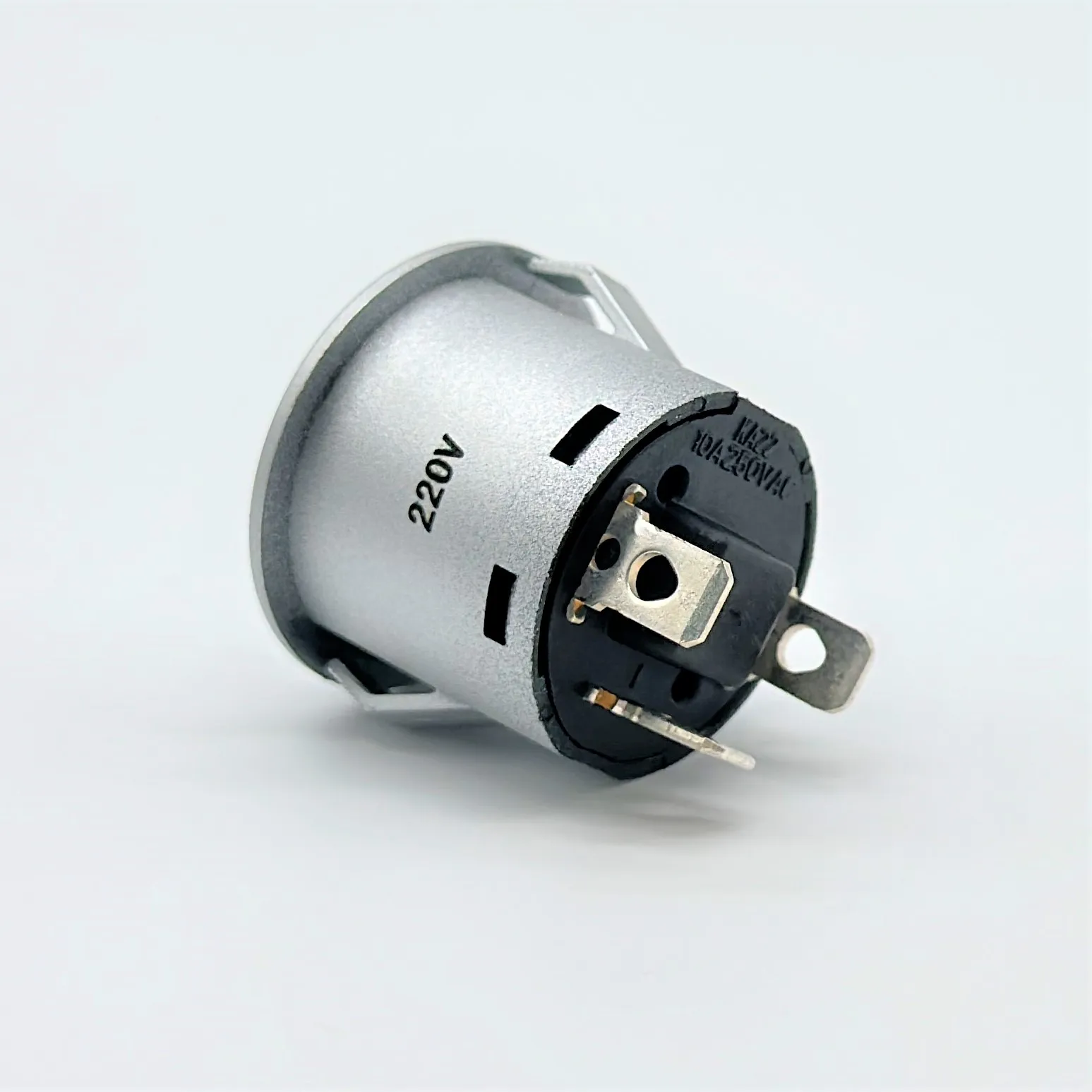

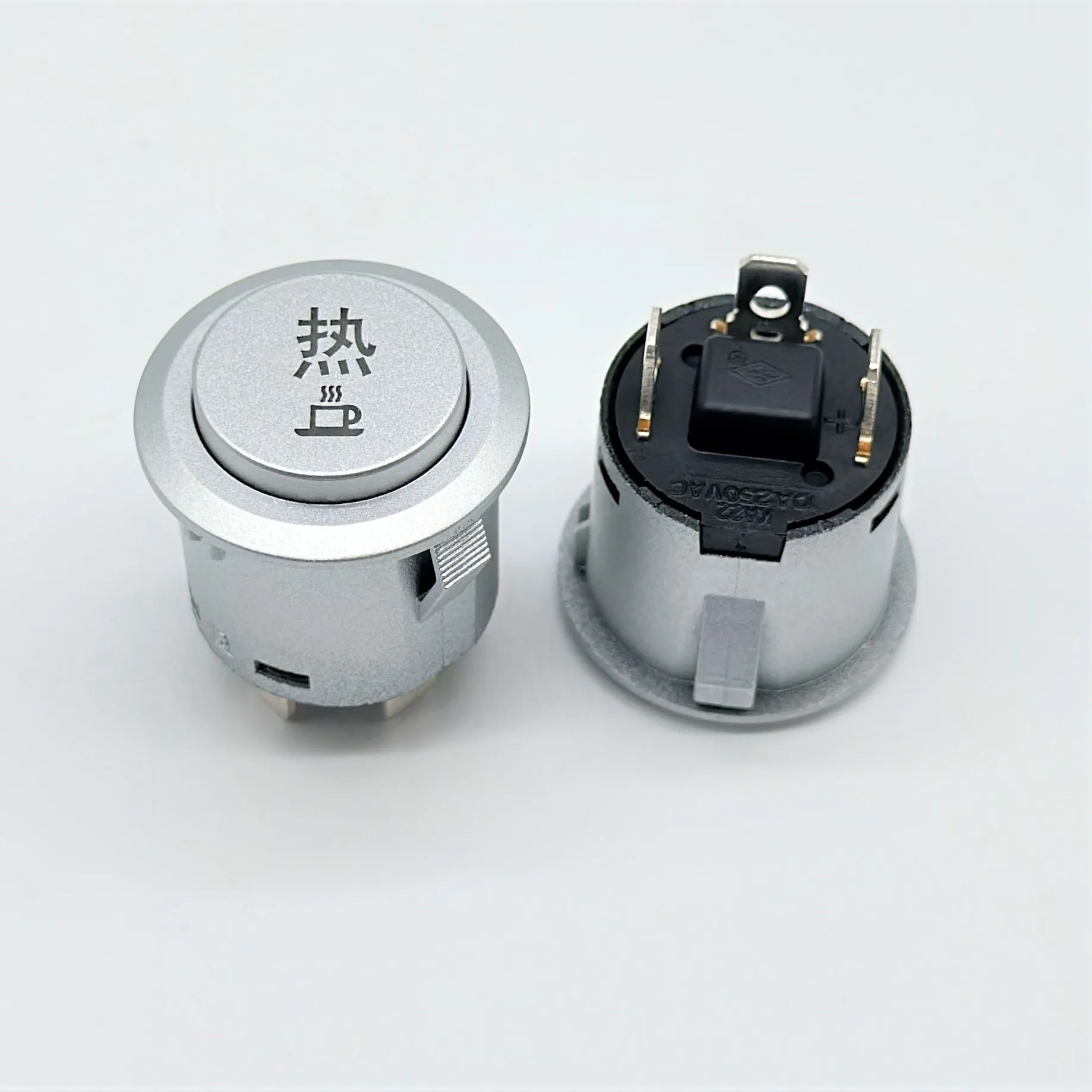

Our 22mm 10A Push Button Switch with Blue LED is a high-quality, durable product designed for a wide range of applications. As a factory direct supplier and wholesaler, we offer competitive prices and reliable quality. This switch features a plastic silver housing and button, providing a sleek and modern look. It operates at a maximum current of 10A and a maximum voltage of 220V AC, making it suitable for various electrical systems. The switch includes a bright blue LED indicator, which operates at 22V AC, enhancing visibility and functionality. Our switch has a mechanical life of 20,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. It is rated IP41 for protection against dust and water, and has an operating temperature range of -25℃ to +85℃. With CE, CQC, and CB certifications, you can be assured of its safety and compliance. We offer pin terminals for easy installation and a normally open (1NO) circuit configuration. Our switch stands out from competitors with its combination of durability, functionality, and affordability. Choose us as your supplier for wholesale orders and benefit from our factory-direct pricing and excellent customer service.
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
20000
|
|
dielectric strength
|
1500V 1min
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
10(3)A 250V AC
|
Why Choose Our 22mm Push Button Switch?
Our 22mm Push Button Switch is designed for durability and reliability, with a mechanical life of 20,000 cycles and an electronic life of 10,000 cycles. The bright blue LED indicator enhances visibility, making it ideal for various applications.
What Are the Key Features?
Key features include a plastic silver housing, 10A maximum current, 220V AC maximum voltage, and IP41 protection rating. It also has CE, CQC, and CB certifications, ensuring safety and compliance.
How Does It Compare to Competitors?
Our switch stands out with its combination of affordability, durability, and functionality. As a factory direct supplier, we offer competitive pricing without compromising on quality. Choose us for your wholesale needs and benefit from our excellent customer service.
