Description
Product Specifications:
- Max. Current: 16A
- Max. Voltage: 250V
- Size: 22mm
- IP Level: IP41 (with customizable options up to IP65)
- Contact Configuration: 1NO1NC
- Dielectric Strength: 1500V
- Mechanical Life: 50,000 cycles
- Operating Temperature: -5°C to 75°C
Product Advantages:
- Customization: We can customize the switch to meet your specific requirements, including color, IP level, and more.
- Quality Assurance: Our company boasts an independent plant, injection workshop, and advanced experimental equipment. With over 60 senior engineers, we ensure every switch meets our stringent quality standards.
- Factory Direct: As a factory direct supplier, we eliminate the middleman, offering you the best prices and fastest delivery times.
- Excellent After-Sales Service: We provide comprehensive after-sales service, ensuring your satisfaction with every purchase.

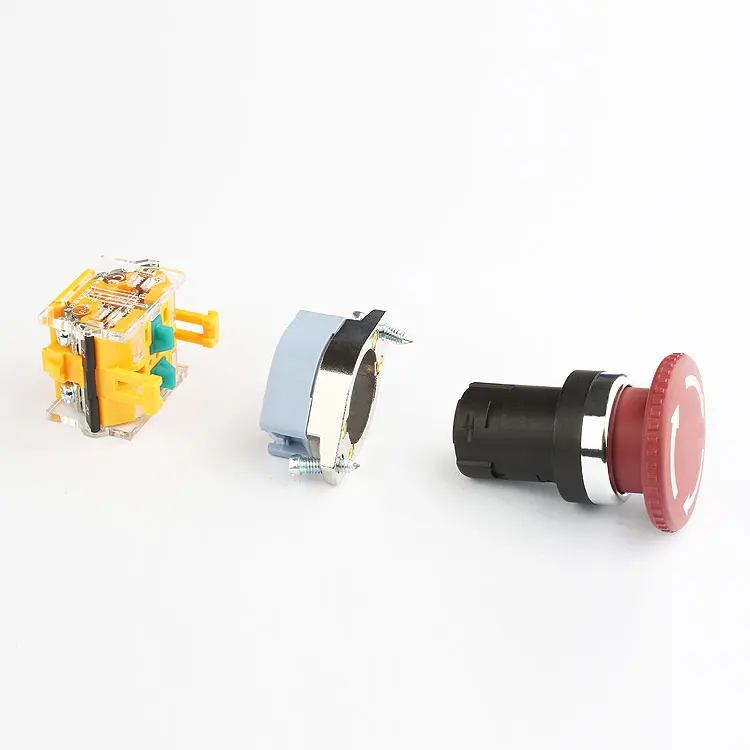

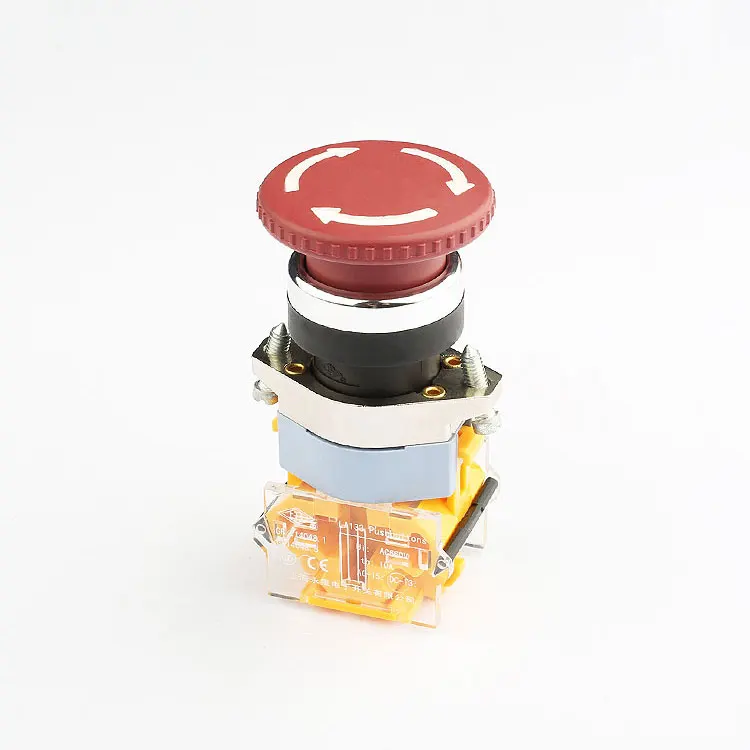

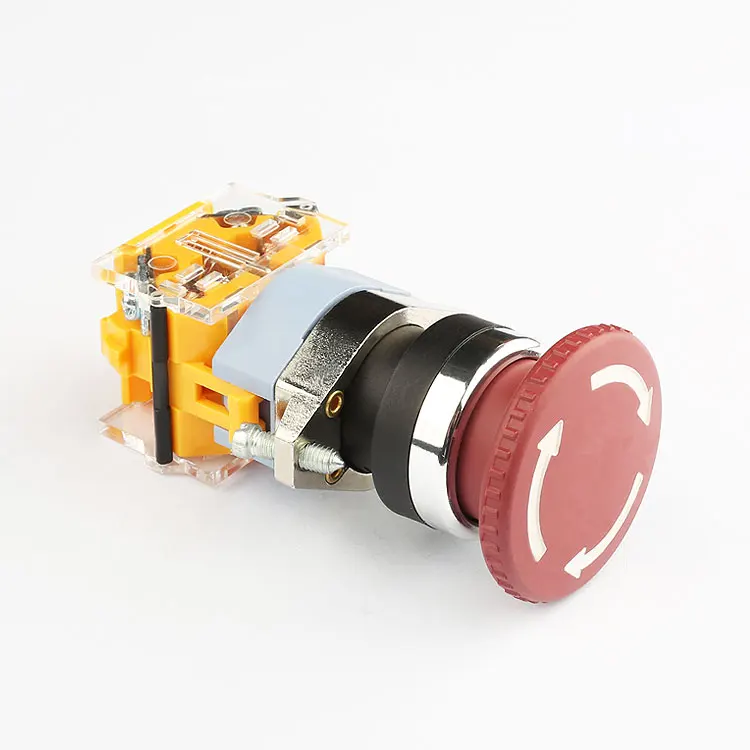

Choose our 22mm red mushroom emergency stop switch for a reliable, safe, and cost-effective solution.
| max.rating cnrrent&voltage | 3A 250vac |
| contact resistance | ≤50mΩ |
| insulation resistance | ≥100MΩ |
| dielectrice resistance | 1500V |
| electronic life | 25000 |
| mechanical life | 50000 |
| operating temperature | -5℃—75℃ |
| ip code | ip44 |
Why Choose Our 22mm Red Mushroom Emergency Stop Switch?
Our 22mm red mushroom emergency stop switch is designed for safety and reliability. With a max. current of 16A and max. voltage of 250V, it's suitable for a wide range of industrial applications. The switch's mushroom shape and red color make it easily identifiable in emergency situations.
Customizable to Meet Your Needs
We understand that every application is unique. That's why we offer customization options, including IP level (up to IP65) and more. Our team of senior engineers will work with you to ensure the switch meets your specific requirements.
Factory Direct, Wholesale Prices
As a factory direct supplier, we eliminate the middleman, offering you wholesale prices and fast delivery times. Our switches are manufactured in our own plant, ensuring the highest quality standards are met. Choose us for a reliable, safe, and cost-effective emergency stop switch solution.
