Description

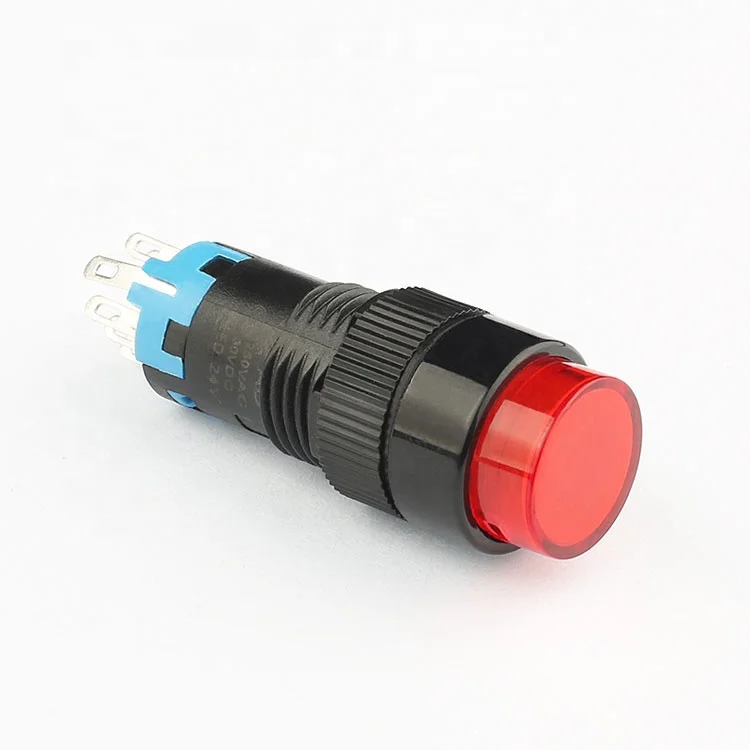

Looking for a high-quality, reliable push button switch? Look no further! Our factory-direct 3A 250V 10mm red illuminated push button switch with 1NO1NC configuration is the perfect choice. This switch is not only aesthetically pleasing with its red LED illumination but also boasts impressive technical specifications. It has a maximum rating current of 3A and a voltage of 250V AC, making it suitable for a wide range of applications. With a contact resistance of ≤50mΩ and an insulation resistance of ≥1000 MΩ, you can be assured of its safety and reliability. The dielectric strength is 1500V, ensuring it can withstand high voltages without any issues. It has an electronic life of 25,000 cycles and a mechanical life of 50,000 cycles, providing long-lasting performance. The operating temperature range is -5°C to +75°C, and it has an IP40 protection level, making it suitable for various environments. Our company, as a professional supplier and manufacturer, has our own independent plant, injection molding workshop, and advanced experimental equipment. We have over 60 senior engineers and implement 5S management in all our workshops, ensuring high-quality production. If you have a large enough quantity, we can customize the switch to meet your specific requirements. We offer wholesale prices and excellent after-sales service. Don’t miss out on this great opportunity to get a top-notch push button switch at a factory-direct price!
| Max.Rating Current & Voltage(Resistive Load) |
3A/250V AC |
| Contact Resistance |
≤50mΩ |
| Insulation Resistance |
≥1000 MΩ |
| Dielectric Strength |
1500V |
| Electronic Life(cycles) |
25000 |
| Mechanical Life(cycles) |
50000 |
| Operating temperature |
-5°c~+75°c |
| IP code |
IP40 |
Why Choose Our Push Button Switch?
Our 3A 250V 10mm red illuminated push button switch stands out from the competition. With its high current and voltage rating, it can handle demanding applications. The 1NO1NC configuration provides versatile switching options. The red LED illumination not only adds a visual appeal but also indicates the switch status clearly. Being factory-direct, we can offer you the best prices without compromising on quality.
Customization Options
If you have specific requirements, we can customize the switch for you. Whether it's a different color, size, or additional features, our team of senior engineers can make it happen. This level of customization sets us apart from other suppliers.
After-Sales Service
We are committed to providing excellent after-sales service. If you encounter any issues with the switch, our dedicated support team is here to help. We offer a warranty to ensure your peace of mind. Choose us as your push button switch supplier and experience the difference in quality and service.
