Description
Our Rotary Switch boasts impressive specifications:
– **Max. Rating Current & Voltage**: 3A 250V AC
– **Contact Resistance**: ≤50MΩ
– **Insulation Resistance**: ≥100MΩ
– **Dielectric Strength**: 1,500V
– **Electronic Life**: 50,000 cycles (Momentary), 25,000 cycles (Alternate)
– **Mechanical Life**: 200,000 cycles (Momentary), 50,000 cycles (Alternate)
– **Operating Temperature**: -25°C to +55°C
– **IP Code**: IP40
Crafted from durable plastic, this switch ensures longevity and reliability. It’s CE and RoHS certified, guaranteeing safety and environmental compliance. With a sleek black finish, it adds a touch of sophistication to any application.
Choose our Rotary Switch for its superior quality, competitive pricing, and exceptional after-sales service. As a factory supplier, we guarantee the best value for your money. Order now and experience the difference!
| Max. Rating Current & Voltage (Resistive Load) | 3A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical Life(cycles) | Momentary:200,000 Alternate:50,000 |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |

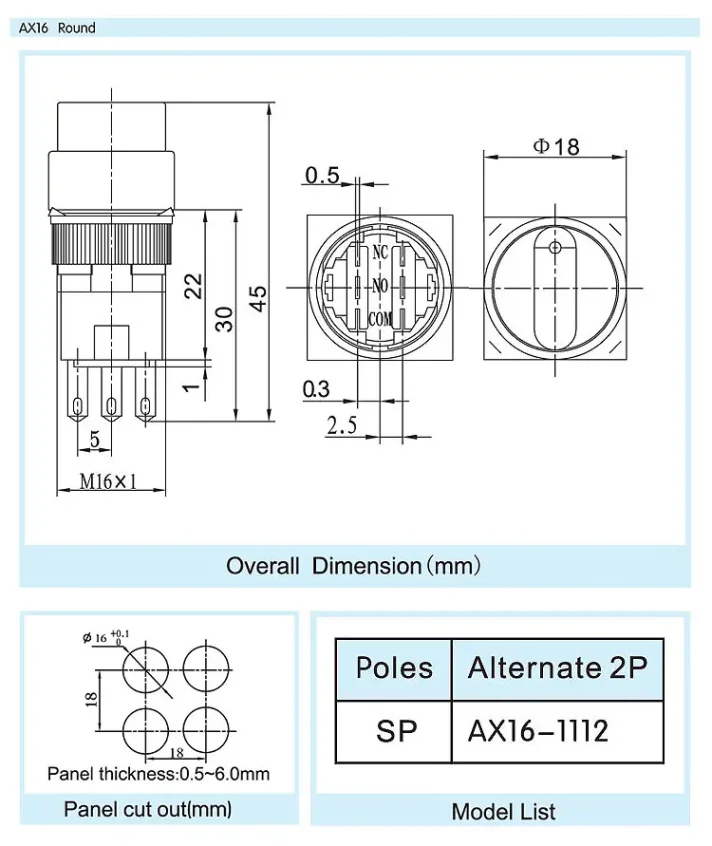

| Panel cut out | φ16mm |
| Poles | SP(Single Pole) |
| Operating Top shape | Round |

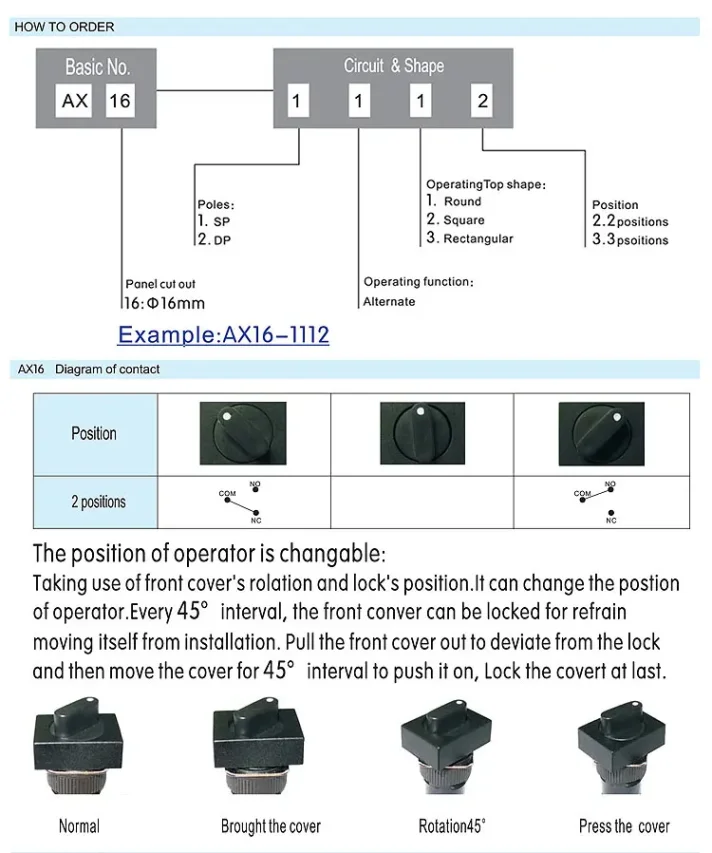

| Position | 2 position |
Why Choose Our 3A 250V Rotary Switch?
Our 3A 250V Rotary Switch stands out for its high-quality construction, durable plastic material, and impressive specifications. With a 16mm panel cut-out and available in 2 or 3 positions, it's perfect for a wide range of single pole applications in the electronic industry.
What Makes Our Switch Different?
Unlike other switches on the market, our Rotary Switch offers exceptional electronic and mechanical life, ensuring long-lasting performance. It's also CE and RoHS certified, guaranteeing safety and environmental compliance. Plus, our factory direct pricing and wholesale supplier status mean you get the best value for your money.
How Can Our Switch Benefit Your Projects?
Upgrade your electronic projects with our reliable and durable Rotary Switch. Its sleek black finish adds a touch of sophistication, while its high contact resistance, insulation resistance, and dielectric strength ensure optimal performance. Choose our switch for its superior quality, competitive pricing, and excellent after-sales service.
