Factory Direct KCD2 16A 250V AC Rocker Switch | Wholesale Supplier

200 - 1,999  pieces
$0.31

2,000 - 4,999  pieces
$0.29

>= 5,000  pieces
$0.27

0 reviews

Wholesale KCD2 16A 250V AC Rocker Switch | Factory Direct Supplier

Description

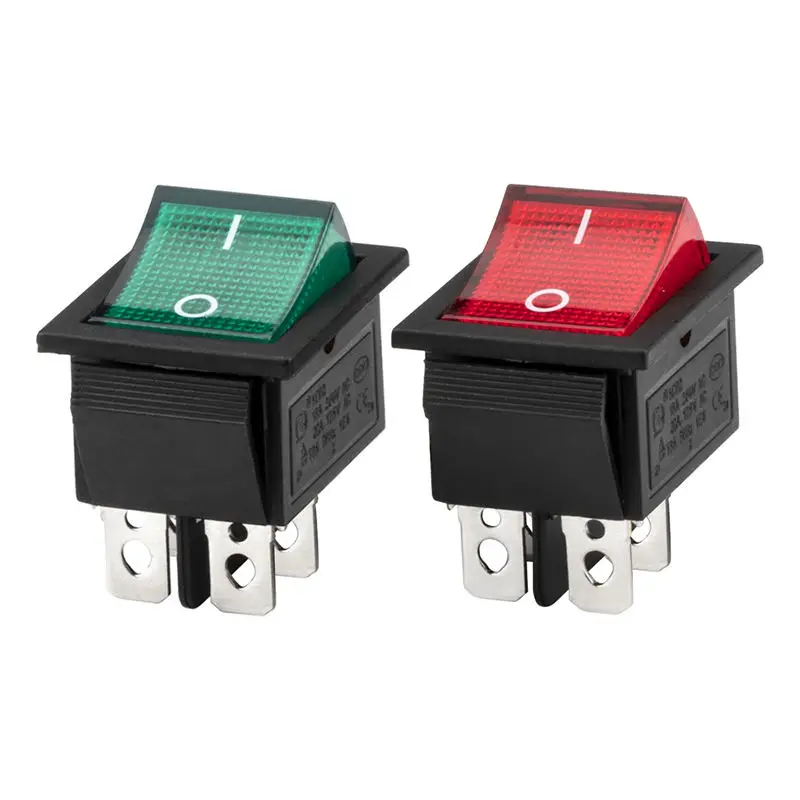

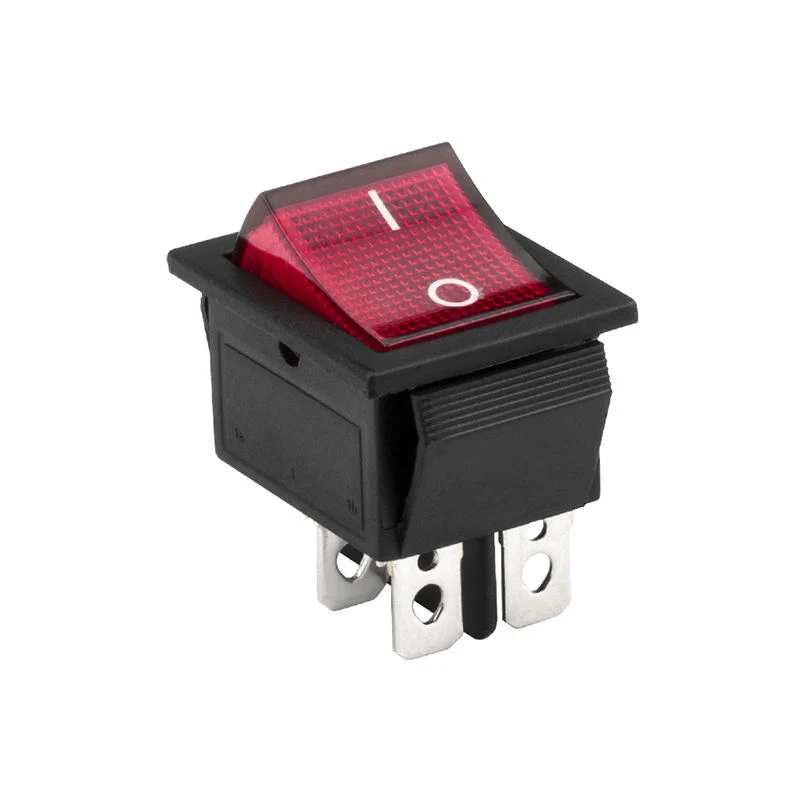

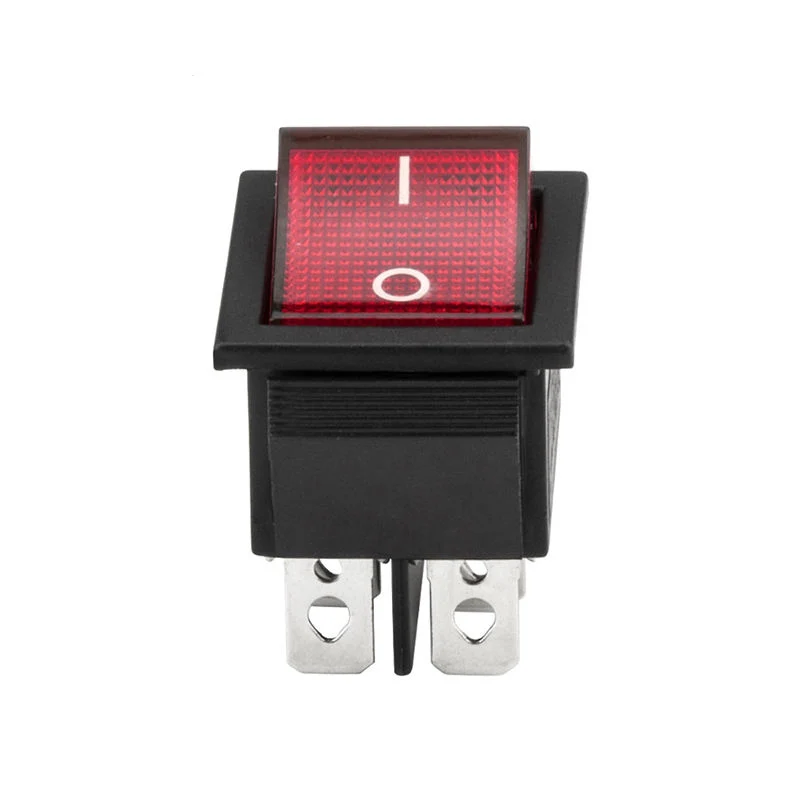

Introducing our high-quality KCD2 16A 250V AC Rocker Switch, a must-have for mechanical equipment. As a factory direct supplier and wholesaler, we offer unbeatable prices and quality. This switch boasts a maximum current of 16A and a voltage rating of 250V AC, ensuring reliable performance. With a mechanical life of 100,000 times, it outlasts many competitors. The switch is available in various shapes (Arc-Shape, round, square) and colors (red, green, yellow, blue, orange, black), allowing for customization to suit your needs. It also features an LED neon illuminator, making it easy to locate in low-light conditions. Our switch is certified with CCC, CQC, CE, RoHS, ENEC, and KEMA, guaranteeing safety and compliance. With a contact resistance of ≤50MΩ and an insulation resistance of ≥1000MΩ, it ensures efficient and safe operation. The dielectric strength of 1500V AC for 1 minute further enhances its reliability. Choose our factory-direct KCD2 Rocker Switch for superior quality, competitive pricing, and excellent customer service.
contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life(cycles)
10000
dielectric strength
1500V AC 1min
IP code
IP40

Electronic component for cross-border e-commerce


Key Features

Our KCD2 Rocker Switch stands out with its high current and voltage ratings, ensuring reliable operation in demanding environments. The long mechanical life and multiple shape and color options make it a versatile choice for various applications.

Why Choose Us?

As a factory direct supplier and wholesaler, we offer competitive pricing without compromising on quality. Our switch is certified with multiple international standards, guaranteeing safety and compliance. The LED neon illuminator and customizable colors add an extra layer of convenience and style.

Applications

Ideal for mechanical equipment and industrial use, our KCD2 Rocker Switch provides a durable and efficient solution for controlling electrical circuits. Its customizable features make it suitable for a wide range of applications, from simple on-off control to more complex systems.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KCD2-21-CA1A-B-B-01

Whether the smart

NO

Mechanical Life

100000 times

IP level

IP40

certification

CCC,CQC, CE, RoHS, ENEC, ,KEMA

Shape

Arc-Shape,round,square

Illuminator

Led Neon

Color

red green yellow blue orange black

Indication voltage

2V, 6V, 12V, 24V, 110VAC, 220VAC

Products name

KCD2-21-CA1A-B-B-01

Function

ON-OFF

Material

Plastic/metal

Contact Resistance

50m Max

Lamp voltage

250v
