Description

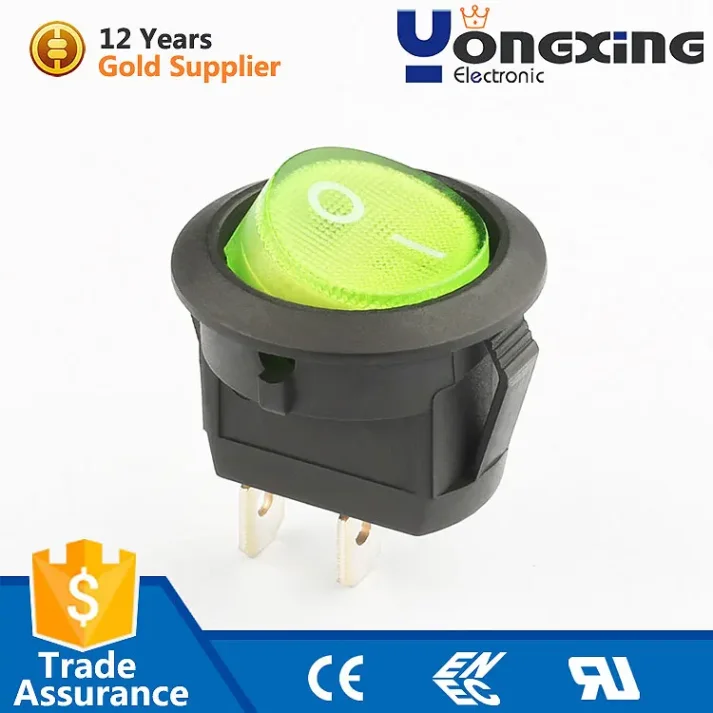

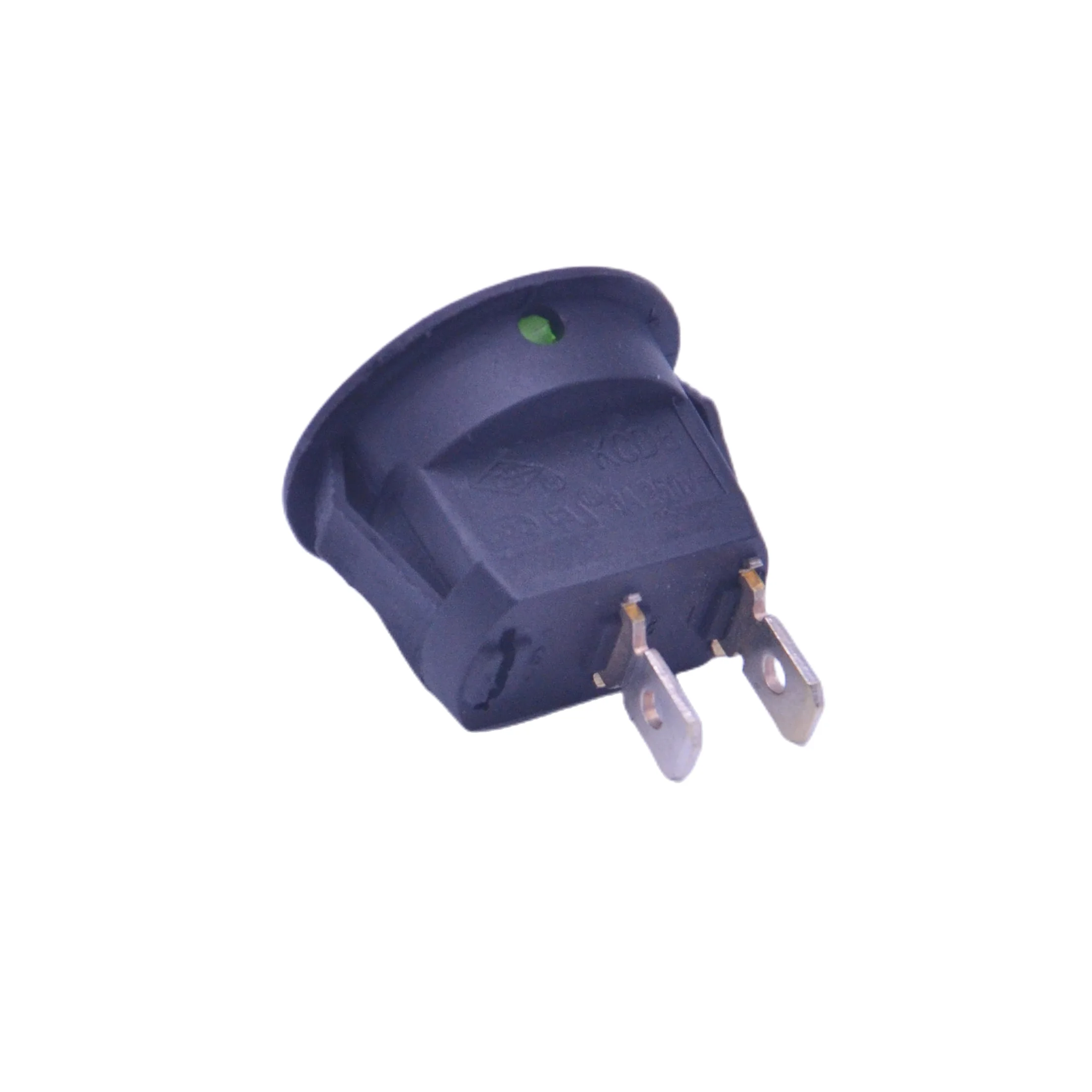

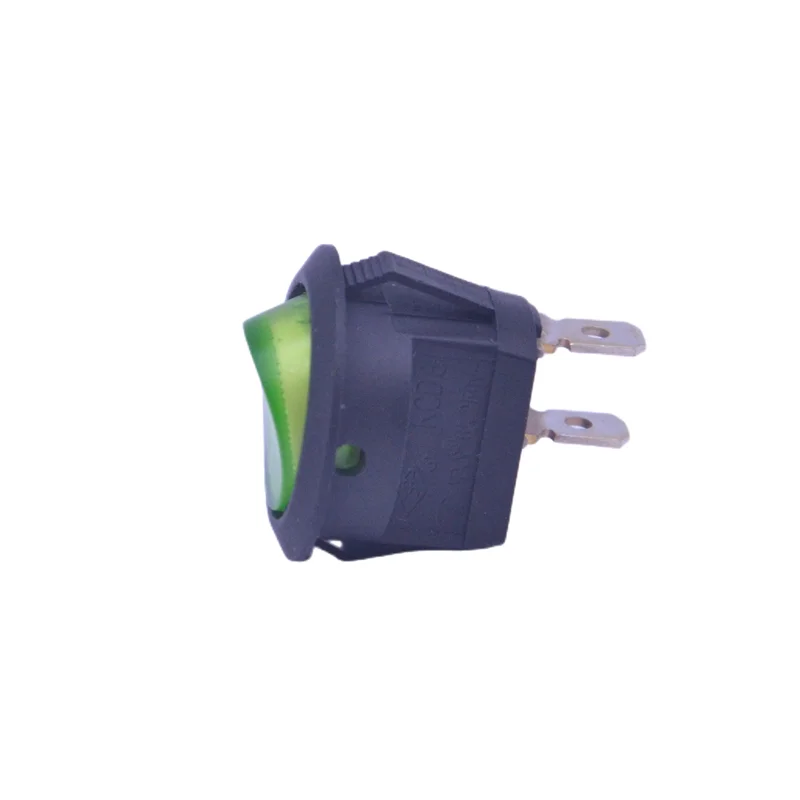

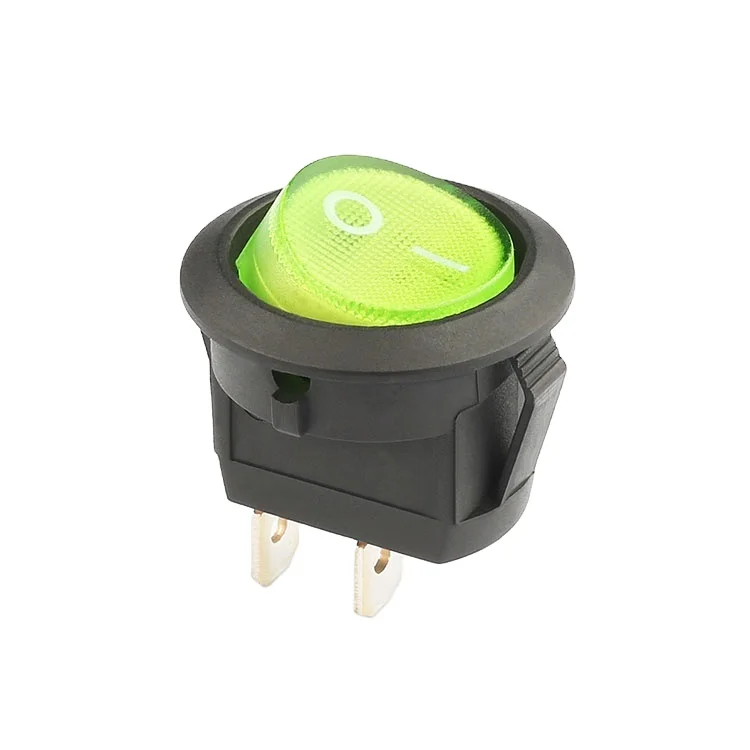

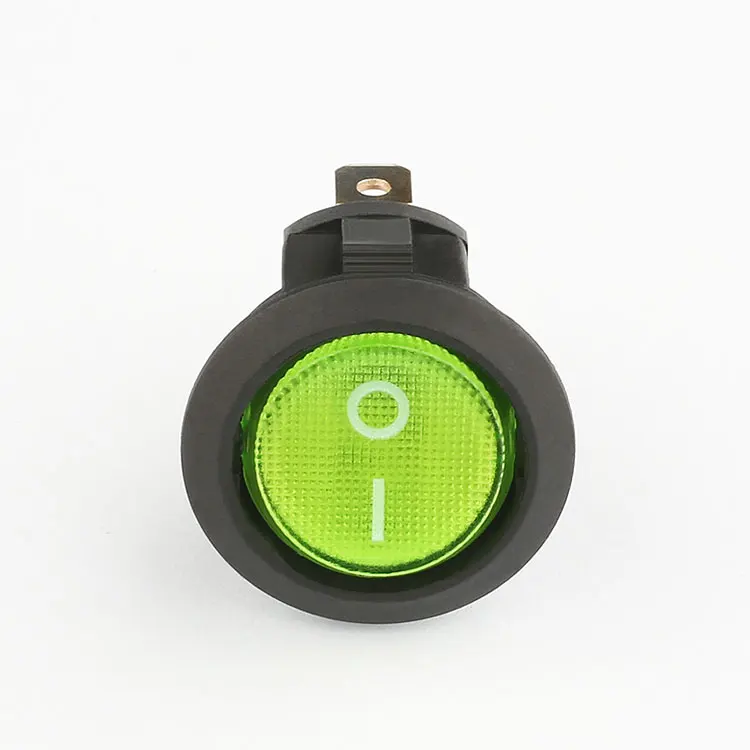

Our high-quality KCD8 6A 250V AC Rocker Switch is a top choice for your electrical needs. As a factory supplier, we offer wholesale pricing and direct-from-factory quality, ensuring cost-effectiveness and reliability. This switch, with a compact 19mm size, is versatile and suitable for various applications. It boasts an IP41/IP65 protection level, making it durable even in harsh environments. With a maximum current rating of 6A and a voltage rating of 250V AC, it’s perfect for a wide range of electrical circuits. The switch features a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring efficient and safe operation. It also has a dielectric strength of 1500V AC for 1 minute, providing an extra layer of safety. Certified by CQC, CE, RoHS, ENEC, UL, and CB, our KCD8 Rocker Switch guarantees quality and compliance with international standards. It has an electronic life of 10,000 cycles, ensuring long-lasting performance. Available with 1NO1NC or 1NO switch combinations, it offers flexibility for different applications. Operating within a temperature range of T55, T85, and T105, it’s suitable for various environmental conditions. Choose our factory-direct KCD8 Rocker Switch for reliable, high-quality, and cost-effective electrical solutions. We also provide excellent after-sales service to ensure your satisfaction.
| Contact Resistance | ≤50MΩ round momentary rocker switch |
| Insulation Resistance | ≥1,000MΩ 20a 125vac rocker switch |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 |
| Operating Temperature | T55,T85,T105 utv rocker switch |
| Certification |
CQC,CE,CB,ENEC |
| Max. Rating Current & Voltage :CQC,CE |
6A 250V AC |
| CB,ENEC |
10(3)A 250V AC T105,6(3)A 250V AC T105 6A 250V AC,4A 250V AC T105 |
Why Choose Our KCD8 Rocker Switch?
Our KCD8 Rocker Switch stands out due to its compact size, high protection level, and wide range of electrical ratings. It's perfect for various applications, even in harsh environments, ensuring reliable performance.
What Are the Key Features?
The switch features a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500V AC for 1 minute. It's also certified by multiple international standards, guaranteeing quality and compliance.
What About After-Sales Service?
We provide excellent after-sales service to ensure your satisfaction. As a factory supplier, we offer direct support and solutions for any issues you may encounter.
