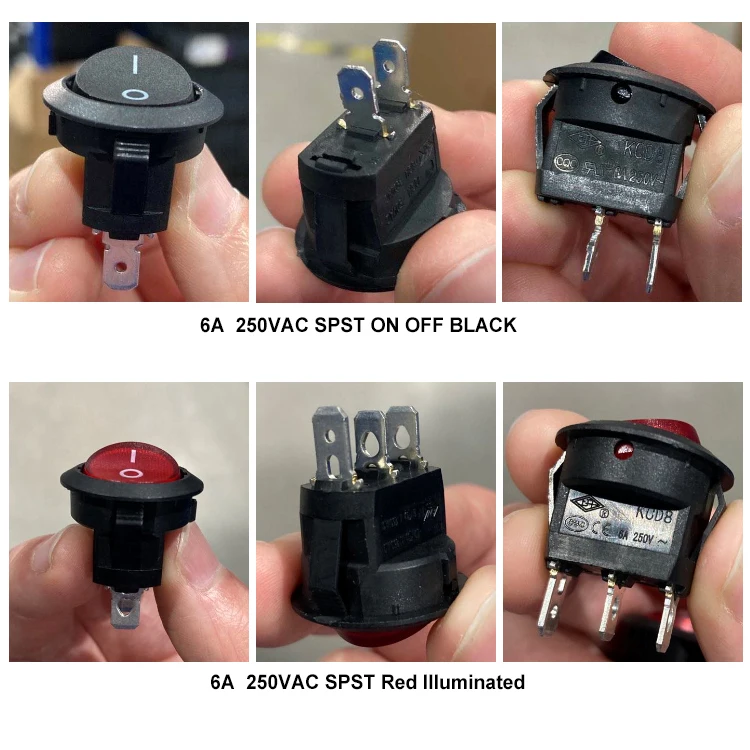

Factory Direct SPST 2-Pin 6A 250VAC Rocker Switch | Wholesale Supplier

100 - 999  pieces
$0.20

1,000 - 4,999  pieces
$0.19

5,000 - 9,999  pieces
$0.18

>= 10,000  pieces
$0.17

0 reviews

Factory direct SPST rocker switch, 6A 250VAC, wholesale supplier.

Description

Our factory-direct SPST 2-Pin 6A 250VAC Rocker Switch is a high-quality electrical component designed for a wide range of applications. With a maximum current rating of 6A and a voltage rating of 250V AC, this switch is suitable for use in various electric equipment. It features a durable plastic construction, ensuring long-lasting performance and reliability. The switch offers a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, providing exceptional durability. It comes with a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, ensuring safe and efficient operation. The dielectric strength of 1500VAC for 1 minute further guarantees its reliability under high voltage conditions. Available in multiple colors including red, yellow, green, black, blue, orange, white, and gray, this switch can easily match your design requirements. As a wholesale supplier, we offer competitive pricing and bulk order discounts. Our switch is CE, CB, ENEC17, and ROHS certified, ensuring compliance with international safety standards. With a focus on quality and customer satisfaction, we provide excellent after-sales service, including technical support and warranty coverage. Choose our factory-direct SPST 2-Pin 6A 250VAC Rocker Switch for your next project and experience the difference in quality and value.
item
value
Place of Origin
Shanghai, China
Brand Name
SK(shangkai) Yongxing
Model Number
KCD8-11-CB1A-B-R-01
Current Rating
6A
Voltage Rating
250V AC
Mechanical Life
50000 Cycles
Contact Resistance
≤50mΩ
Insulation Resistance
≥1000MΩ
Dielectric Strength
1500VAC 1 Minute
Electronic Life (cycles)
10,000
Certificate
CQC CE CB ENEC17 ROHS
Circuit
SPST
Dimension Code
B1
Contact Piece Code
A
Lamp voltage
6v/12v/24v/110v/220v

Electronic component board with various partsElectronic device module with componentsCircuit board with multiple chipsAssembly of electronic parts on a boardArray of electronic components on a board


Why Choose Our SPST 2-Pin 6A 250VAC Rocker Switch?

Our SPST 2-Pin 6A 250VAC Rocker Switch stands out for its durability, reliability, and versatility. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance even under heavy use. The switch's low contact resistance and high insulation resistance guarantee safe and efficient operation, making it ideal for a wide range of electric equipment.

Key Features and Benefits

The switch's 2-pin design and SPST circuit make it easy to install and use. It supports a maximum current of 6A and a voltage of 250V AC, suitable for various applications. The plastic construction ensures durability and resistance to wear and tear. Additionally, the switch is available in multiple colors, allowing you to choose the one that best matches your design.

Factory Direct Pricing and Wholesale Availability

As a factory direct supplier, we offer competitive pricing and bulk order discounts. Our switch is CE, CB, ENEC17, and ROHS certified, ensuring compliance with international safety standards. With excellent after-sales service, including technical support and warranty coverage, you can trust us to provide the best products and support for your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Sk(shangkai) yongxing

Model Number

KCD8-11-CB1A-B-R-01

Application

electric equipment

Material

plastic

Pins

2P

Whether the smart

NO

Mechanical Life

50000 Cycles

IP level

IP40

Switch Action

ON-OFF

Termination Type

pin

Contact Resistance

≤50mΩ

Insulation Resistance

≥1000MΩ

Dielectric Strength

1500VAC 1 Minute

Electronic Life (cycles)

10,000

Circuit

SPST ON OFF

Dimension Code

B1

Contact Piece Code

A

Electrical Life

10,000 cycles

Color

red yellow green black blue orange white gray

Operating temperature

0~55℃ , 0~85℃ , 0~105℃,
