Description

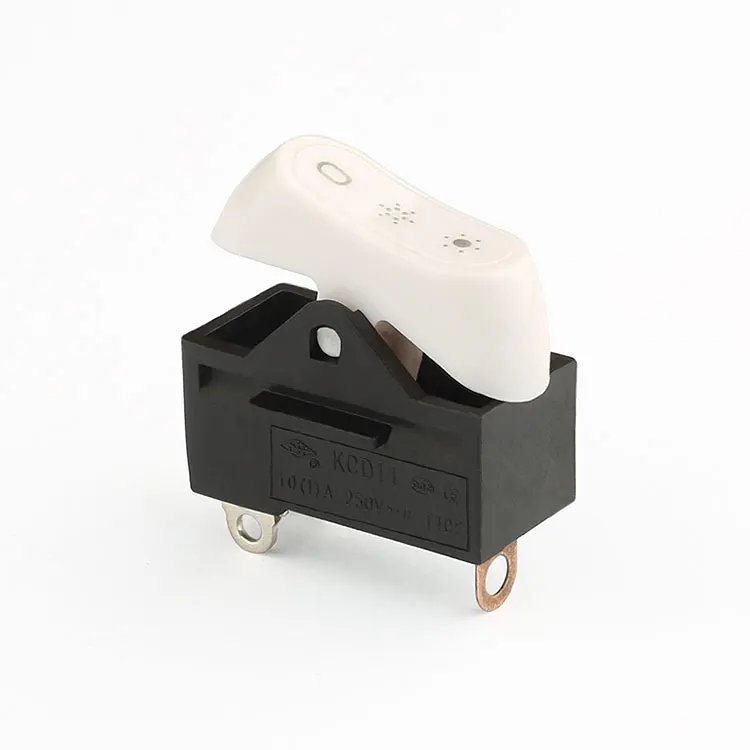

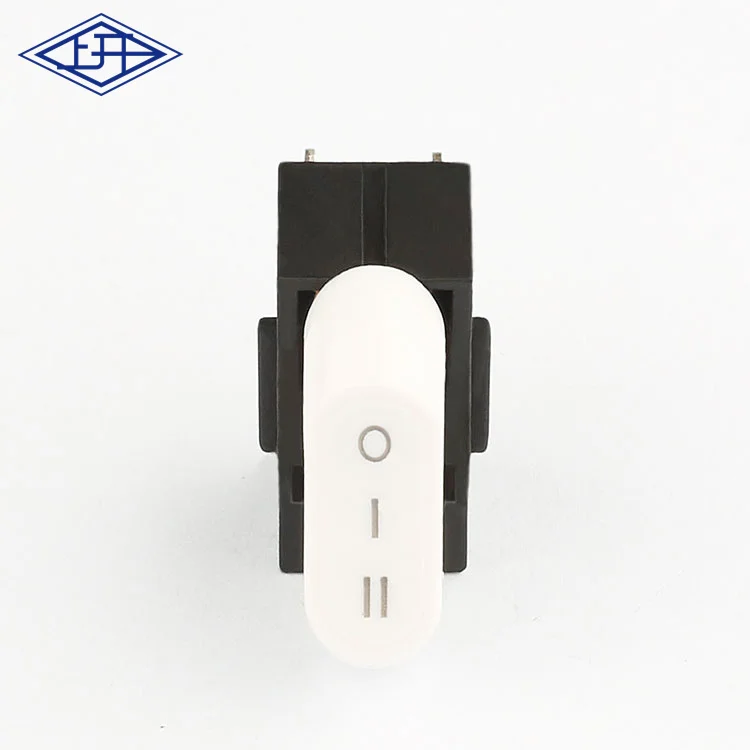

Our factory-direct wholesale SPTT 3-way rocker switch is a high-quality electrical component designed for durability and versatility. With a maximum current rating of 10A (single load: 5A) and a voltage rating of 250V AC, this switch is suitable for a wide range of electric equipment. It features a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. The switch is made of plastic, available in multiple colors including red, yellow, green, black, blue, orange, white, and gray, to suit various design needs. It has an IP41 rating, making it suitable for indoor use. As a supplier, we offer competitive pricing and bulk discounts for wholesale orders. Our switch is CE, CQC, and ROHS certified, guaranteeing its safety and compliance with international standards. Choose our factory-direct rocker switch for reliable performance and cost-effective solutions.
|

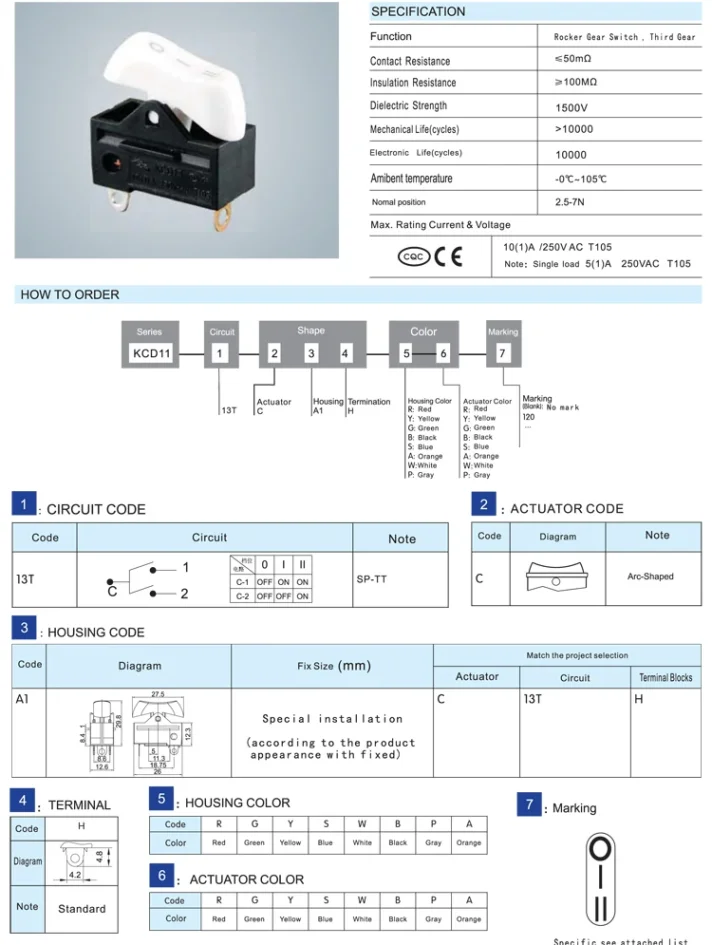

item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD11-13T-CA1H-B-W-120
|
|
Current Rating
|
10A (single load:5A)
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|

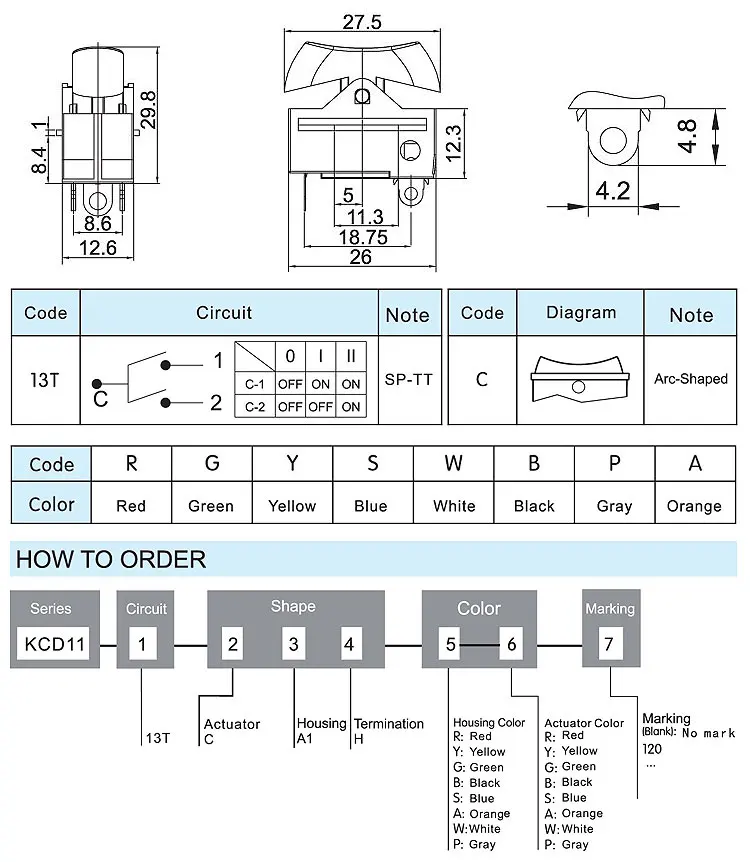

Circuit
|
SPTT
|
|
Dimension Code
|
A1
|
|
Contact Piece Code
|
H
|
Product Features
Our 3-way rocker switch is designed for durability, with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring reliable performance over time.
Product Advantages
As a factory supplier, we offer competitive pricing and bulk discounts for wholesale orders. Our switch is CE, CQC, and ROHS certified, guaranteeing its safety and compliance with international standards.
Why Choose Us
Choose our factory-direct rocker switch for its high quality, reliability, and cost-effective solutions. We offer a wide range of colors to suit your design needs and provide excellent customer service.
