Factory Direct Wholesale 10mm/12mm/16mm 12V Illuminated Push Button Switch Supplier

>= 500  pieces
$0.83

0 reviews

Factory Wholesale 12V Push Button Switches – Supplier Direct Prices!

Description

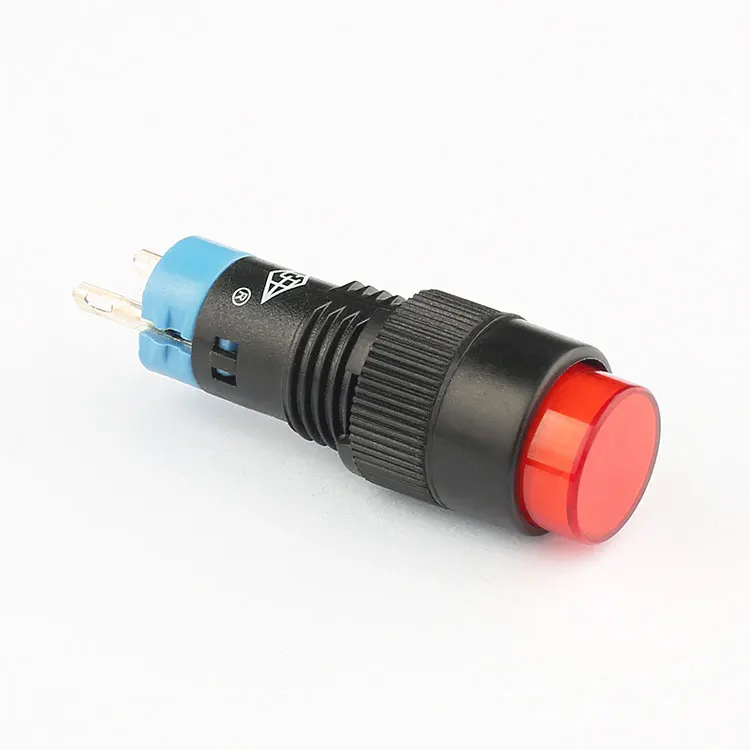

Introducing our high-quality 10mm, 12mm, and 16mm 12V illuminated push button switches, available for wholesale directly from our factory. As a trusted supplier, we offer competitive prices without compromising on quality. These switches feature a durable plastic lamp body, with a contact resistance of ≤50mΩ and a dielectric strength of 1500V, ensuring reliable performance. They are available in a variety of colors including red, green, yellow, blue, orange, and white, and support indication voltages of 2V, 6V, 12V, 24V, 110V, and 220V. With an operating temperature range of -5℃ to +75℃ and a protection level of IP40, these switches are suitable for a wide range of applications. Our switches come with a 1NO1NC switch combination and LED indication, making them easy to identify and use. We offer comprehensive after-sales service, ensuring your satisfaction with every purchase. Choose our factory-direct wholesale switches for unbeatable value and quality.

Electronic component product imageElectronic device part imageElectronic element product photoElectronic accessory product image


Why Choose Our 12V Illuminated Push Button Switches?

Our switches are designed for durability and reliability, with a plastic lamp body that withstands harsh environments. The 1NO1NC switch combination and LED indication make them easy to use and identify. Available in multiple colors and indication voltages, they cater to a wide range of applications. As a factory-direct supplier, we offer competitive wholesale prices without compromising on quality.

What Are the Key Features of Our Switches?

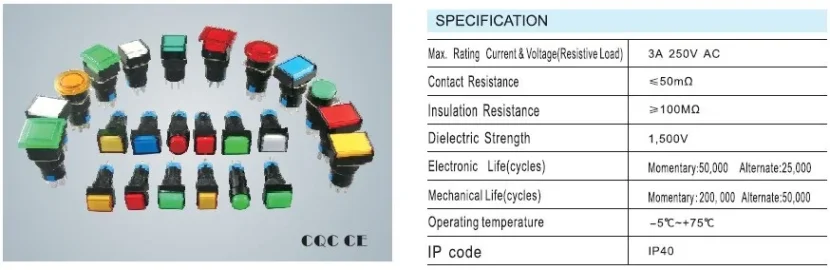

Key features include a contact resistance of ≤50mΩ, a dielectric strength of 1500V, and an insulation resistance of 100M Min. They operate within a temperature range of -5℃ to +75℃ and have a protection level of IP40. These switches are perfect for industrial control, home appliances, automotive applications, and electronic devices.

How Can We Ensure Your Satisfaction?

As a trusted supplier, we offer comprehensive after-sales service and support. Our factory-direct wholesale approach ensures you get the best value for your money. Choose our switches for unbeatable quality, performance, and price.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

AD10-111L2D-G

LED

Yes

Whether the smart

NO

Switch Combination

1NO1NC

Indication voltage:

2V, 6V, 12V, 24V, 110V, 220V

Color

red green yellow blue orange white

Operating temperature

-5℃~+75℃

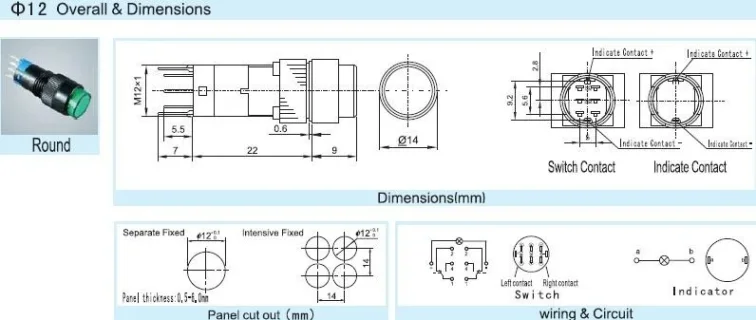

Panel cutout

10mm,12mm,16mm

Lamp Body Material

Plastic

Contact Resistance

≤50mΩ

Dielectric Strength

1500V

Insulation Resistance

100M Min

Protection level

Ip40

Certification

CQC CE
