Description
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance |
≥100MΩ 220 volt led indicat or lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
Why Choose Our LED Push Button Switches?

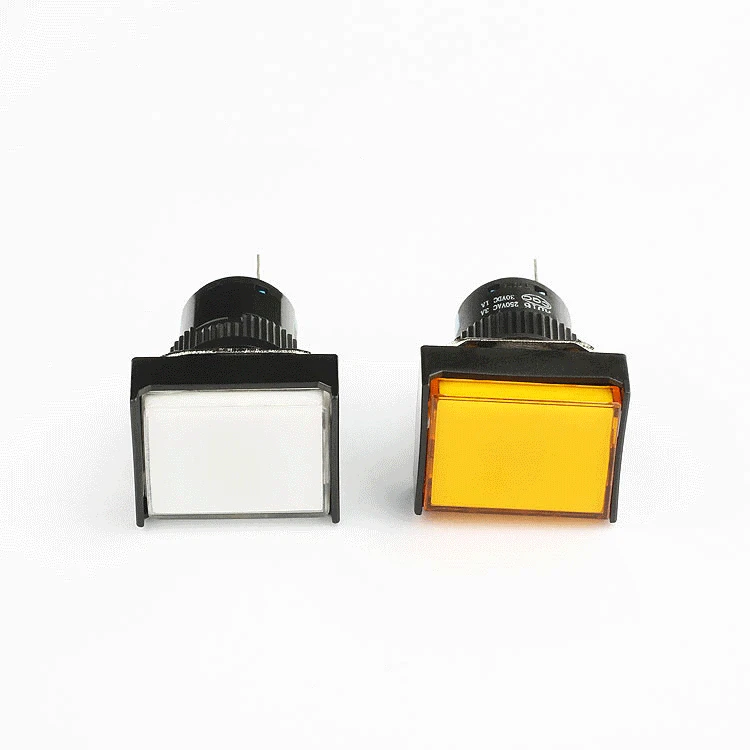

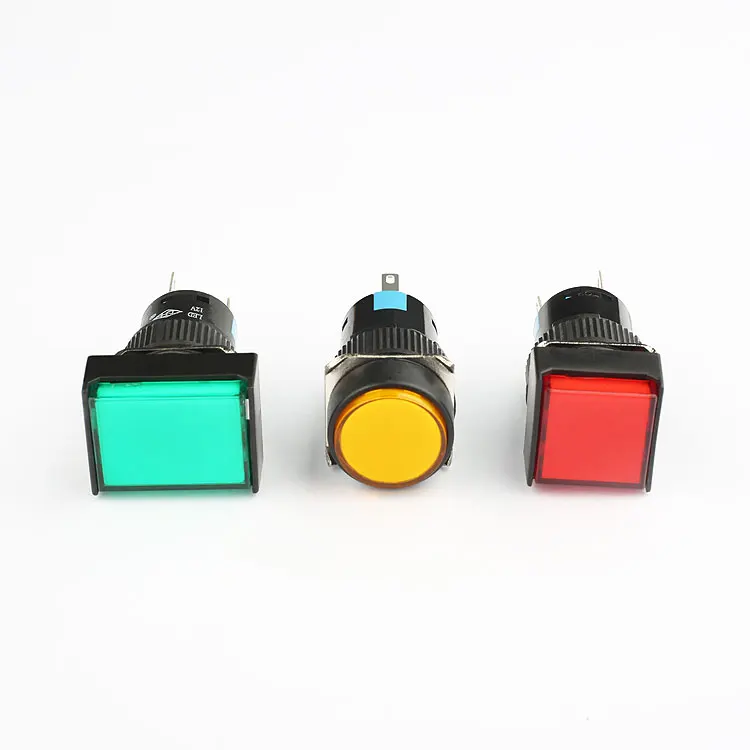

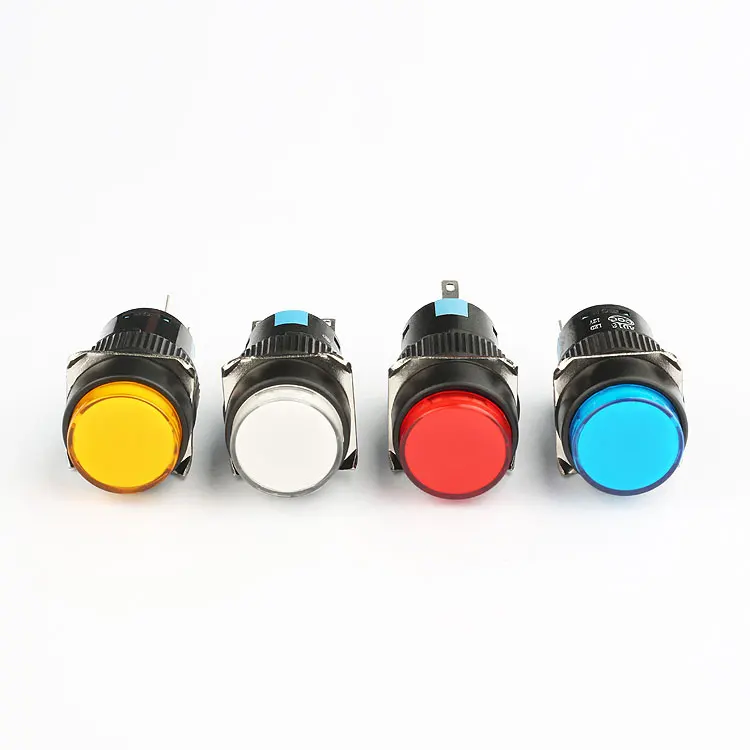

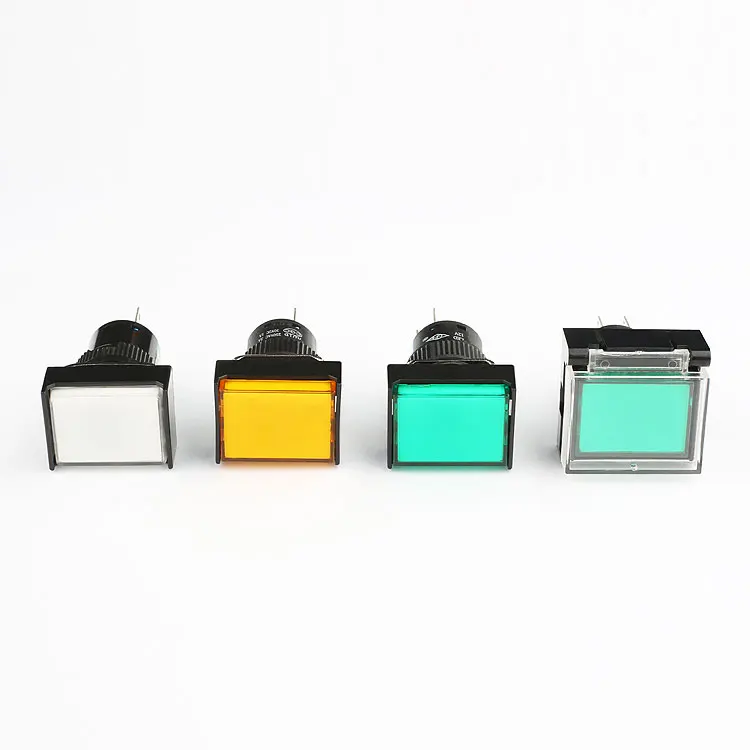

Our LED push button switches are designed for durability and reliability, making them ideal for industrial control, electrical equipment, home automation, and machinery operation. With multiple sizes (10mm, 12mm, 16mm) and colors available, you can find the perfect switch for your needs. The momentary or self-locking design, combined with 1NO1NC or 2NO2NC switch combinations, offers flexibility in application.
What Are the Key Features?
Key features include a 3A at 250VAC rating, contact resistance of ≤50mΩ, and dielectric strength of 1500V. The switches are CQC and CE certified, ensuring safety and compliance. With an operating temperature range of -5℃ to +75℃ and an IP40 protection level, they are built to withstand harsh environments.
Why Buy from Us?
As a direct factory supplier, we offer wholesale pricing and excellent customer service. Our switches are of high quality and come with fast shipping. Choose us for your LED push button switch needs and experience the difference.
