Factory Direct Wholesale 10mm Black Momentary Push Button Switch Supplier

200 - 1,999  pieces
$0.24

2,000 - 4,999  pieces
$0.22

>= 5,000  pieces
$0.20

0 reviews

Factory Wholesale 10mm Black Push Button Switch – Supplier Direct!

Description

Welcome to our factory-direct wholesale of high-quality 10mm Black Momentary Push Button Switches! As a leading supplier, we offer these switches at competitive prices with exceptional quality. Our switches are designed with precision, featuring a compact 10mm size, making them perfect for various applications. They come with a SPST 1NO configuration, ensuring reliable performance. The momentary operation type allows for quick and efficient use, ideal for temporary control needs. With a maximum current of 1A and a maximum voltage of 250V AC, these switches are suitable for a wide range of electrical devices. The black plastic casing not only looks sleek but also provides durability and protection. Our switches have an electronic life of 10,000 cycles, ensuring long-lasting reliability. They also meet CQC, CE, and ROHS certifications, guaranteeing safety and compliance. With an insulation resistance of ≥100mΩ, contact resistance of ≤50mΩ, and dielectric strength of 1500V, our switches are built to perform under demanding conditions. The operating temperature range of -5℃ to +55℃ ensures versatility in various environments. Choose us as your trusted supplier for factory-direct wholesale of these top-notch switches.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
operating temperature
5T55
dielectric strength
1500V
IP code
IP40

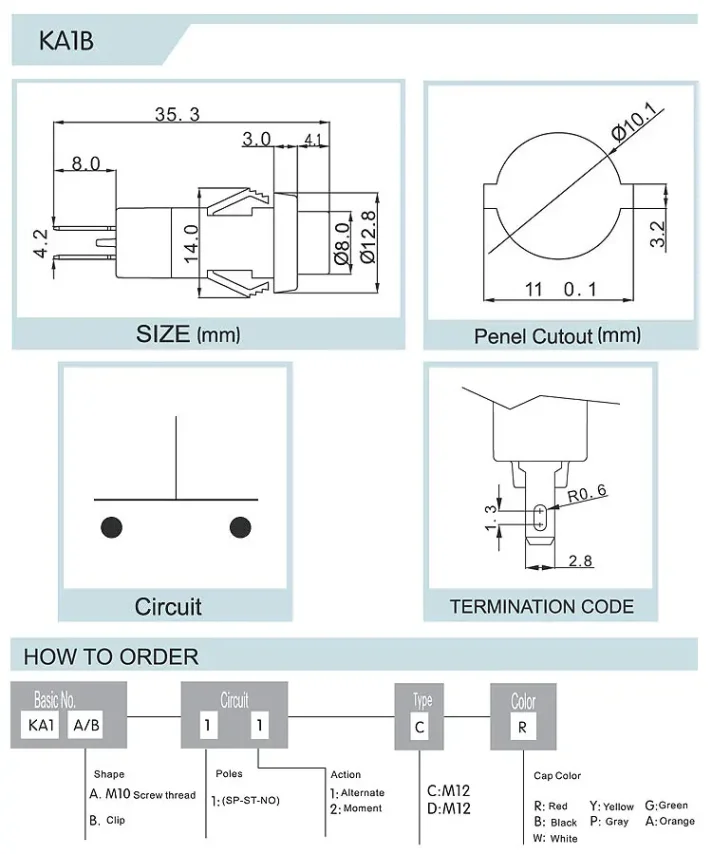

Electronic component product image for cross-border e-commerce


Why Choose Our 10mm Black Momentary Push Button Switch?

Our 10mm Black Momentary Push Button Switch stands out for its compact size, reliable performance, and durability. The momentary operation allows for quick and efficient control, making it ideal for temporary needs. With a factory-direct wholesale approach, we offer competitive prices without compromising on quality.

What Are the Key Features of This Switch?

This switch features a SPST 1NO configuration, a maximum current of 1A, and a maximum voltage of 250V AC. It has an electronic life of 10,000 cycles, ensuring long-lasting reliability. The black plastic casing provides both aesthetics and protection, while the CQC, CE, and ROHS certifications guarantee safety and compliance.

Where Can This Switch Be Used?

Our 10mm Black Momentary Push Button Switch is versatile and can be used in various electrical devices, industrial applications, and home appliances. Its compact size and reliable performance make it a popular choice for temporary control needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

1A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KA1B-12-B

LED

NO

Whether the smart

NO

IP level

IP41

Switch Combination

1NO

Name

plastic 10mm spst 1no momentary black miniature push button switch

Electronic life(cycles)

10,000

Color

Black

Operation Type

Momentary push button

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

IP code

IP40

Dielectronic Strength

1500V

Operating temperature

-5℃~+55℃

Certification

CQC CE ROHS

Protection Level

IP40
