Description
Our switch boasts a low contact resistance of 50mΩ Max and high insulation resistance of 100MΩ Min, providing excellent electrical performance. With a dielectric strength of 1500V and an electrical life of 10,000 cycles, it guarantees long-lasting use. The switch operates efficiently at T65 temperatures and is certified by CQC, CE, and CB, ensuring compliance with international standards.
As a trusted supplier, we offer competitive pricing and flexible bulk ordering options. Our commitment to quality and customer satisfaction makes us the preferred choice for businesses seeking reliable electrical components. Choose our 12mm Black SPST Push Button Switch for your next project and experience the difference in performance and value.
|

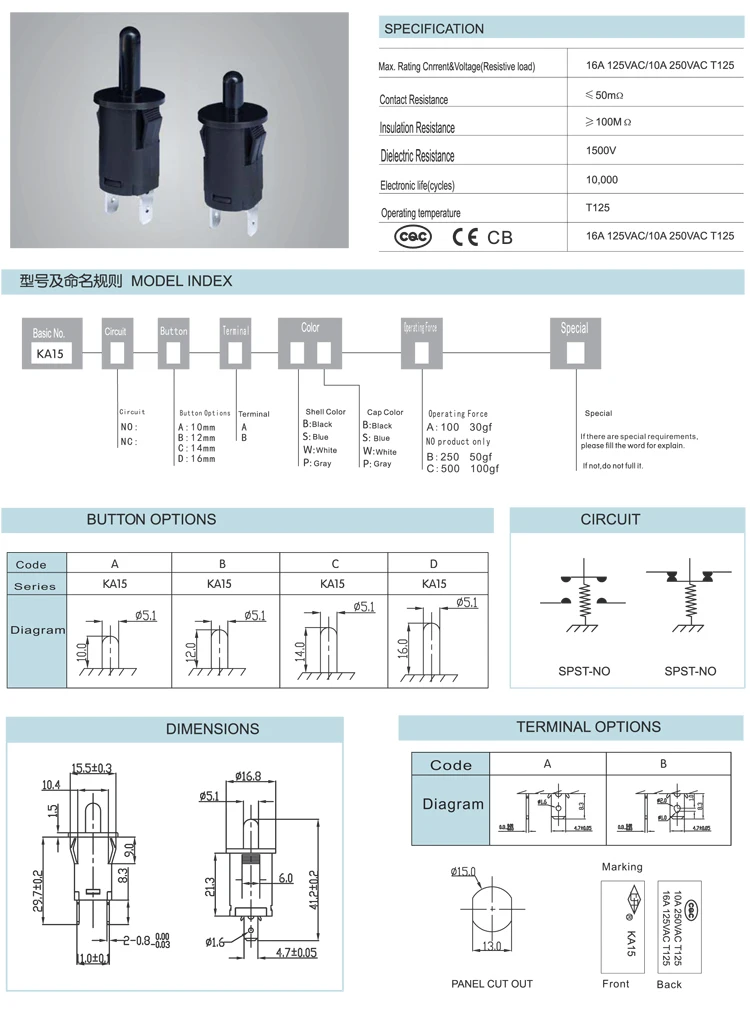

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai) yongixng
|
|
Model Number
|
KA5-2K5-NO-BB
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250VAC
|
|
Contact Resistance
|
50m Max
|
|
Insulation Resistance
|
100M Min
|
|
Dielectric Strength
|
1500V
|
|
Electrical Life
|
10000
|
|
Operating temperature
|
T65
|
|
Certificate
|
CQC CE CB
|
|
Button Length
|
5mm
|
|
Color
|
Black
|
|
Mounting Hole Size
|
12mm
|
Key Features

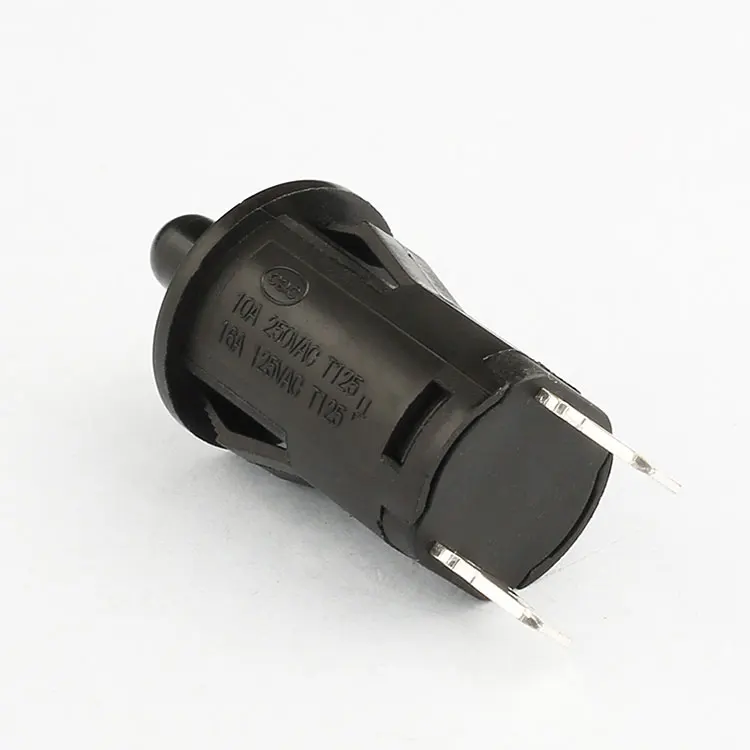

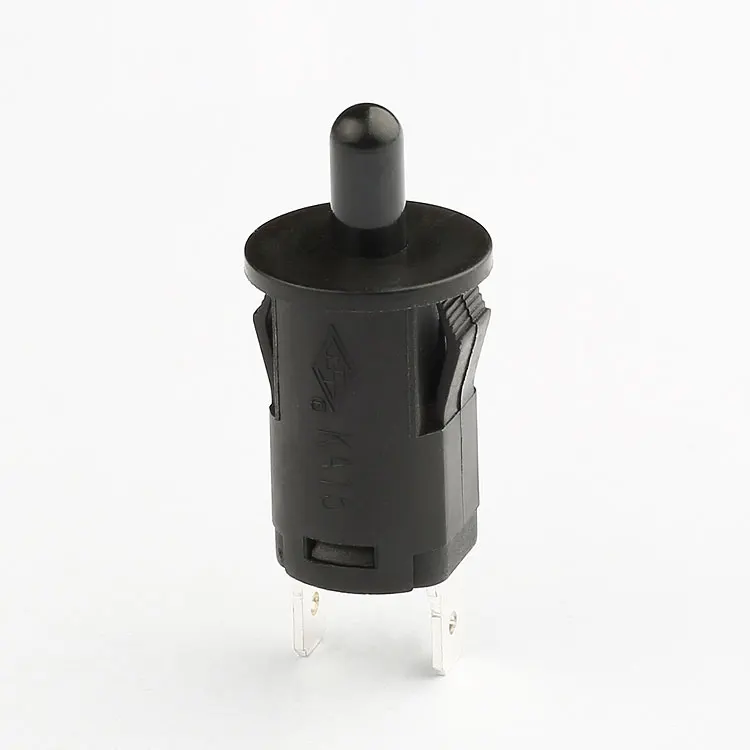

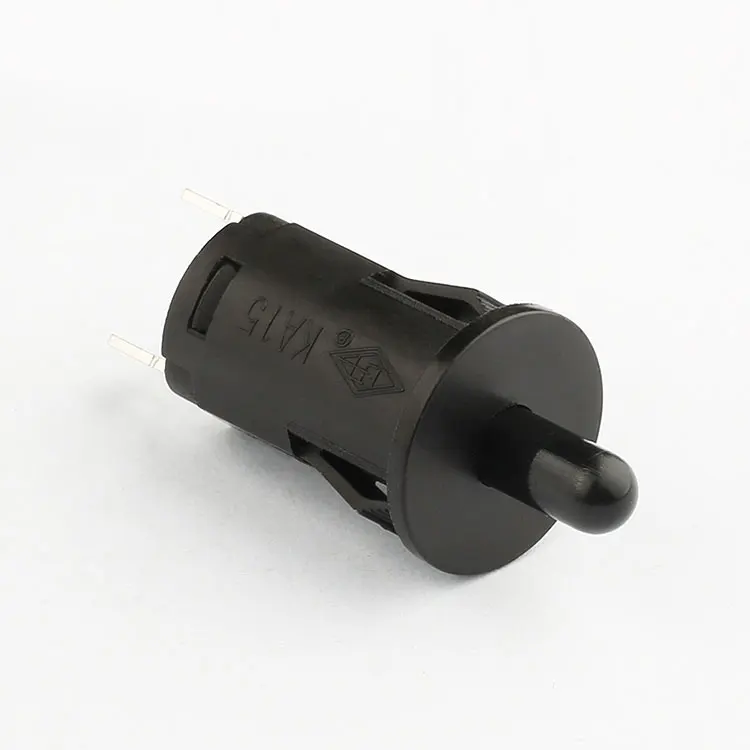

Our 12mm Black SPST Push Button Switch is engineered for excellence, featuring a 2-pin, 1A, 250VAC configuration, and a normally open (NO) momentary function. It offers low contact resistance and high insulation resistance, ensuring reliable electrical performance.
Why Choose Us?
As a factory direct supplier, we offer competitive pricing and flexible bulk ordering options. Our switch is certified by CQC, CE, and CB, guaranteeing compliance with international standards. Choose us for quality, reliability, and value.
Applications
Ideal for door switches and various control applications, our switch is perfect for businesses seeking reliable electrical components. Its durability and performance make it a preferred choice for a wide range of industries.
