Description

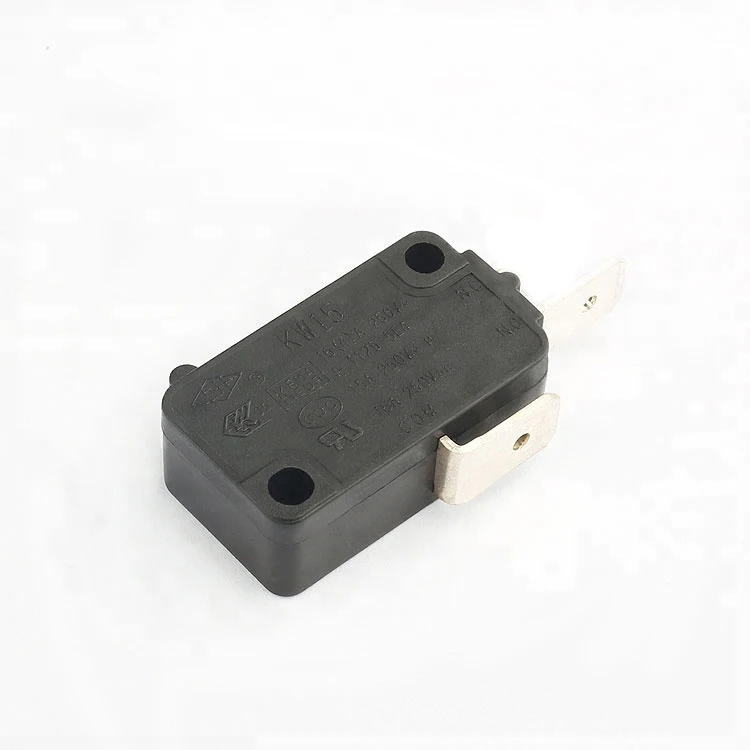

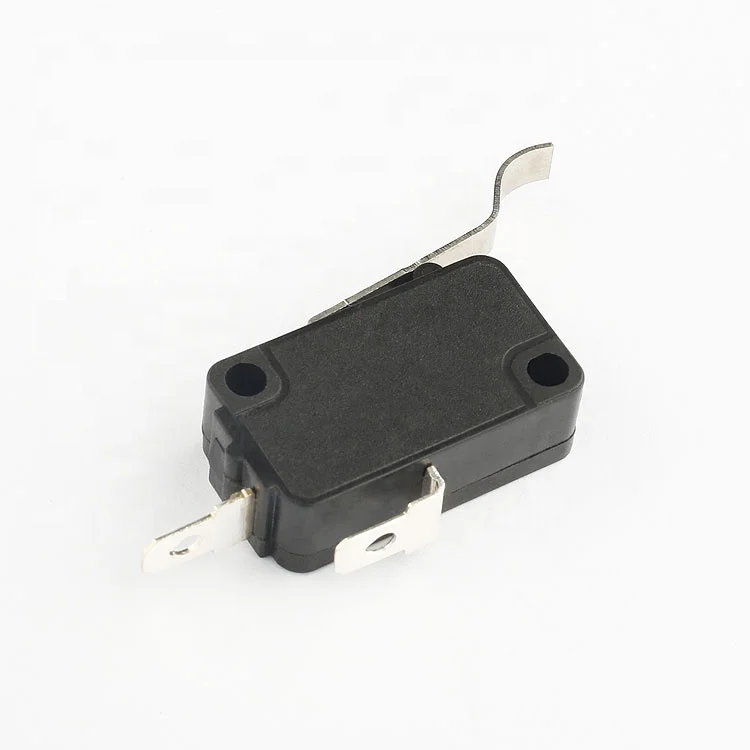

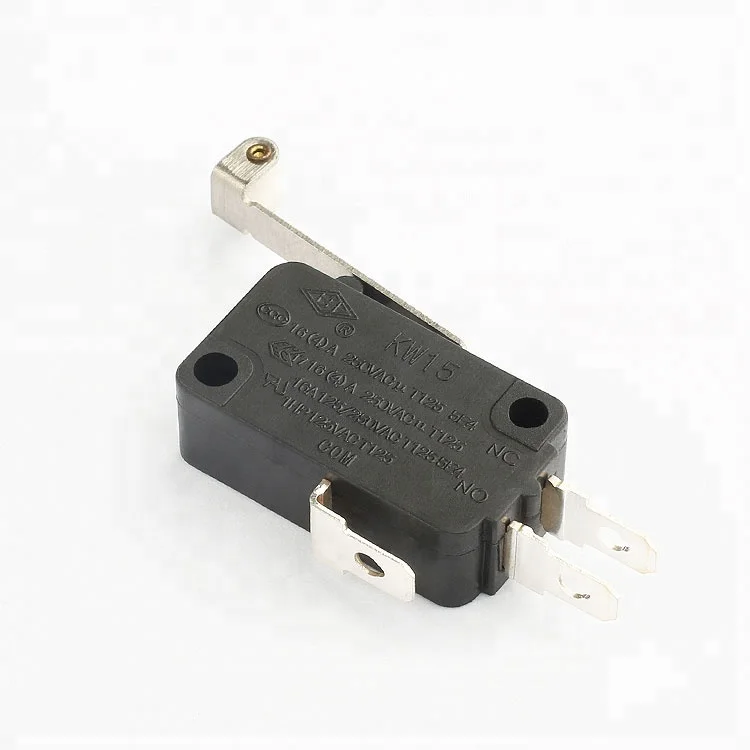

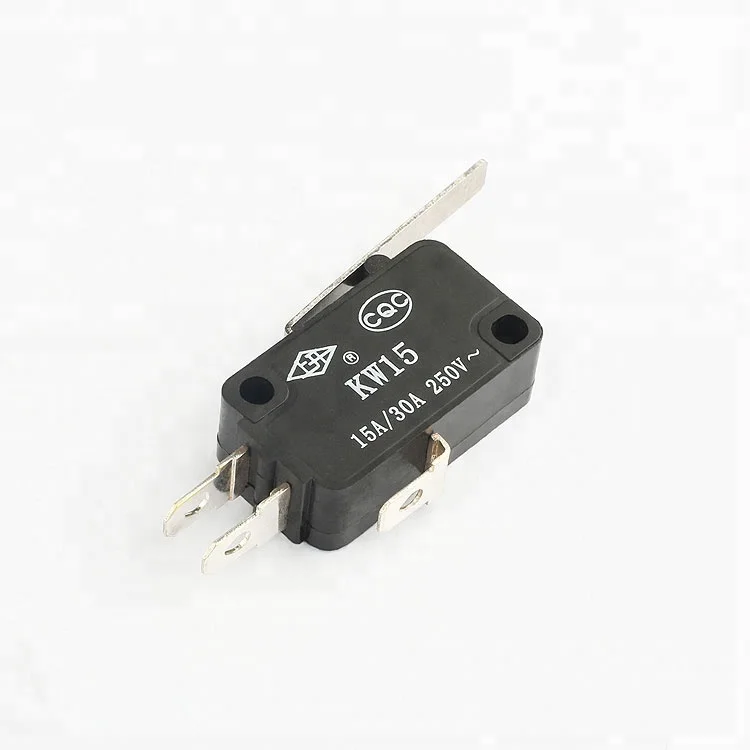

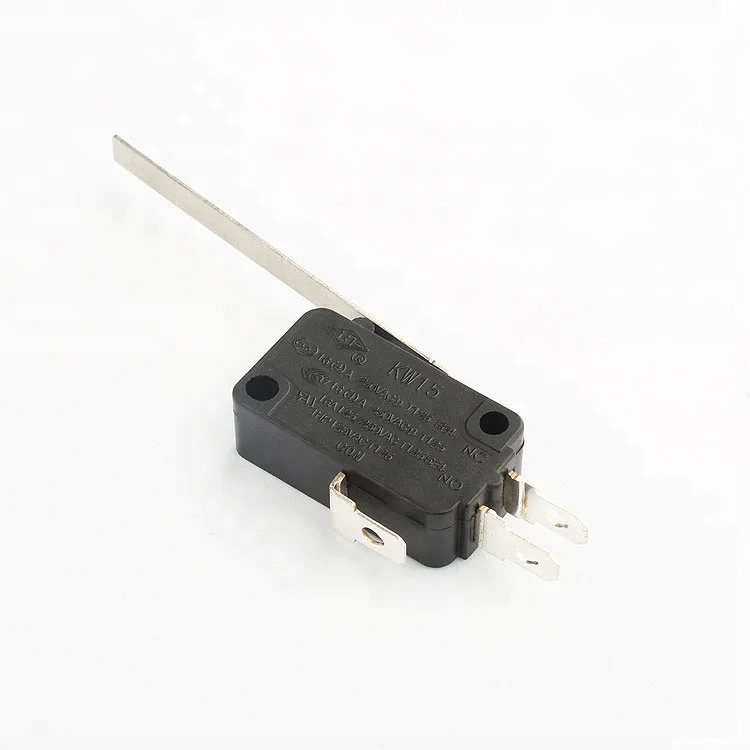

Our KW15 series black base micro switch is a high-quality product manufactured by Yongxing, a leading factory in Shanghai. Designed for small electric appliances such as automatic water vending machines, microwave ovens, water purifiers, electric heaters, mouse buttons, vacuum cleaners, and rice cookers, this micro switch stands out with its durability and reliability. With a mechanical life of up to 100,000 times, it ensures long-lasting performance. The switch features a rated current of 16A (with variations available such as 15A and 10A) and a rated voltage of 250V AC, making it suitable for a wide range of applications. It also boasts an IP40 ingress protection rating, ensuring it can withstand dust and water splashes. Certified by CQC, CE, ENEC17, and UL, our micro switch meets international safety standards. As a factory direct supplier, we offer wholesale pricing and flexible bulk order options, making it an ideal choice for businesses looking for high-quality micro switches at competitive prices. Our after-sales service is also top-notch, ensuring customer satisfaction.
| series | electronic life | Mechanical life (times) | use | Ingress protection | certificate | rated current | rated voltage | working temperature | Contact resistance | Insulation resistance | Withstand voltage |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | CQC,CE | 16(4)A | 250V AC T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | ENEC17 | 16(4)A | 250V AC T125 1E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | ENEC17 | 15A | 250V AC T125 1E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | ENEC17 | 10(3)A | 250V T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | UL | 16A | 125/250V AC T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | UL | 10(4)A | 125/250V AC T125 5E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
| KW15 | 50000 | 100000 | Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers | IP40 | UL | 16A | 1HP 125V AC T125 1E4 | -25℃~+125℃ | <=50mΩ | >=100MΩ | 1500V |
Why Choose Our Micro Switch?
Our micro switch is designed for durability and reliability, with a mechanical life of up to 100,000 times. It's perfect for small electric appliances, ensuring smooth operation and long-lasting performance.
What Are the Key Features?
Our micro switch features a rated current of 16A, a rated voltage of 250V AC, and an IP40 ingress protection rating. It's also certified by multiple international safety standards, ensuring quality and safety.
Why Buy from Us?
As a factory direct supplier, we offer wholesale pricing and flexible bulk order options. Our after-sales service is also excellent, ensuring you're satisfied with your purchase.
