Description
Product Overview

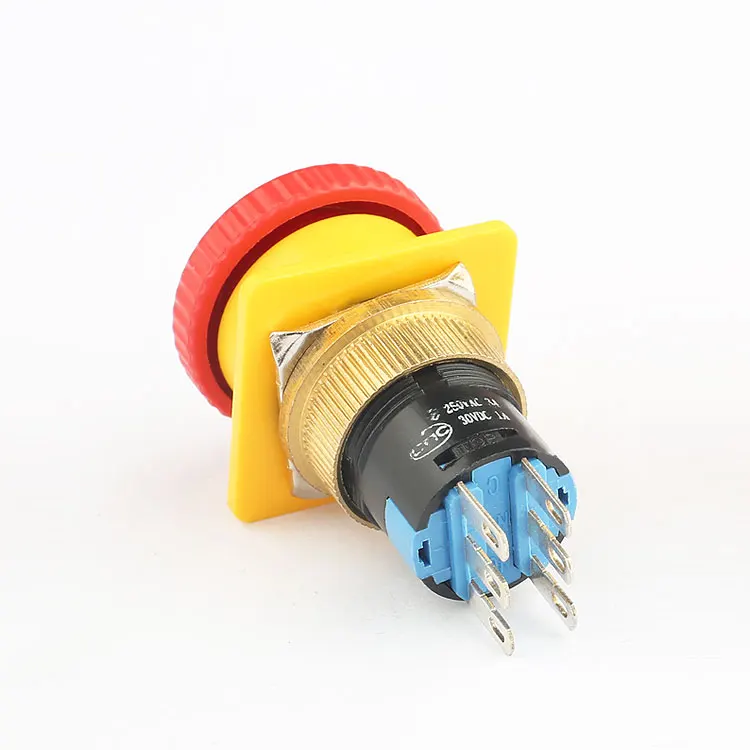

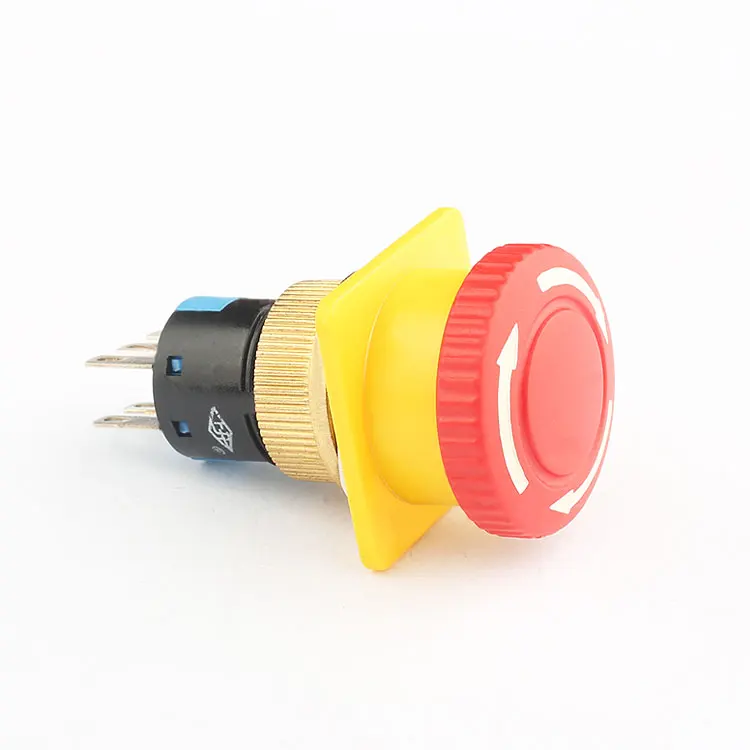

Our factory-direct wholesale 16mm IP44 mushroom emergency stop push button switch is a high-quality, reliable product designed for immediate safety shutdown in various industrial and commercial applications. As a trusted supplier, we offer competitive pricing and large inventory for bulk orders.

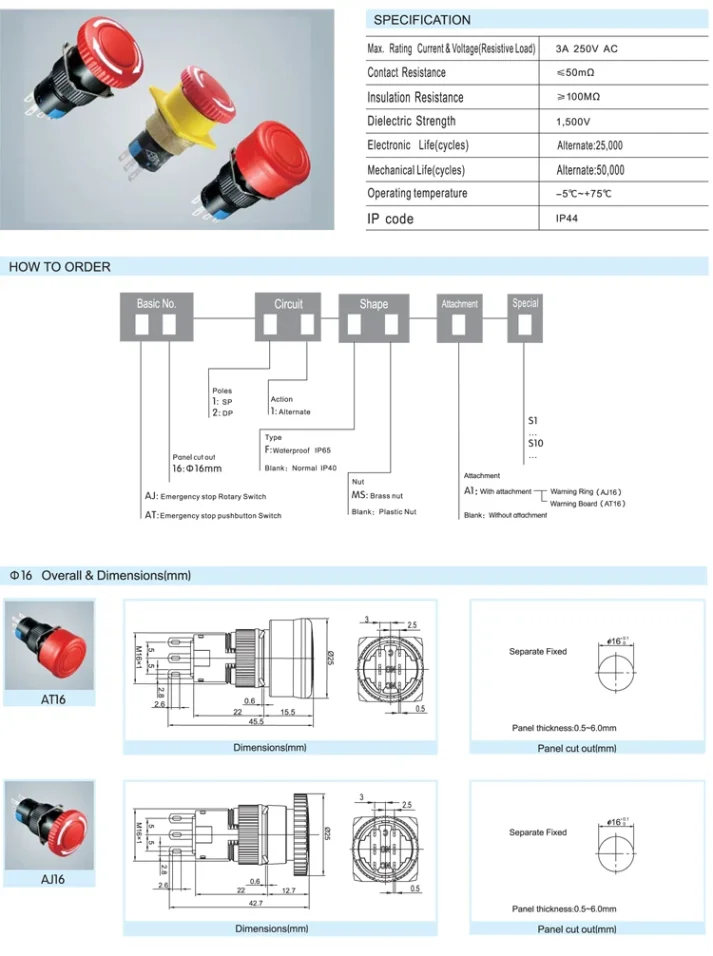

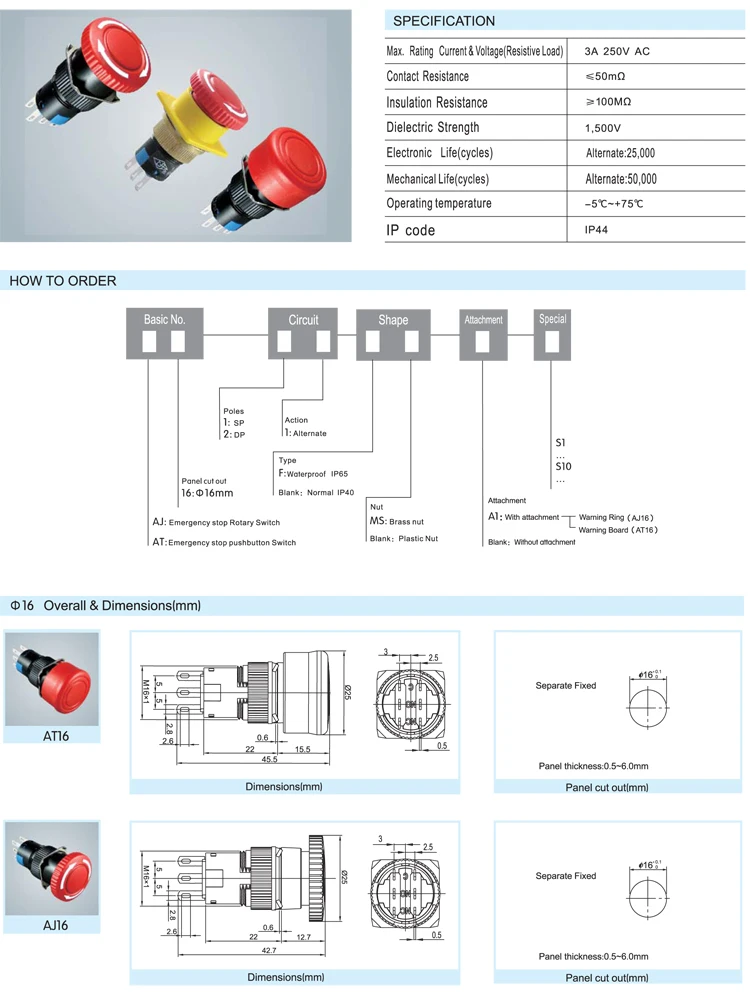

Key Specifications
- Brand Name: SK (Shangkai)
- Model Number: AJ16-21-MS-A1
- Protection Level: IP44
- Max. Current: 3A
- Max. Voltage: 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V
- Operating Temperature: -5°C to 75°C
- Electrical Life: 25,000 cycles
- Mechanical Life: 50,000 cycles
- Panel Cut Out: 16mm
- Panel Thickness: 0.5-6.0mm
- Attachment: Yellow warning ring
Product Advantages
Our emergency stop button switch stands out from competitors with its durable brass nut construction, high IP44 protection rating, and clear yellow warning ring for enhanced visibility. It is designed for quick and easy installation, with a compact 16mm panel cut out that fits most standard panels. The switch’s long electrical and mechanical life ensures reliable performance over time, reducing maintenance costs and downtime.
Applications
This emergency stop button is ideal for use in machinery, conveyor systems, elevators, and other industrial equipment where immediate shutdown is required for safety. Its robust design and high-quality materials make it suitable for harsh environments.
After-Sales Service
As a factory-direct supplier, we offer comprehensive after-sales service, including technical support, warranty coverage, and fast replacement of defective parts. Our goal is to ensure your complete satisfaction with our products and services.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
AJ16-21-MS-A1
|
|
Protection Level
|
IP44
|
|
Max. Current
|
3A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
5T75
|
|
Electrical Life
|
25000
|
|
Mechanical Life
|
50000
|
|
Nut
|
Brass nut
|
|
Attachment
|
Yellow warning ring
|
|
Panel cut out
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
Why Choose Our Emergency Stop Button?
Our emergency stop button is designed for immediate safety shutdown in industrial and commercial settings. With its high IP44 protection rating and durable brass nut construction, it ensures reliable performance even in harsh environments. The clear yellow warning ring enhances visibility, making it easy to locate in an emergency.
What Makes Our Product Stand Out?
Unlike competitors, our emergency stop button offers a long electrical and mechanical life, reducing maintenance costs and downtime. Its compact 16mm panel cut out fits most standard panels, and the factory-direct pricing ensures you get the best value for your money.
How Does It Benefit Your Business?
By choosing our factory-direct wholesale emergency stop button, you benefit from competitive pricing, large inventory availability, and comprehensive after-sales service. Our goal is to help you keep your operations safe and efficient, while minimizing costs and maximizing reliability.
