Description
This switch features a plastic construction with a round head and pin terminals, making it durable and easy to install. It operates at a maximum current of 1A and voltage of 250V AC, with an impressive electronic life of 10,000 cycles for momentary operation and 5,000 cycles for alternate operation. The mechanical life is even longer, at 50,000 cycles for momentary and 100,000 cycles for alternate operation.
The switch also boasts low contact resistance (≤50mΩ), high insulation resistance (≥100MΩ), and a dielectric strength of 1500V, ensuring safety and reliability. It operates within a temperature range of -25℃ to +55℃ and has an IP40 protection level, with an optional upgrade to IP67 available.
What sets our switch apart is its customizable switching voltage, allowing you to tailor it to your specific needs. Plus, with our factory-direct pricing and bulk purchasing options, you can save even more. Trust us as your reliable supplier for all your push button switch needs.
|

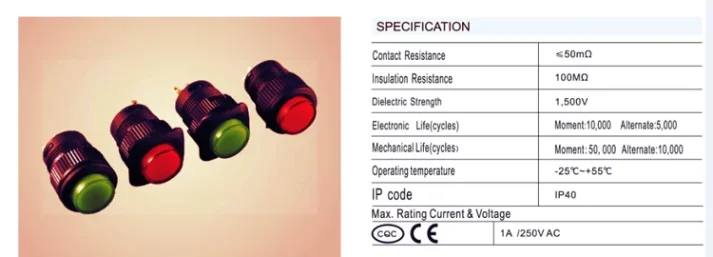

Contact resistance |
≤50mΩ |
|
Insulation resistance |
≥100MΩ |
|
Dielectric strength |
1500v |
|
Electronic life (cycles) |
Moment:10000 Alternate:5000 |
|
Mechanical life (cycles) |
Moment:50000 Alternate:100000 |
|
Operating temperature |
25T55 |
|
IP code |
IP40 |
|
Max.Rating Current&Voltage |
1A/250V AC |
|
Certification |
CQC, CE |
Why Choose Our 16mm Momentary Latching Push Button Switch?
Our 16mm Momentary Latching Push Button Switch stands out for its durability, reliability, and customization options. With a plastic construction and round head, it's designed to withstand regular use and is easy to install. The customizable switching voltage allows you to tailor it to your specific application needs.
What Are the Key Features of This Switch?
Key features include low contact resistance, high insulation resistance, and a long mechanical life. It operates at a maximum current of 1A and voltage of 250V AC, with an impressive electronic life of 10,000 cycles for momentary operation. The switch also has a dielectric strength of 1500V, ensuring safety and reliability.
Why Buy From Us as a Supplier?
As a factory-direct supplier, we offer competitive wholesale prices and quality assurance with certifications like CQC, CE, and ROHS. We provide bulk purchasing options, allowing you to save even more. Trust us as your reliable partner for all your push button switch needs.
