Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-W-W-01/CQC-X
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1, 16.5x13mm panel cutout
|
|
Contact Piece Code
|
B, 4.8×0.8x8mm
|
|
Color
|

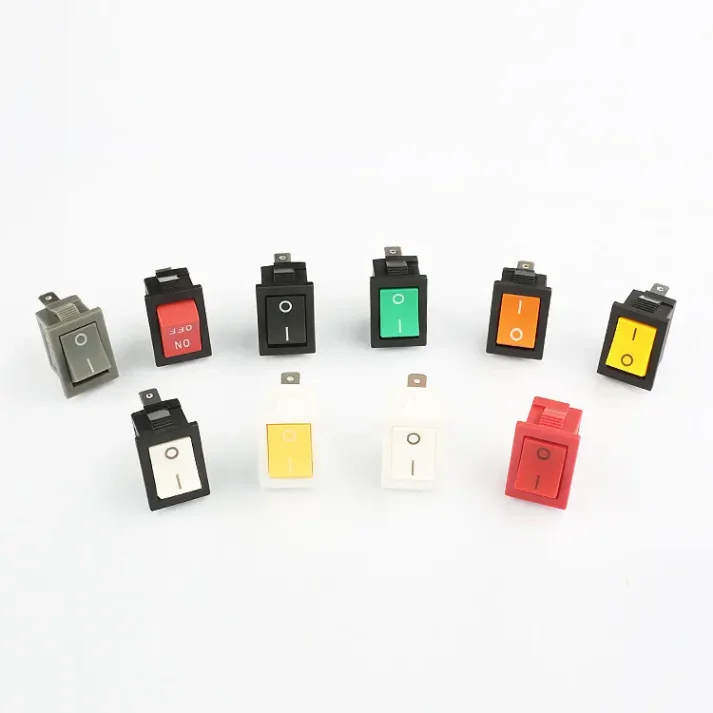

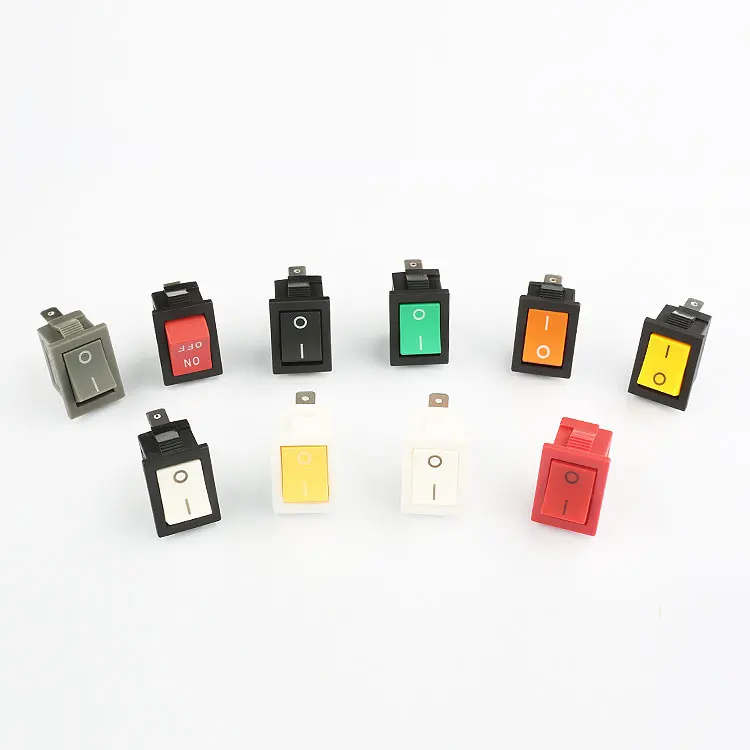

Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|

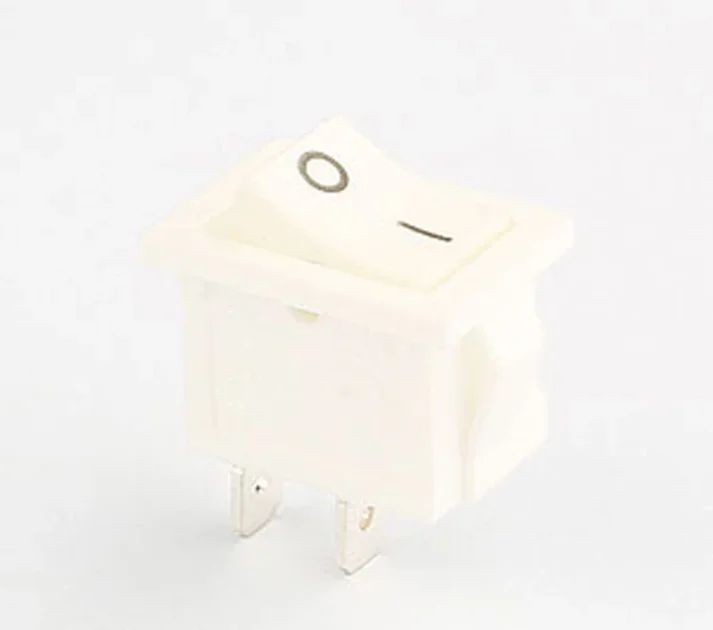

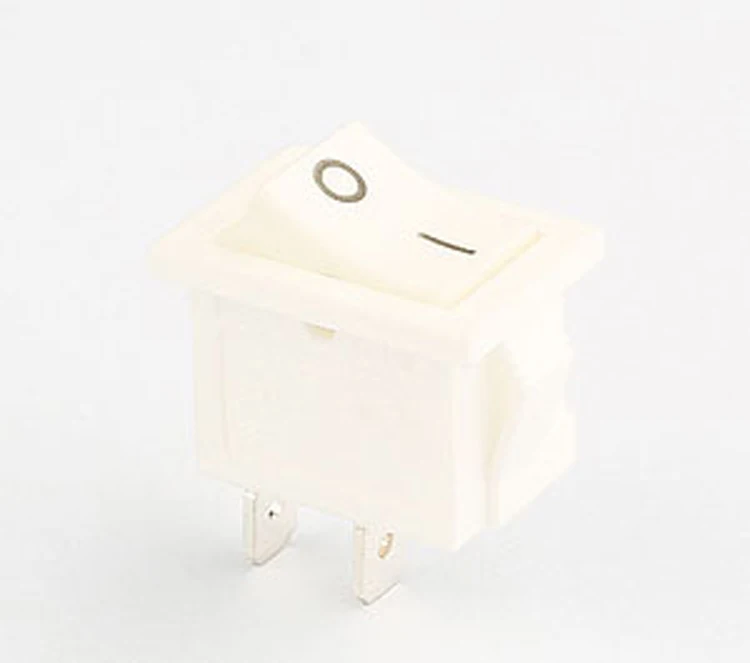

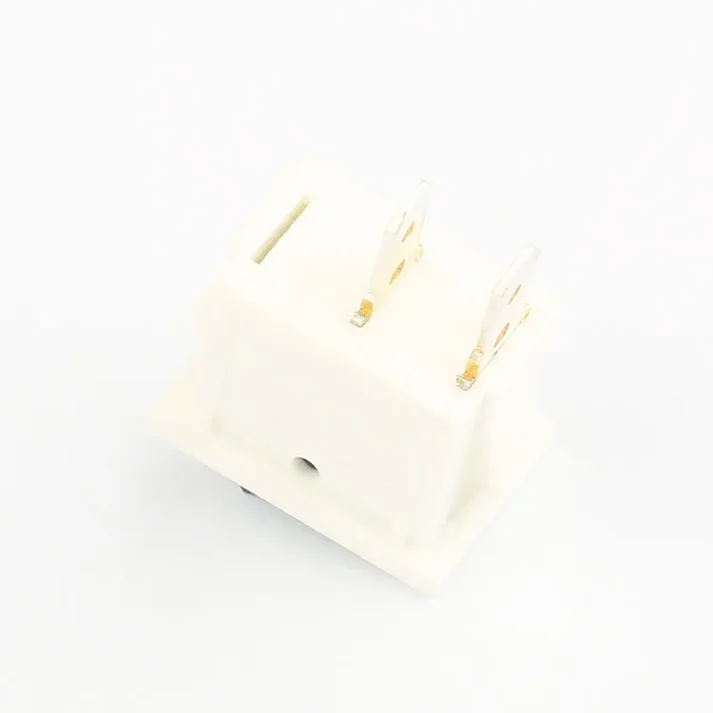

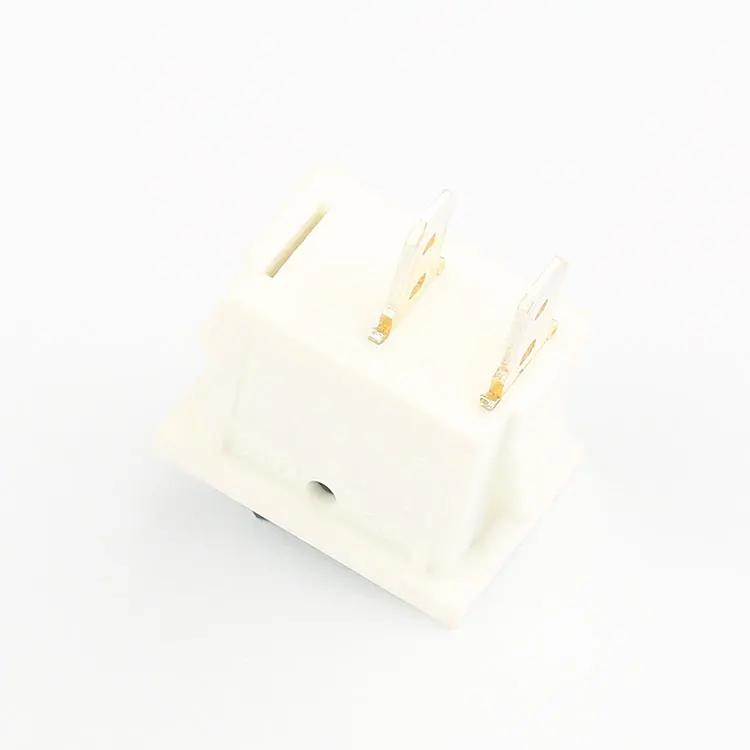

SPST On Off 2Pin Rocker Switch
|
Why Choose Our SPST Rocker Switch?
Our SPST Rocker Switch stands out with its compact design, high durability, and wide range of color options. As a factory-direct supplier, we offer competitive pricing without sacrificing quality. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, our switch ensures long-lasting performance. It's perfect for electronic devices, electrical controls, and any application where space is a premium.
What Are the Key Features of Our Switch?
Our switch features a 21x15mm size, 6A 250VAC rating, and SPST circuit. It's available in multiple colors to match your design needs. Additionally, it's certified with CB, ENEC17, and ROHS, ensuring compliance with international standards. Choose our switch for reliable performance and peace of mind.
How Can Our Switch Benefit Your Business?
As a wholesale supplier, we offer bulk pricing and flexible ordering options. Our switch's high durability and long mechanical life mean fewer replacements and lower maintenance costs. Customize your order with multiple color options to meet your specific design requirements. Choose our factory-direct SPST Rocker Switch for superior value and performance.
