Description

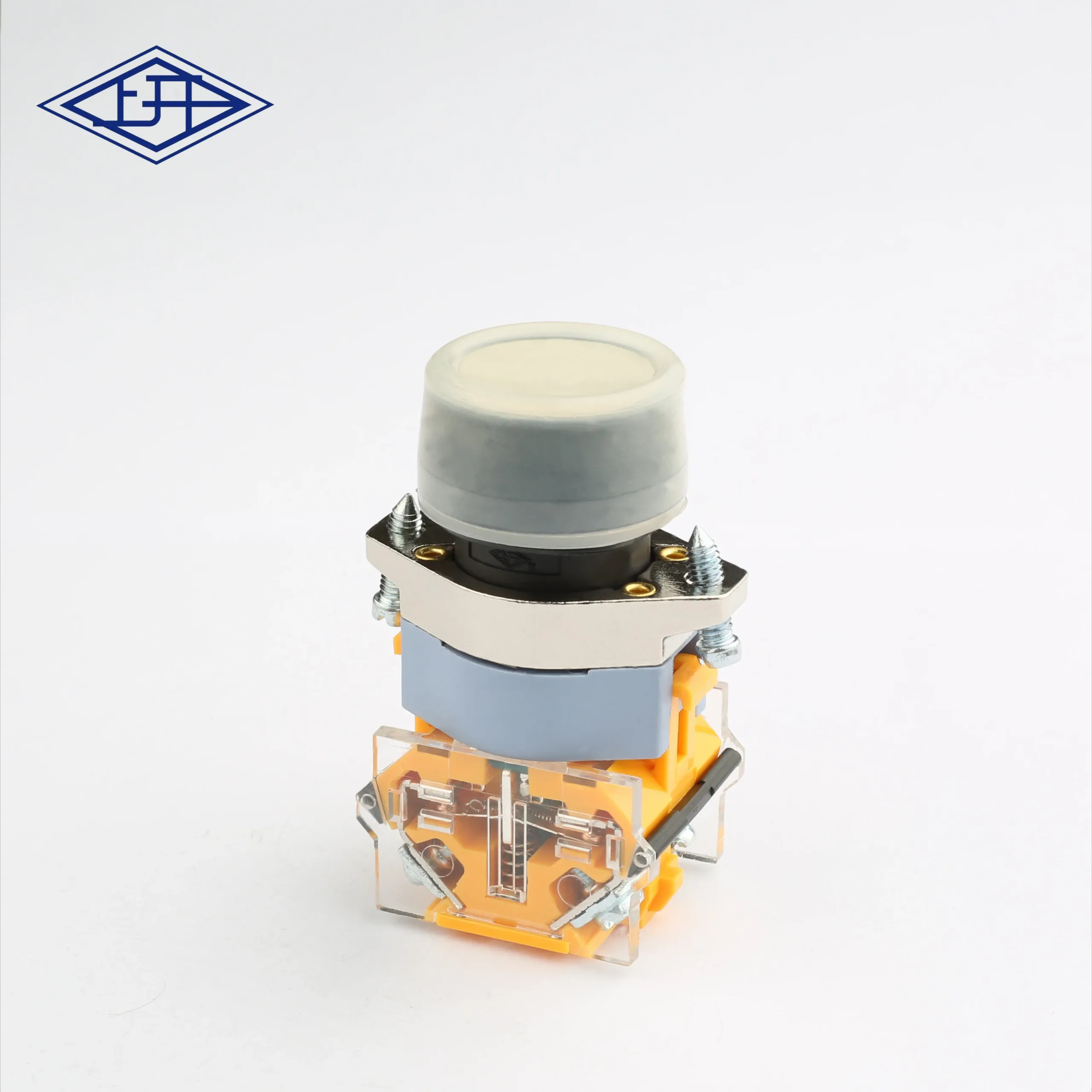

Premium Quality 22mm Momentary 1NO1NC Push Button Switch – Wholesale from Factory
Looking for a reliable push button switch for your industrial or commercial needs? Our 22mm Momentary 1NO1NC Push Button Switch is the perfect choice. As a direct factory supplier, we offer wholesale pricing and customization options to meet your specific requirements.
Product Specifications:
- Model Number: LA133-A1.P/H11
- Size: 22mm
- Rated Voltage: 24V
- Max. Voltage: 380V
- Max. Current: 6A
- Rated Thermal Current: 10A
- IP Level: IP40 (IP41 available)
- Electrical Life: 250,000 cycles
- Mechanical Life: 250,000-600,000 cycles
- Operating Temperature: -25°C to 55°C
Product Advantages:
- High Durability: With a mechanical life of up to 600,000 cycles, our switch is built to last.
- Customization: We can customize the switch according to your needs, including voltage, current, and IP level.
- Factory Direct: As a factory supplier, we eliminate the middleman, offering you the best prices.
- Quality Assurance: Our company has independent plants, injection molding workshops, and advanced experimental equipment, ensuring top-notch quality.
After-Sales Service: We provide comprehensive after-sales service, including technical support and warranty coverage. Contact us today for more information!
| Rated insulation voltage | AC380V |
| Max. insulation voltage | 2500V/min |
| Rated thermal current | 10A |
| Anti vibration | 10~2000Hz.1mm.15g |
| Operating temperature | -25-55℃ |
| IP code | IP40 |
| Rating current | 6A |
| Mechanical life | 250,000-600,000 cycles |
Why Choose Our 22mm Momentary 1NO1NC Push Button Switch?
Our 22mm Momentary 1NO1NC Push Button Switch stands out from the competition due to its high durability, customization options, and factory-direct pricing. With a mechanical life of up to 600,000 cycles, it ensures long-lasting performance in industrial and commercial applications.
Key Features and Benefits
The switch features a 22mm size, 24V rated voltage, and 380V max voltage, making it suitable for a wide range of applications. Additionally, its 1NO1NC configuration and momentary operation provide flexibility in control systems. As a factory supplier, we offer customization options to meet your specific needs, including voltage, current, and IP level adjustments.
After-Sales Support and Warranty
We understand the importance of reliable after-sales support. That's why we provide comprehensive technical support and warranty coverage for our products. Contact us today to learn more about our 22mm Momentary 1NO1NC Push Button Switch and how it can benefit your business.
