Description

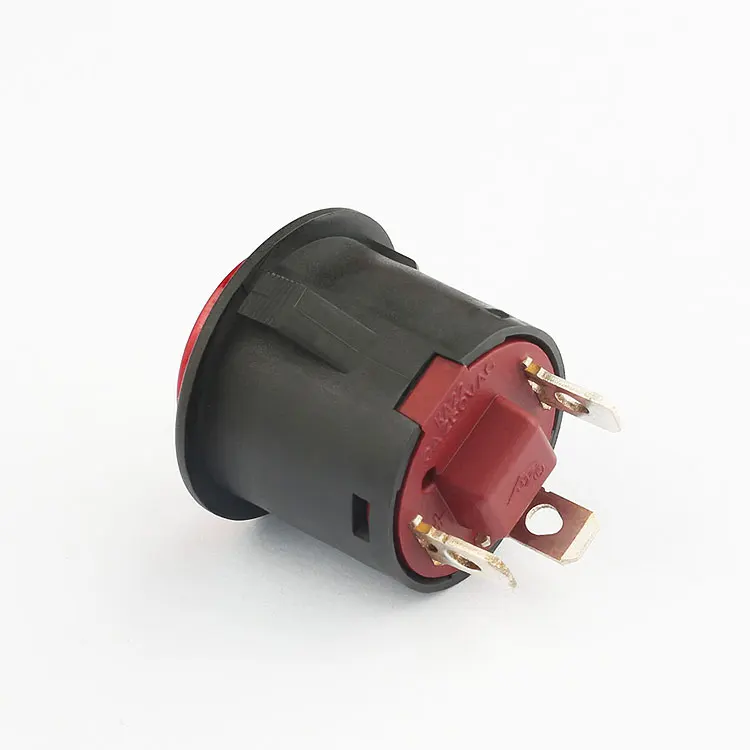

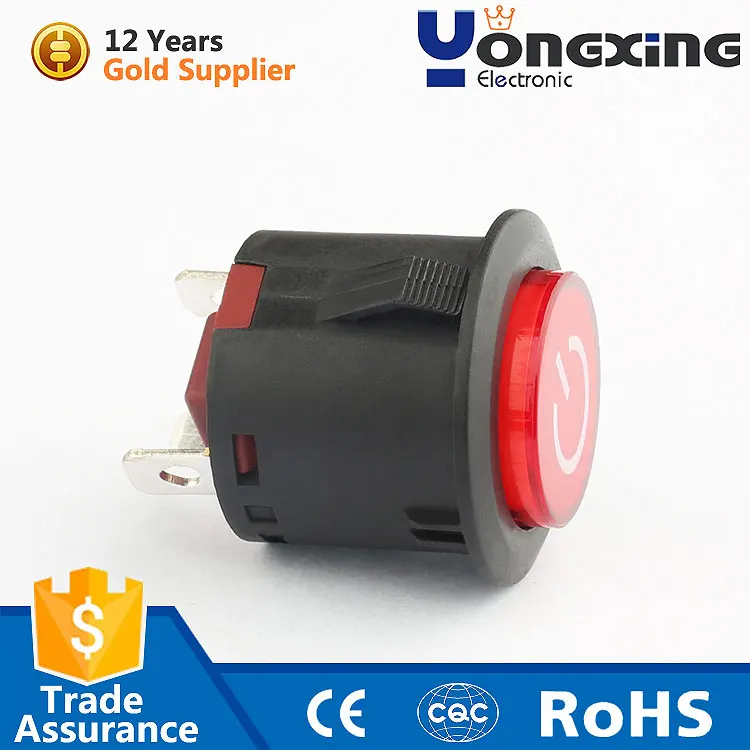

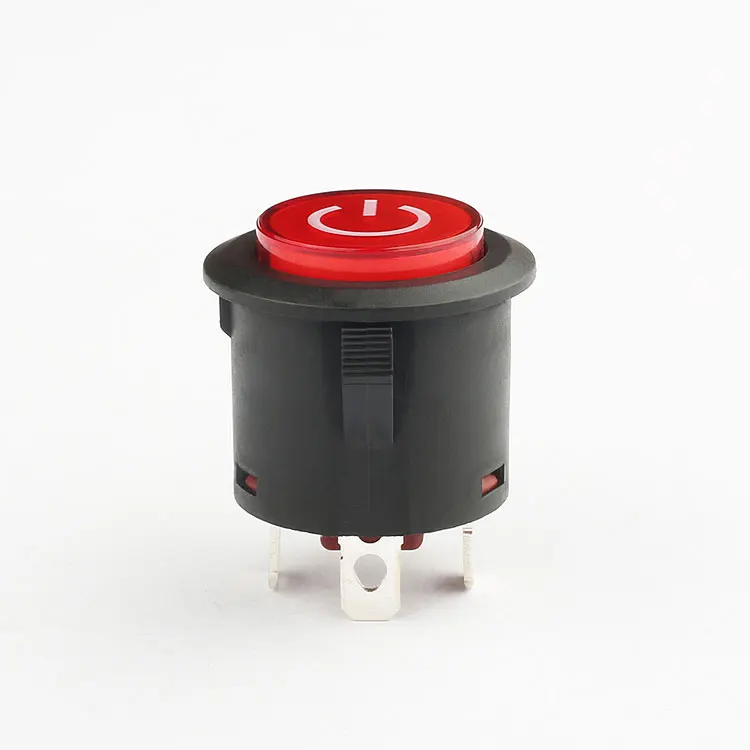

Our 22mm Red LED Latching Push Button Switch, available for wholesale directly from the factory, is a top-notch choice for your electrical needs. With a 12VDC LED light, it offers clear indication and easy operation. This switch is designed with a plastic body, ensuring durability and lightweight construction. Its latching mechanism ensures reliable performance, making it ideal for various applications. Key specifications include a max current of 10(3)A / 16(4)A, max voltage of 250VAC, IP40 protection level, and a mechanical life of 20,000 cycles. It is also certified by CQC, CE, and CB, guaranteeing quality and safety. The switch features a round head, pin terminal, and can be easily mounted with a 22mm diameter hole on panels with a thickness of 1.5~3mm. Operating temperature ranges from -25℃ to +85℃, making it suitable for a wide range of environments. As a direct supplier, we offer competitive pricing and flexible MOQ options. Choose our switch for its reliability, durability, and cost-effectiveness.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai) yongxing
|
|
Model Number
|
KA22-11L-AAA-BR12D-03
|
|
Protection Level
|
IP40
|
|
Max. Current
|
10(3)A / 16(4)A
|
|
Max. Voltage
|
250VAC
|
|
Contact Resistance
|
50m Max
|
|
Insulation Resistance
|
100M Min
|
|
Dielectric Strength
|
1500V 1min
|
|
Mechanical Life
|
20000
|
|
Electrical Life
|
10000
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CE CB
|
|

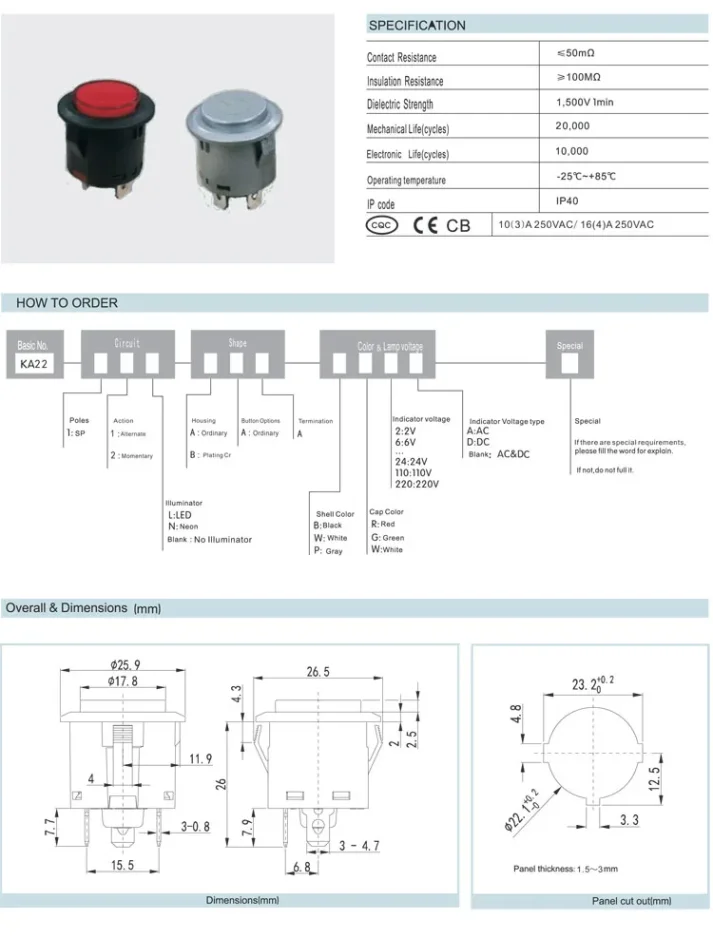

Mounting Hole Size
|
22mm Diameter
|
|
Panel thickness
|
1.5~3mm
|
Why Choose Our 22mm Red LED Latching Push Button Switch?
Our switch stands out with its durable plastic construction, clear LED indication, and reliable latching mechanism. It's designed for easy operation and long-lasting performance, making it ideal for various applications.
What Are the Key Specifications?
With a max current of 10(3)A / 16(4)A, max voltage of 250VAC, and IP40 protection level, our switch ensures safety and reliability. It also has a mechanical life of 20,000 cycles and is certified by CQC, CE, and CB.
How Does It Benefit Your Business?
As a direct supplier, we offer competitive pricing and flexible MOQ options. Our switch's durability, reliability, and cost-effectiveness make it a smart choice for your electrical needs, helping you save money and increase efficiency.
