Description

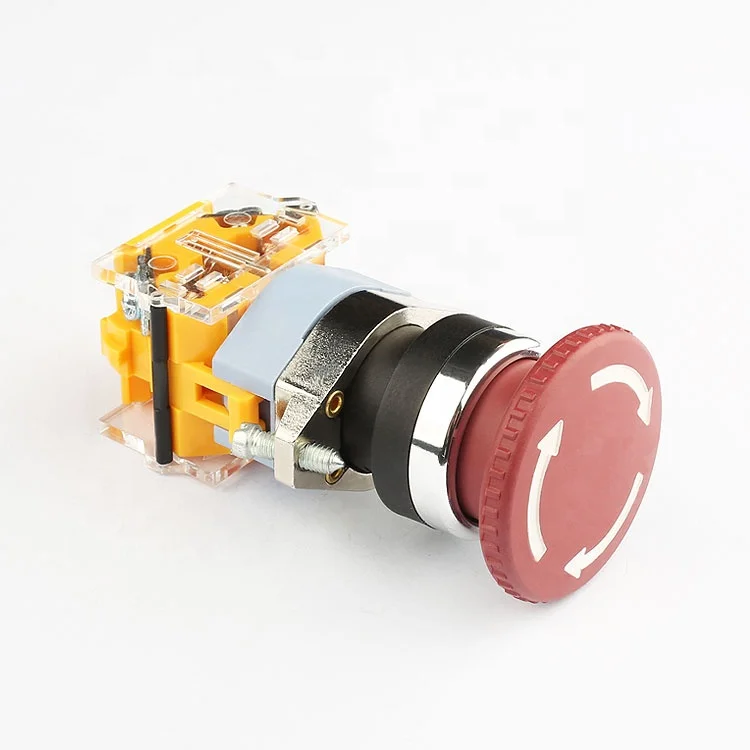

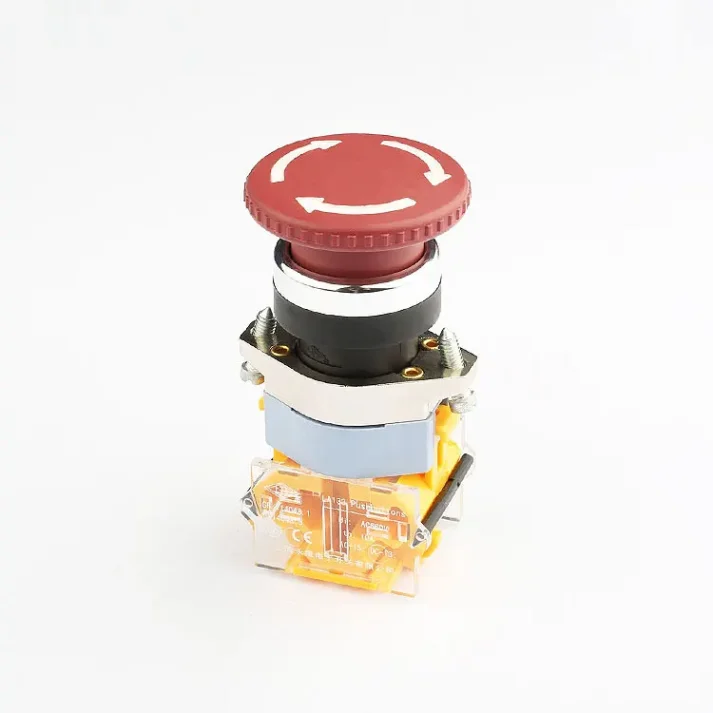

Factory Direct Wholesale 22mm Red Mushroom Emergency Push Button Switch
As a direct supplier from the factory, we offer high-quality 22mm red mushroom emergency push button switches at wholesale prices. Our company boasts an independent plant, an injection workshop, and advanced experimental equipment, ensuring top-notch product quality. With over 60 senior engineers and workshops adhering to 5S and 5m management standards, we can customize switches to meet your specific requirements if you order in sufficient quantity.
Product Specifications:
- Max. Current & Voltage: 16A, 250V
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V
- Electronic Life: 25,000
- Mechanical Life: 50,000
- Operating Temperature: -5°C to 75°C
- IP Level: IP41 (adjustable to IP65)
- Switch Combination: 1NO1NC
- Head Type: Round Mushroom
- Terminal Type: Pin Terminal
- Material: Plastic
- Structure: Mechanical
- Size: 22mm
Product Advantages:
Our switches stand out in the market with their long mechanical life of 50,000 cycles and electronic life of 25,000 cycles, ensuring durability and reliability. The IP41 protection level (adjustable to IP65) provides excellent dust and water resistance, making them suitable for various environments. Additionally, our factory-direct pricing and customization capabilities give you a competitive edge.
After-Sales Service:
We offer comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any questions or concerns.
| max.rating cnrrent&voltage | 3A 250vac |
| contact resistance | ≤50mΩ |
| insulation resistance | ≥100MΩ |
| dielectrice resistance | 1500V |
| electronic life | 25000 |
| mechanical life | 50000 |
| operating temperature | -5℃—75℃ |
| ip code | ip44 |
Why Choose Our 22mm Red Mushroom Emergency Push Button Switch?
Our 22mm red mushroom emergency push button switch is designed for reliability and durability. With a long mechanical life of 50,000 cycles and electronic life of 25,000 cycles, it ensures consistent performance in critical situations. The IP41 protection level (adjustable to IP65) provides excellent dust and water resistance, making it suitable for various environments, including home appliances and industrial equipment.
Customization and Wholesale Pricing
As a factory-direct supplier, we offer customization options to meet your specific requirements. Whether you need a different switch combination, terminal type, or IP level, we can tailor the product to your needs. Additionally, our wholesale pricing ensures you get the best value for your money.
After-Sales Support and Warranty
We stand behind our products with comprehensive after-sales support and warranty coverage. Our dedicated team is always available to assist you with technical questions, troubleshooting, or warranty claims. Choose our 22mm red mushroom emergency push button switch for peace of mind and reliable performance.
