Description
Key Specifications:
– Max. Current: 1A
– Max. Voltage: 250VAC
– IP Level: IP40
– Operating Temperature: -25°C to +55°C
– Electronic Life: 10,000 cycles (momentary), 5,000 cycles (alternate)
– Mechanical Life: 50,000 cycles (momentary), 100,000 cycles (alternate)
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥100MΩ
– Dielectric Strength: 1,500V
– Certifications: CQC, CE
Product Advantages:

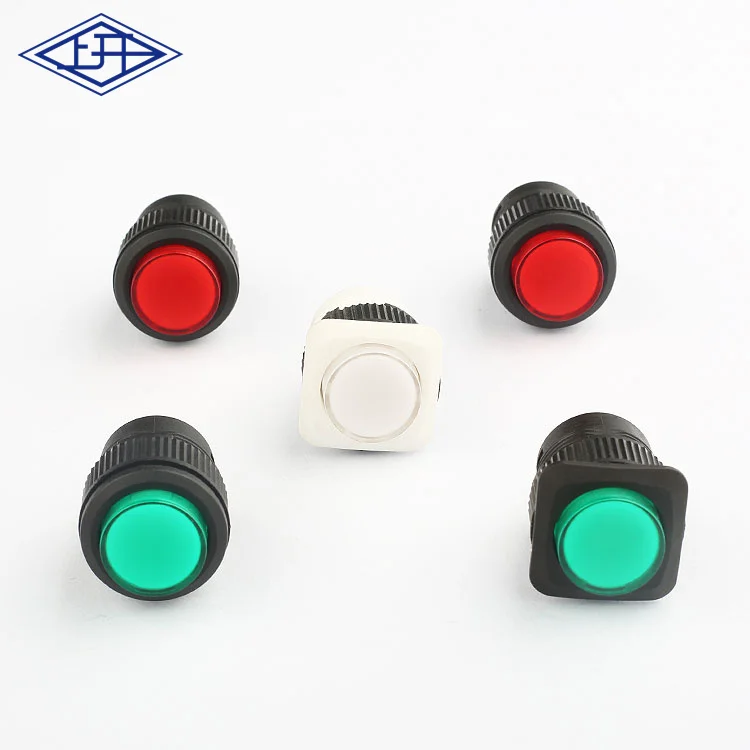

1. Customization: We offer button color customization to match your brand’s aesthetic.
2. High Durability: Long mechanical and electronic life ensures reliability in high-usage environments.
3. Safety Certified: Meets international safety standards with CQC and CE certifications.
4. Factory Direct: Skip the middleman and enjoy competitive pricing directly from our factory.
Applications:
Ideal for use in control panels, machinery, automotive applications, and more. Its compact 16MM size makes it suitable for space-constrained installations.
After-Sales Service:
We provide comprehensive after-sales support, including technical assistance and warranty services. Our dedicated team ensures your satisfaction with every purchase.
| Contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ |
| Dielectric strength | 1500v |
| Electronic life (cycles) | Moment:10000 Alternate:5000 |
| Mechanical life (cycles) | Moment:50000 Alternate:100000 |
| Operating temperature | 25T55 |
| IP code | IP40 |
| Max.Rating Current&Voltage | 1A/250V AC |
| Certification | CQC, CE |
Why Choose Our 250V 1A Push Button Switch?
Our push button switch is designed for durability and customization, making it ideal for industrial and commercial applications. With a long mechanical and electronic life, it ensures reliability in high-usage environments, reducing maintenance costs and downtime.
What Makes Our Switch Stand Out?
Unlike competitors, we offer button color customization to match your brand's aesthetic. Additionally, our factory-direct pricing means you get competitive rates without sacrificing quality or service.
What Are the Key Applications?
Perfect for control panels, machinery, automotive applications, and more. Its compact 16MM size makes it suitable for installations where space is limited, ensuring flexibility in design and installation.
