Description

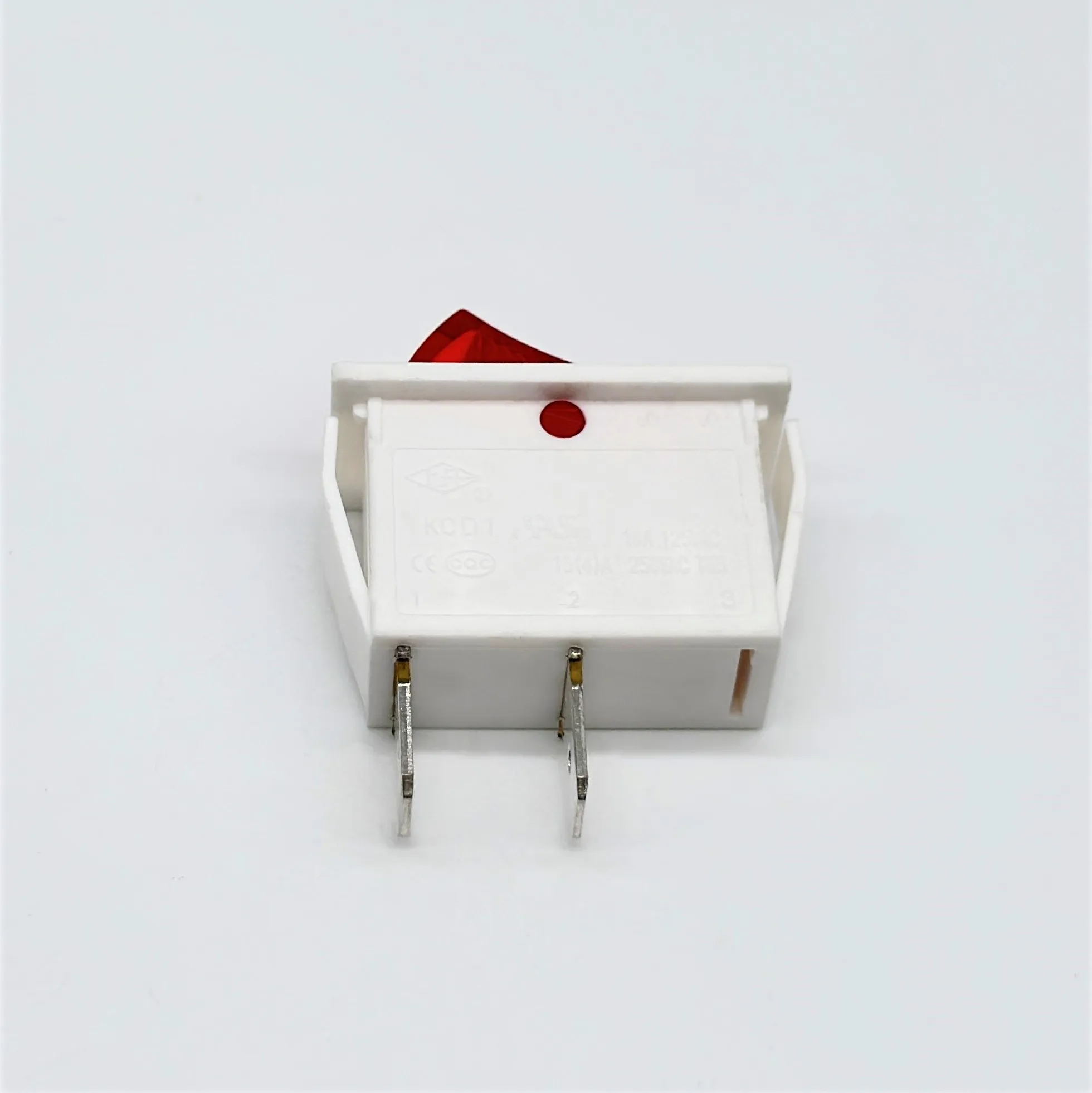

Our switch features a SPST circuit, 16A current rating, and 250V AC voltage rating, making it suitable for a wide range of applications. The red LED light indicates the switch’s status, providing clear visual feedback.
With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, our switch is built to last. It also boasts low contact resistance (≤50mΩ) and high insulation resistance (≥1000MΩ), ensuring safe and efficient operation.
Our switch is CE, UL, CQC, CB, ENEC17, and ROHS certified, guaranteeing its quality and compliance with international standards. The white housing and red rocker design add a touch of style to any appliance.
As a trusted supplier, we offer competitive pricing, fast shipping, and excellent customer service. Choose our 3 Pin Rocker Switch with Red LED Light for your next project and experience the difference in quality and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD1-11N-CA5C-W-R-01/DC24V/UL
|
|
Current Rating
|
16A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50,000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A5 27.4×10.7mm
|
|
Contact Piece Code
|
C 6.3X0.8X9.5mm standard
|
|
Lamp voltage
|
DC24V
|
Why Choose Our 3 Pin Rocker Switch with Red LED Light?
Our 3 Pin Rocker Switch with Red LED Light stands out from the competition due to its durability, reliability, and clear visual feedback. The red LED light indicates the switch's status, making it easy to see at a glance whether the appliance is on or off. The switch's high current and voltage ratings, along with its long mechanical and electronic life, ensure that it will perform reliably over time.
What Are the Key Features of Our Switch?
Our switch features a SPST circuit, 16A current rating, and 250V AC voltage rating. It also has a red LED light for status indication, low contact resistance (≤50mΩ), and high insulation resistance (≥1000MΩ). The switch is CE, UL, CQC, CB, ENEC17, and ROHS certified, guaranteeing its quality and compliance with international standards.
What Are the Benefits of Buying from a Factory Direct Supplier?
As a factory direct supplier, we offer competitive pricing, fast shipping, and excellent customer service. Buying directly from the factory eliminates the middleman, allowing you to save money and get your products faster. We also have strict quality control measures in place to ensure that every switch meets our high standards.
