Factory Direct Wholesale 3A 250V Round LED Push Button Switch Supplier

$1.30
0 reviews

Wholesale 3A 250V LED Push Button Switch from Factory Supplier

Description

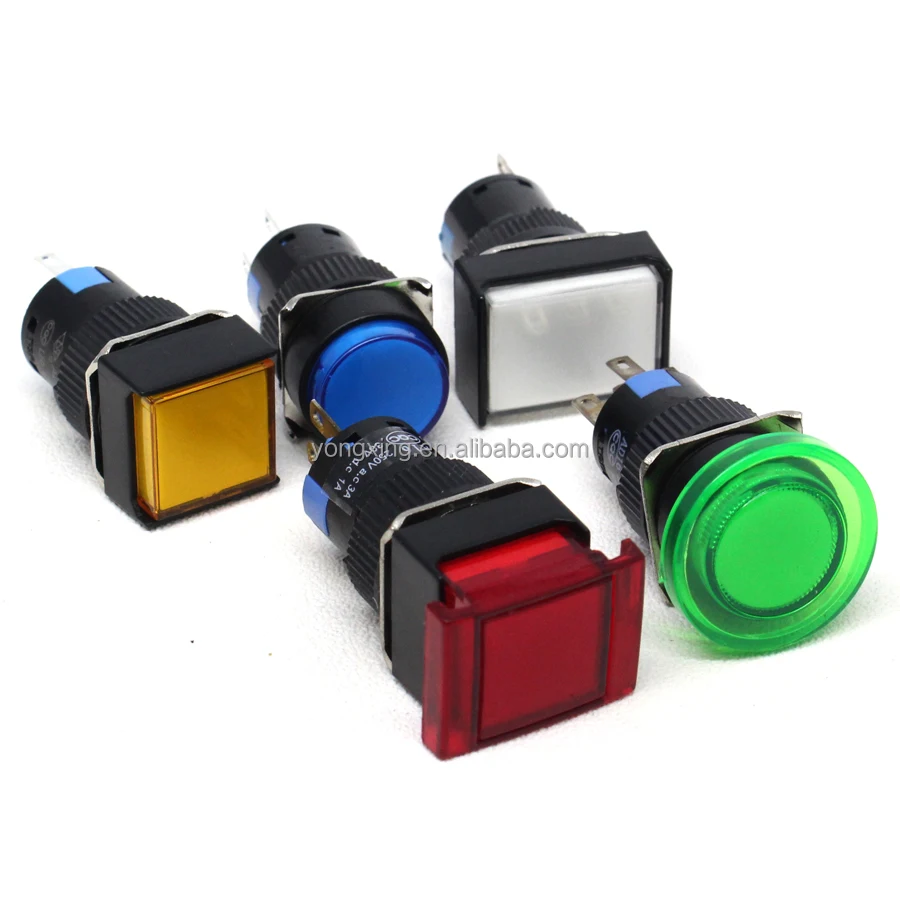

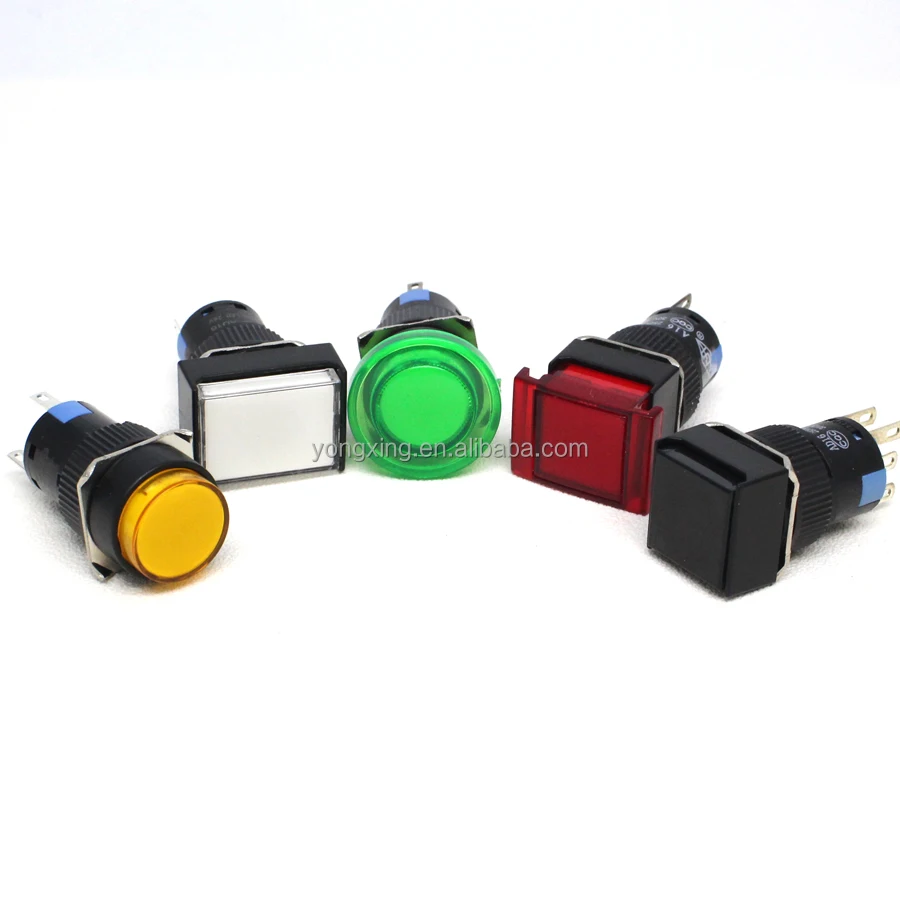

Introducing our high-quality 3A 250V Round LED Push Button Switch, a product designed for durability and efficiency. As a factory direct supplier, we offer wholesale prices on this versatile switch, perfect for a wide range of applications. With a maximum rating of 3A/250V AC and a contact resistance of ≤50mΩ, this switch ensures reliable performance. It features a long lifespan of approximately 50,000 hours, with LED colors available in red, green, blue, yellow, and orange. The cap color options include red, green, blue, yellow, orange, black, white, and gray, allowing for customization to fit your needs. Our switch is made from high-quality PA66 material, ensuring durability and resistance to wear and tear. It is certified by CQC, CE, and ROHS, guaranteeing its safety and compliance with international standards. With an IP40 protection level, it is suitable for use in various environments. The switch is available in 1NO1NC and 2NO2NC combinations, with alternate and moment action options. It also supports indicator voltages of 2V, 6V, 12V, 24V, 110V, and 220V, making it versatile for different electrical systems. Operating temperatures range from -5℃ to +75℃, ensuring reliable performance in various conditions. As a trusted supplier, we offer excellent after-sales service, ensuring your satisfaction with your purchase.
Operating Voltage 2V 6V 12V 24V 110V 220V Lifespan
Current Less than 15mA Less than 5mA About 50000hours(but the brightness will be weaken as the life of using plus
LED color Red Green Blue Yellow Orange
Cap color Red Green Blue Yellow Orange Black White Gray
Max.Rating Current & Voltage(Resistive Load) 3A/250V AC
Contact Resistance ≤50mΩ
Insulation Resistance ≥1000 MΩ
Dielectric Strength 1500V
Electronic Life(cycles) 50000
Mechanical Life(cycles) 200000
Operating temperature -5°c~+75°c
IP code IP40

Electronic component for cross-border e-commerceHigh-quality electronic device for saleLatest electronic gadget for e-commerceElectronic accessory for cross-border tradePremium electronic product for e-commerceNew electronic item for cross-border marketAdvanced electronic device for online salesEssential electronic component for e-commerceInnovative electronic gadget for trade


Why Choose Our LED Push Button Switch?

Our LED Push Button Switch stands out for its durability, efficiency, and versatility. With a long lifespan of approximately 50,000 hours, it ensures reliable performance over time. The multiple LED color options and customizable cap colors allow for easy integration into various designs and applications.

What Are the Key Features of Our Switch?

Our switch features a maximum rating of 3A/250V AC, a contact resistance of ≤50mΩ, and insulation resistance of ≥1000 MΩ. It supports various indicator voltages and is made from high-quality PA66 material, ensuring durability and resistance to wear and tear. The IP40 protection level makes it suitable for use in various environments.

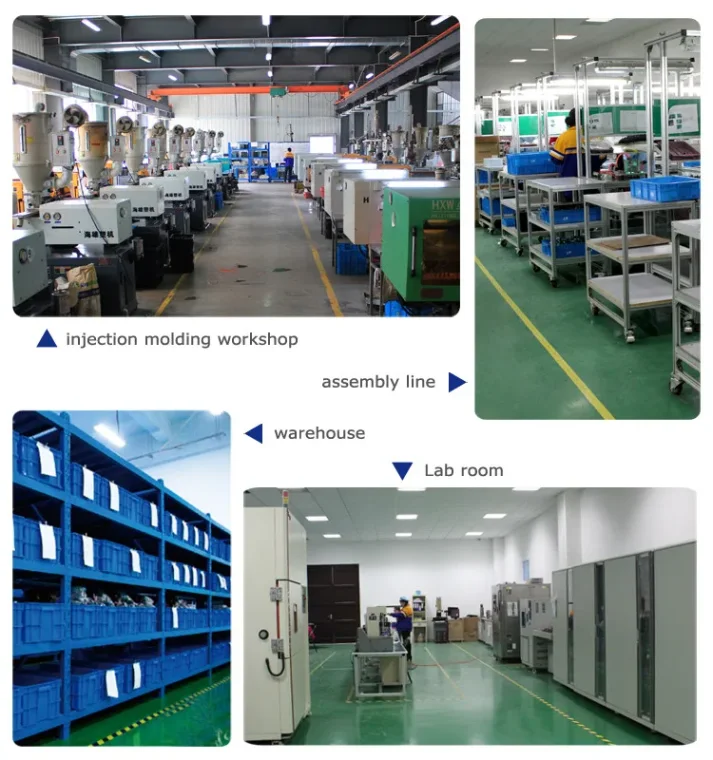

Why Buy from Us as a Factory Supplier?

As a factory supplier, we offer wholesale prices on our LED Push Button Switch, ensuring you get the best value for your money. We are committed to providing excellent after-sales service, ensuring your satisfaction with your purchase. Choose us for reliable, high-quality products at competitive prices.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V AC

Place of Origin

Shanghai, China

Brand Name

SK(Shangkai)

Model Number

AD16-213-R

LED

Yes

Whether the smart

NO

IP level

IP40

Switch Combination

1NO1NC, 2NO2NC

product name

push button switch

Color

white,red,yellow,green,blue,gray

Action

alternate,moment

indicator voltage

2V, 6V, 12V, 24V, 110V, 220V

Operating temperature

-5℃~+75℃

Material

PA66

Certification

CQC CE ROHS

Protection Level

IP40
