Description
Product Specifications:
– Max. Current: 6A
– Max. Voltage: 250V AC
– Contact Resistance: ≤50mΩ
– Insulation Resistance: ≥100mΩ
– Dielectric Resistance: 1500V
– Electronic Life: 10,000 cycles
– Operating Temperature: T125
– IP Level: IP40
– Number of Poles: Single-pole
– Color: Black
Product Advantages:
– Customizable to meet specific requirements for bulk orders.
– High durability with a mechanical life of 500,000 cycles.
– Certified by CQC and ENEC, ensuring international quality standards.
– Factory direct prices, offering great value for money.
After-Sales Service:
We stand behind our products with comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any inquiries or issues.
|
max.rating cnrrent&voltage
|
6a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
electronic life
|
10000
|
||
|
operating temperature
|
T125
|
||
|
CQC,ENEC
|

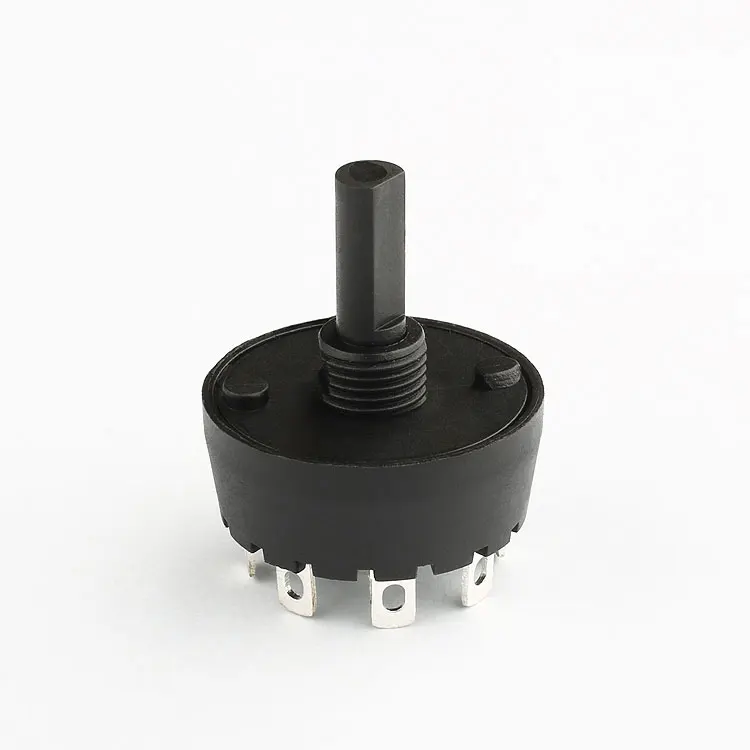

Why Choose Our Motorized Rotary Switch?
Our Motorized Rotary Switch stands out for its durability, customization options, and factory-direct pricing. With a mechanical life of 500,000 cycles and electronic life of 10,000 cycles, it ensures long-lasting performance. The switch is also customizable to meet specific requirements, making it ideal for bulk orders.
What Are the Key Features?
Key features include a max. current of 6A, max. voltage of 250V AC, and high insulation resistance. It also meets international quality standards with CQC and ENEC certifications, ensuring reliability and safety.
How Does It Benefit Household Appliances?
Designed specifically for household electric appliances, our switch provides smooth and reliable multi-position control. Its compact design and high-quality construction make it an excellent choice for enhancing the functionality and durability of your appliances.
