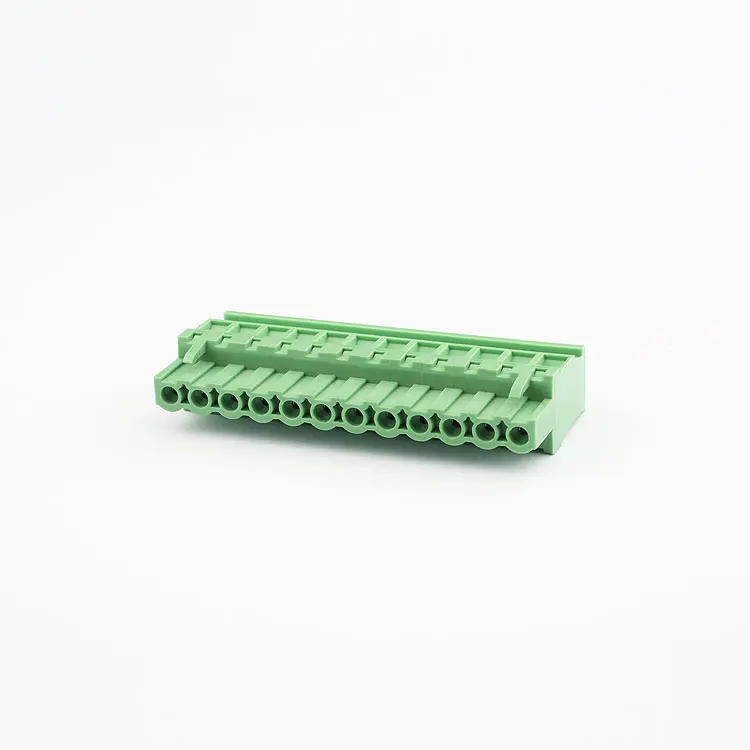

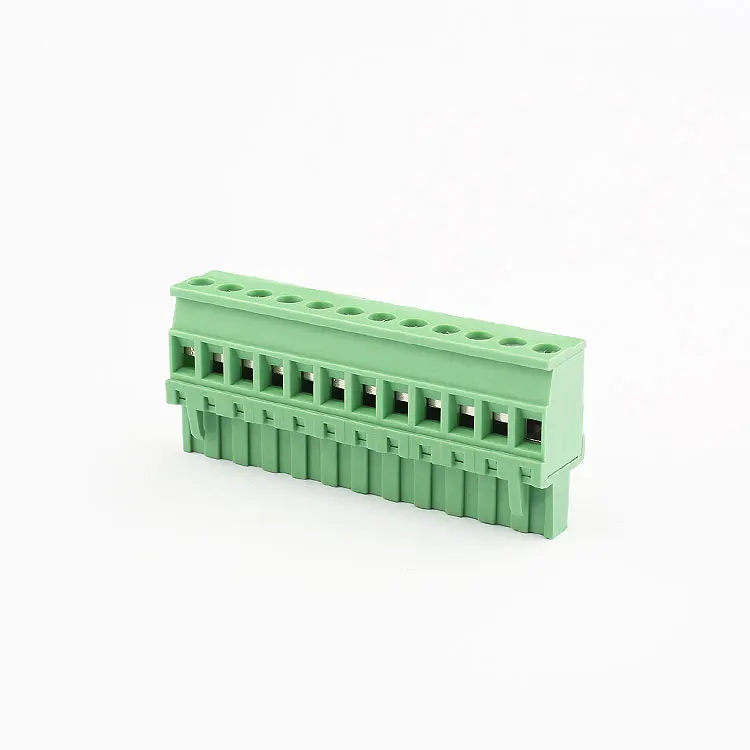

Factory Direct Wholesale 5.00mm Screwless Pluggable PCB Terminal Block 16A 300V

Categories: , Tags: , , , ,
500 - 9,999  pieces
$0.09

>= 10,000  pieces
$0.08
0 reviews

Factory Wholesale 5.00mm Screwless Pluggable PCB Terminal Block 16A 300V Supplier

Clean All

Description

Introducing our premium 5.00mm Screwless Pluggable PCB Terminal Block, designed for reliability and efficiency in electrical connections. As a direct factory supplier, we offer wholesale pricing on this high-quality component, which boasts a rated voltage of 300V and a rated current of 16A. The terminal block features brass, tin-plated contacts for optimal conductivity and durability, with a contact resistance of just 20mΩ. It operates effectively in temperatures ranging from -40°C to +150°C, making it suitable for a wide range of applications including battery, industrial, and electric power systems. With 2 to 24 poles available, this terminal block offers flexibility in design. Our product is CQC certified, ensuring its quality and safety. Additionally, it has an insulation resistance greater than 5000MΩ at DC500V and can withstand voltages up to AC2000V/Min. Choose our factory-direct terminal block for superior performance and value.
item
value
Place of Origin
Shanghai,China
Brand Name
Sk(Shangkai), yongxing
Model Number

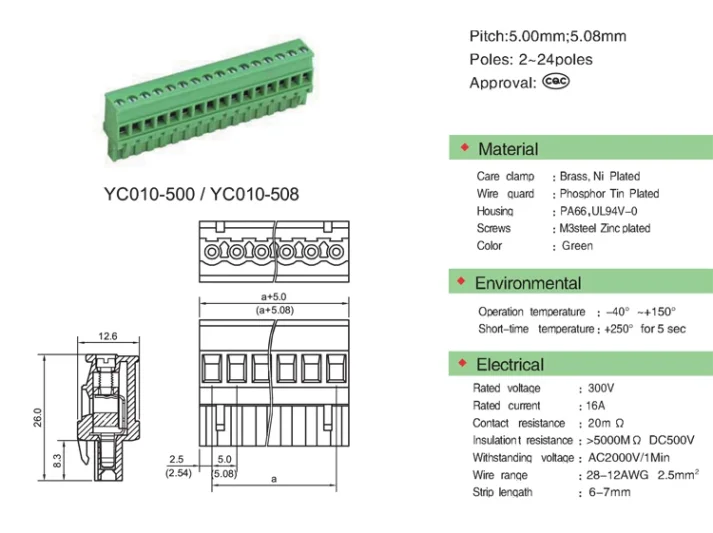

YC010-500
Type
Plug inTerminal
Rated voltage
300V
Rated Current
16A
Contact Resistance
20mΩ
Insulation Resistance
>5000MΩ DC500V
Withstand Voltage
AC2000V/Min
Operating Temperature
-40℃~+150℃
Contact
Brass,Tin plated
Poles
2~24poles
Certificate
CQC

Electronic component image for cross-border e-commerceElectronic device image for SEO optimizationElectronic gadget image for cross-border e-commerceElectronic product image for SEO purposesElectronic item image for cross-border e-commerceElectronic accessory image for SEO optimizationElectronic part image for cross-border e-commerce


Why Choose Our PCB Terminal Block?

Our PCB Terminal Block stands out due to its screwless pluggable design, which simplifies installation and reduces maintenance time. The brass, tin-plated contacts ensure excellent conductivity and longevity, even in harsh environments. With a wide operating temperature range and high insulation resistance, it's perfect for demanding applications.

What Are the Key Features?

Key features include a 5.00mm pitch, 2-24 pole configuration, 300V rated voltage, and 16A rated current. It's also CQC certified, guaranteeing its quality and safety. The screwless pluggable design and durable construction make it a reliable choice for electrical connections.

Where Can It Be Used?

This terminal block is ideal for battery systems, industrial applications, electric power, and any other electrical connection needs. Its versatility and high performance make it a must-have for professionals and DIY enthusiasts alike.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai,China
Application

Battery, Industrial, electric power
Material

plastic
Surface Finishing

Matte Varnishing
Brand Name

Yongxing
Model Number

YC010-500
Type

lug
Rated voltage

300V
Rated Current

16A
Contact Resistance

20mΩ
Insulation Resistance

>5000MΩ DC500V
Withstand Voltage

AC2000V/Min
Operating Temperature

-40℃~+150℃
Contact

Brass,Tin plated
Poles

2~24poles
Color

Green
