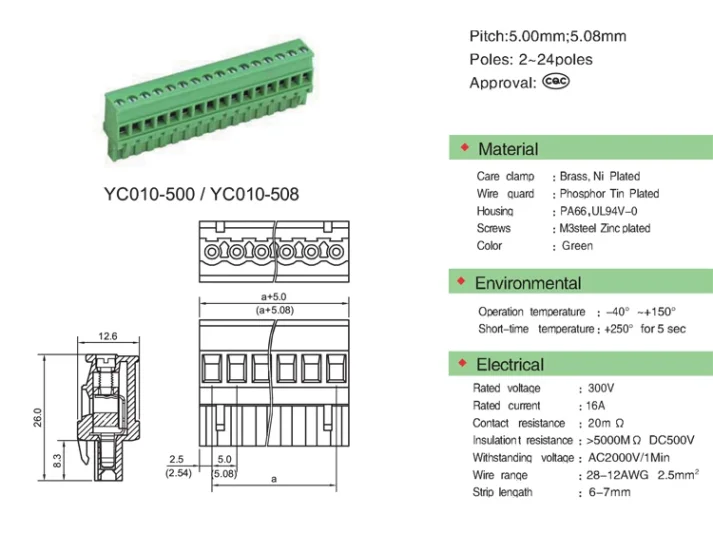

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YC010-508
|
|
Type
|
Plug inTerminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~24poles
|
|
Certificate
|
CQC
|

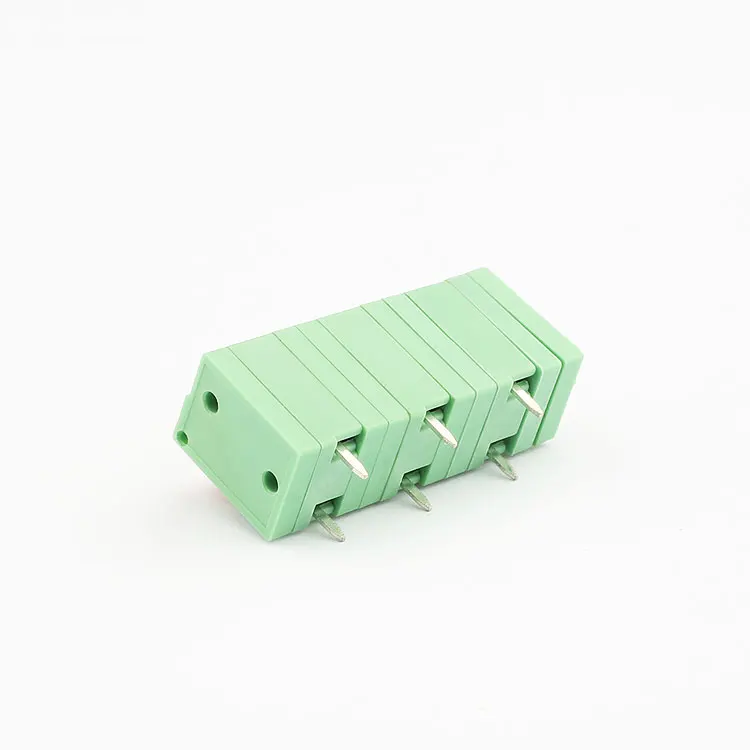

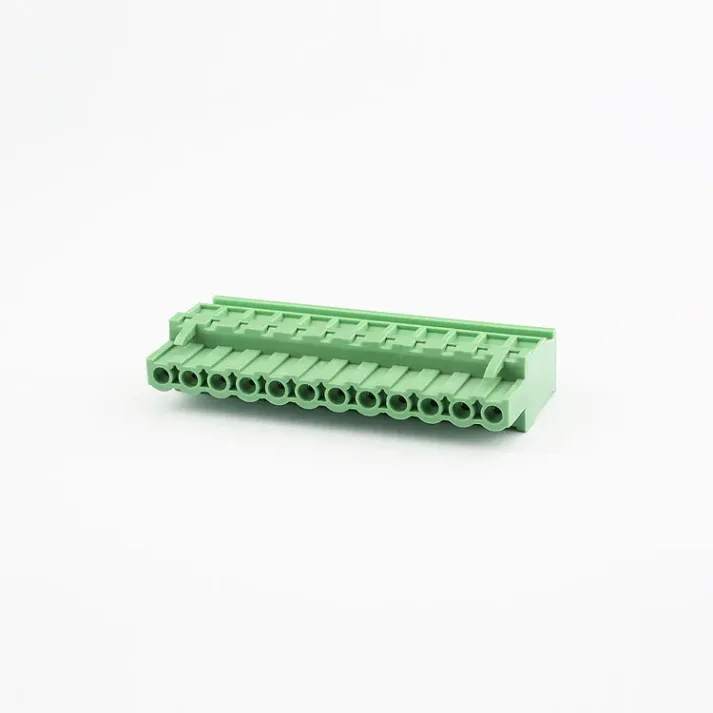

Why Choose Our 5.08mm Screwless Pluggable PCB Terminal Block?
Our terminal block stands out with its screwless, plug-in design, making installation and removal a breeze. It's crafted from durable plastic with a matte varnished finish, ensuring longevity and aesthetic appeal. With a rated voltage of 300V and current of 16A, it's perfect for demanding industrial, automotive, and electric power applications.
What Makes Our Product Unique?
Our terminal block boasts an ultra-low contact resistance of just 20mΩ, ensuring efficient electrical connections. It also has a high insulation resistance exceeding 5000MΩ at DC500V and can withstand up to AC2000V/Min. Operating temperatures range from -40°C to +150°C, making it suitable for even the harshest environments. Plus, it's CQC certified, guaranteeing quality and safety.
Why Buy From Us?
As a direct factory supplier, we offer competitive wholesale pricing on this versatile product. We provide excellent after-sales service and support to ensure complete customer satisfaction. Choose us for high-quality, reliable connectors at unbeatable prices.
