Description

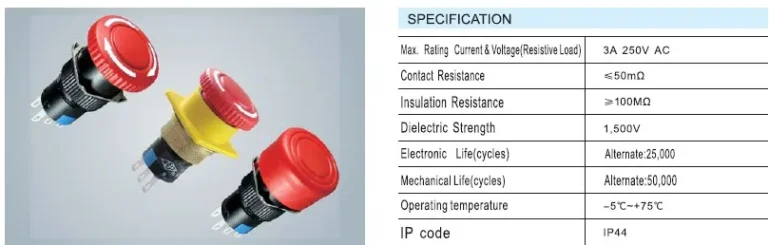

| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance of emergency stop push button switch | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength of button mushroom | 1500V |
| Electronic Life(cycles) | 25000 |
| Mechanical Life(cycles) of push button switch | 50000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP44 |

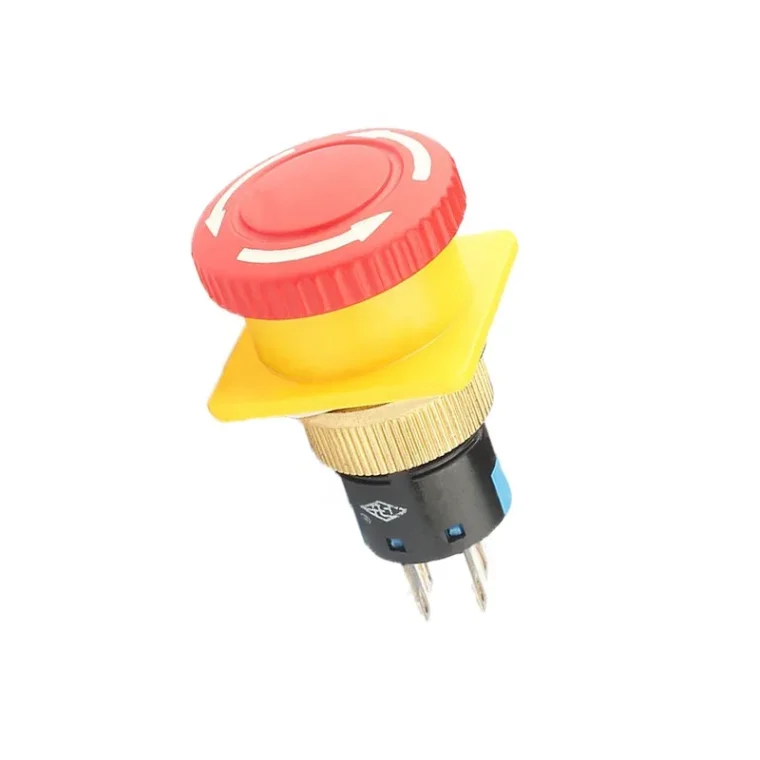

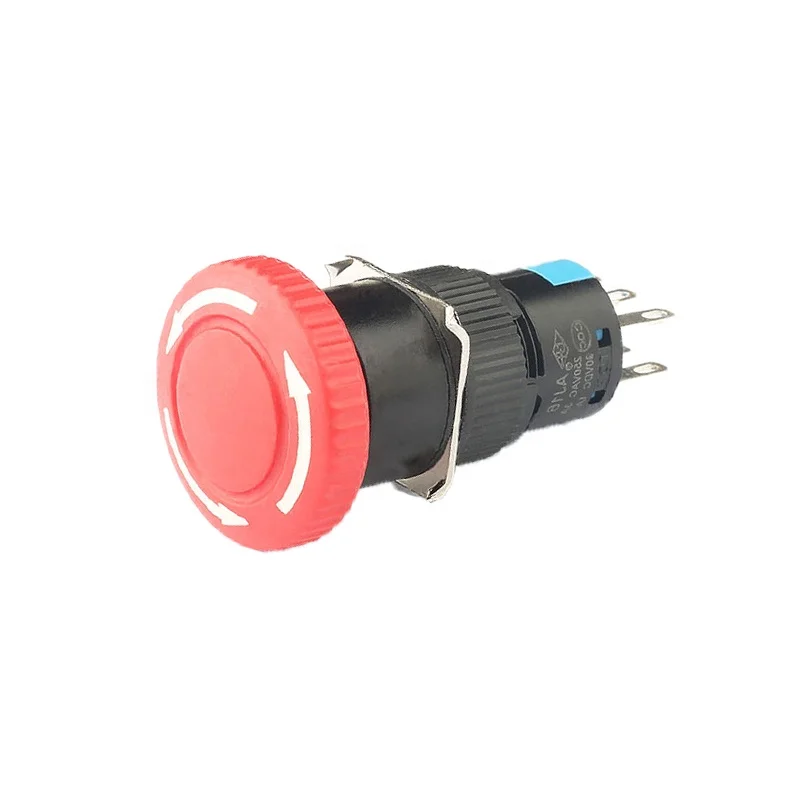

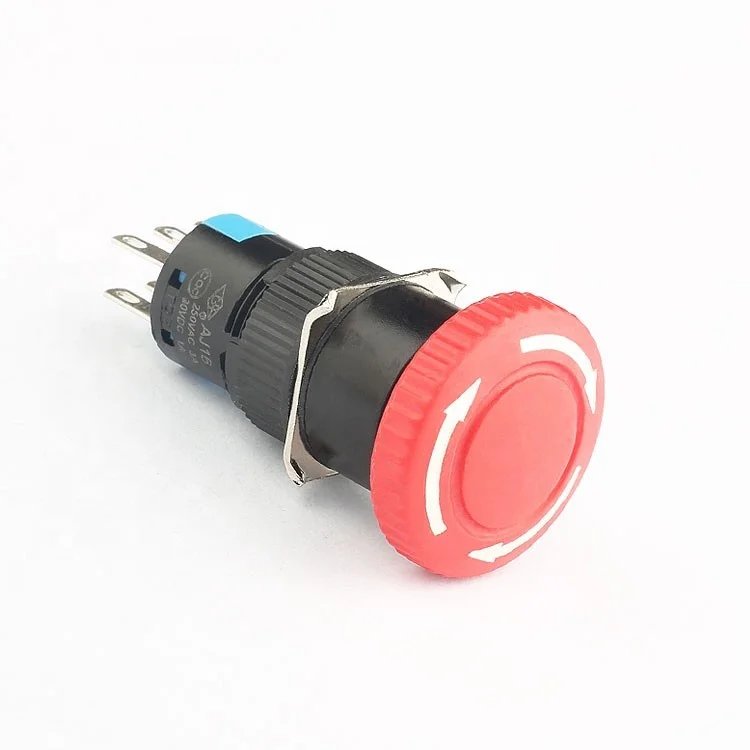

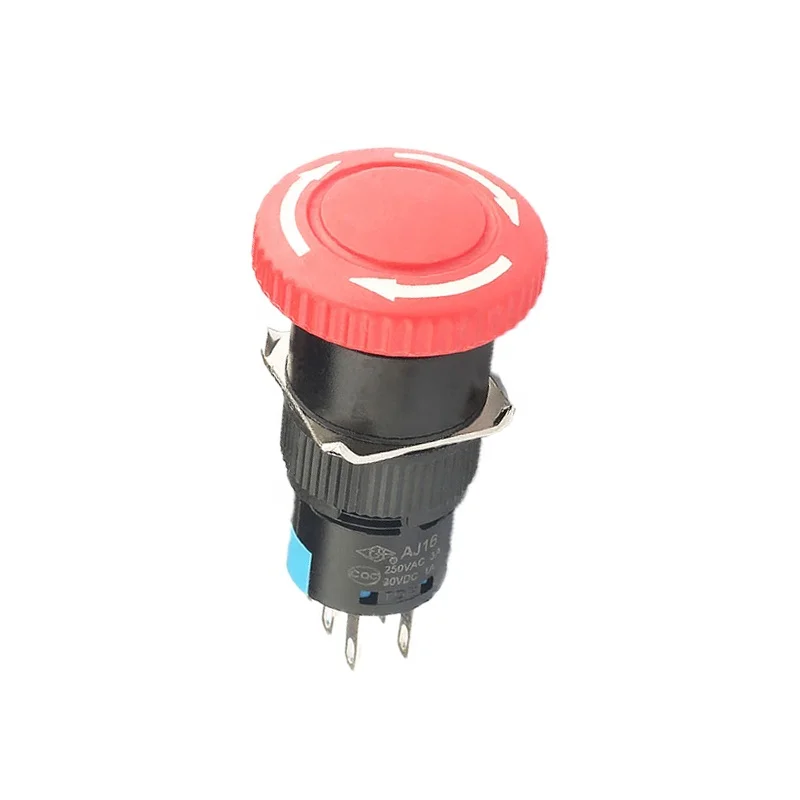

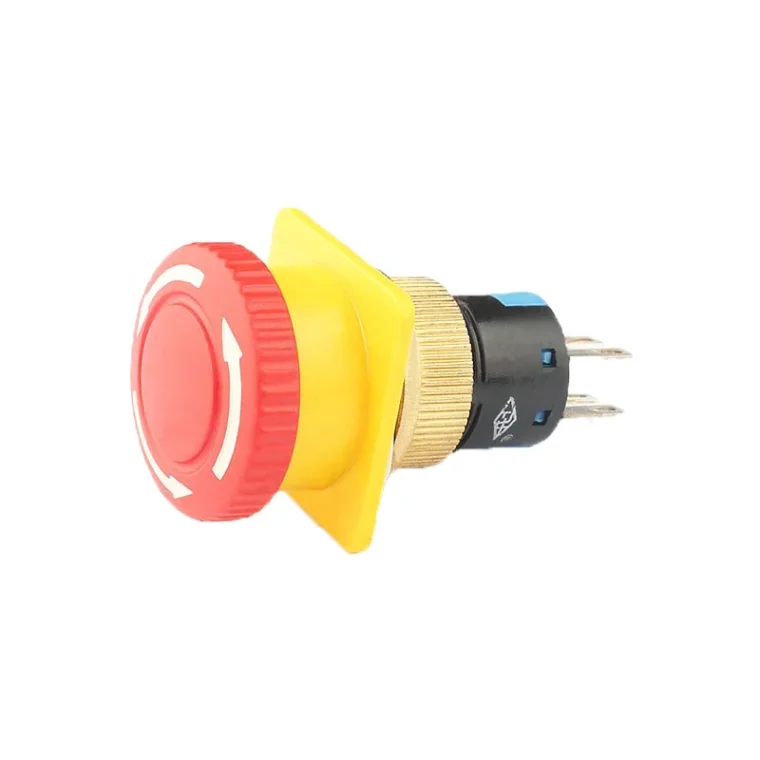

Why Choose Our AJ16 Red Emergency Stop Switch?
Our AJ16 Red Emergency Stop Switch is designed with safety and reliability in mind. It's UL approved, ensuring it meets the highest safety standards. With a maximum rating of 3A/250V AC, it's perfect for small electric appliances, providing a quick and effective way to cut off power in emergencies.
What Makes Our Switch Stand Out?
Our switch features a contact resistance of ≤50mΩ, insulation resistance of ≥1000 MΩ, and a dielectric strength of 1500V, making it highly durable and long-lasting. It has an electronic life of 25,000 cycles and a mechanical life of 50,000 cycles, ensuring it can withstand heavy use without failure.
Can We Customize the Switch for Your Needs?
Absolutely! As a factory supplier, we offer customization options for bulk purchases. Whether you need a specific color, size, or additional features, we can work with you to create the perfect emergency stop switch for your application. Contact us today to discuss your customization needs.
