Description
|
contact resistance
|
≤50MΩ
|
electronic life(cycles)
|
10000
|
|
insulation resistance
|
≥1000MΩ
|
operation temperature
|
T55,T105
|
|
IP code
|
IP40
|
max.rating current & voltage
|
6A 250V
|
Why Choose Our Rocker Switch?

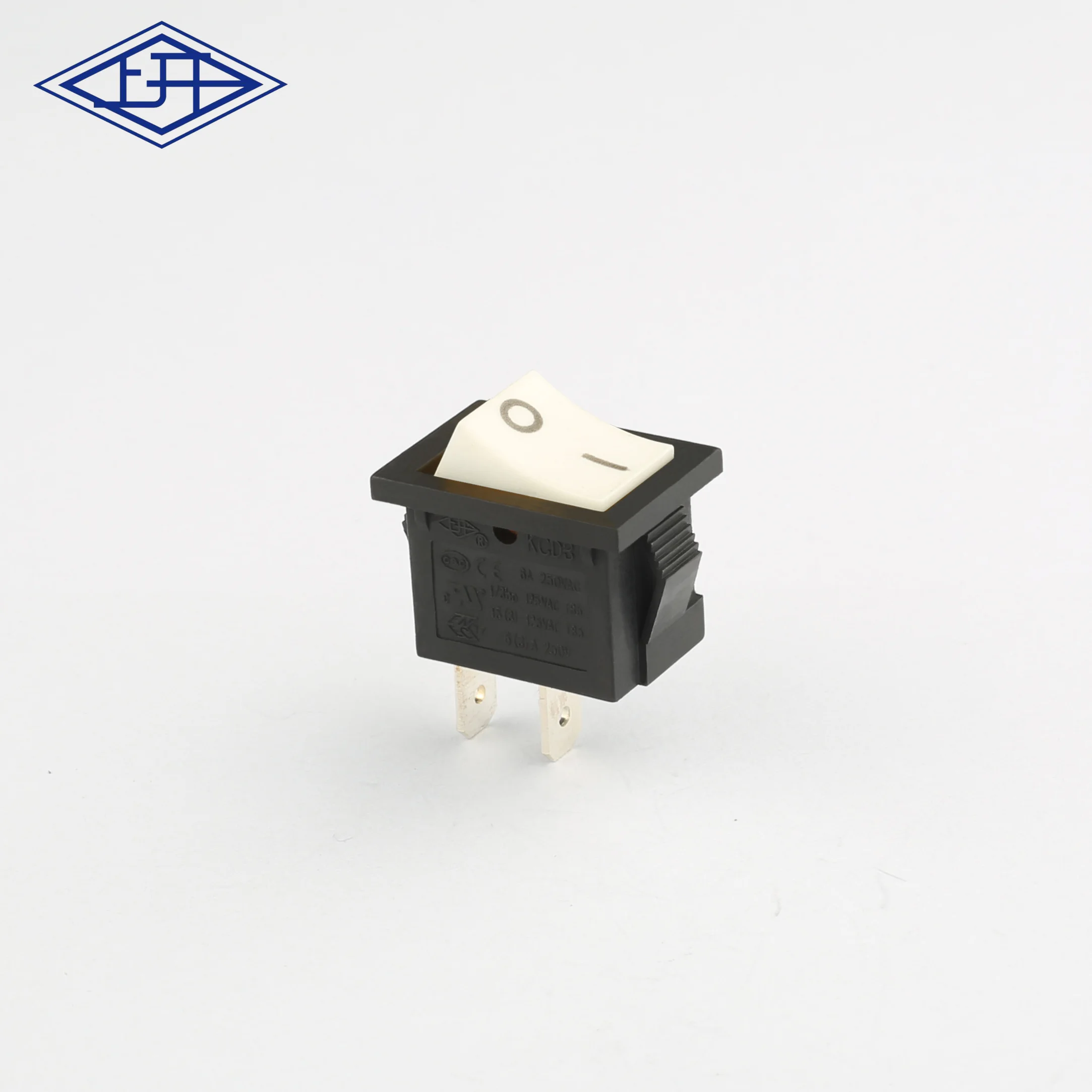

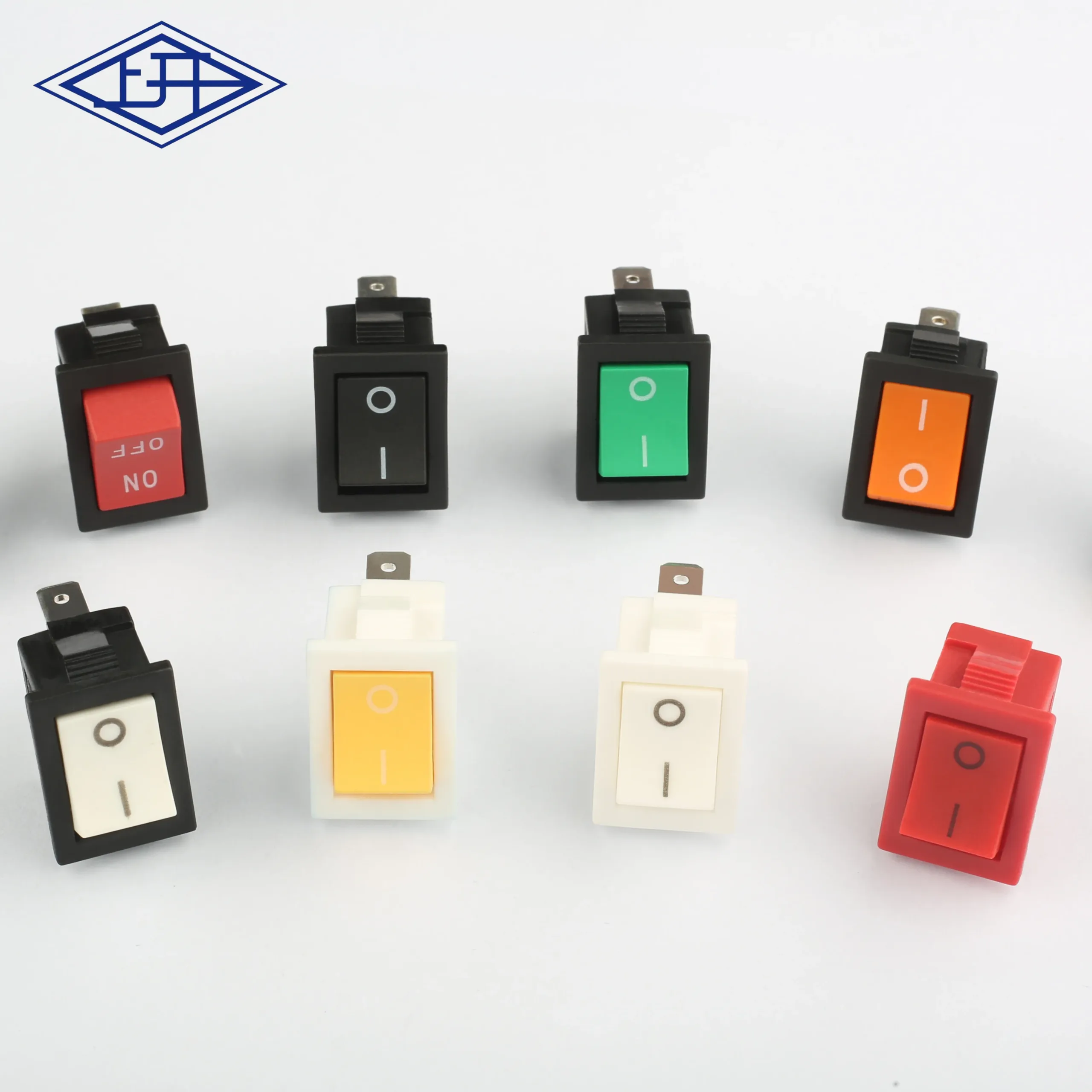

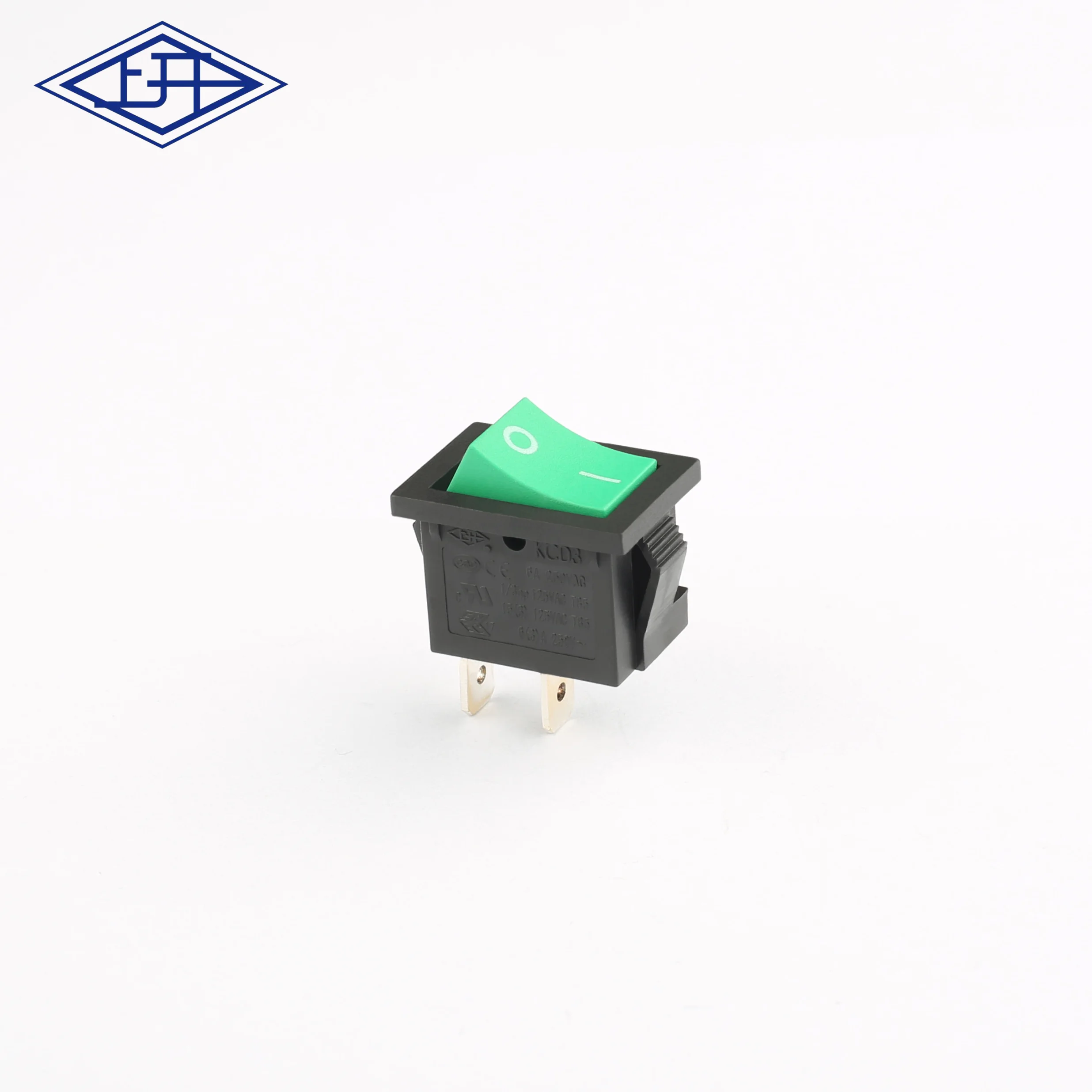

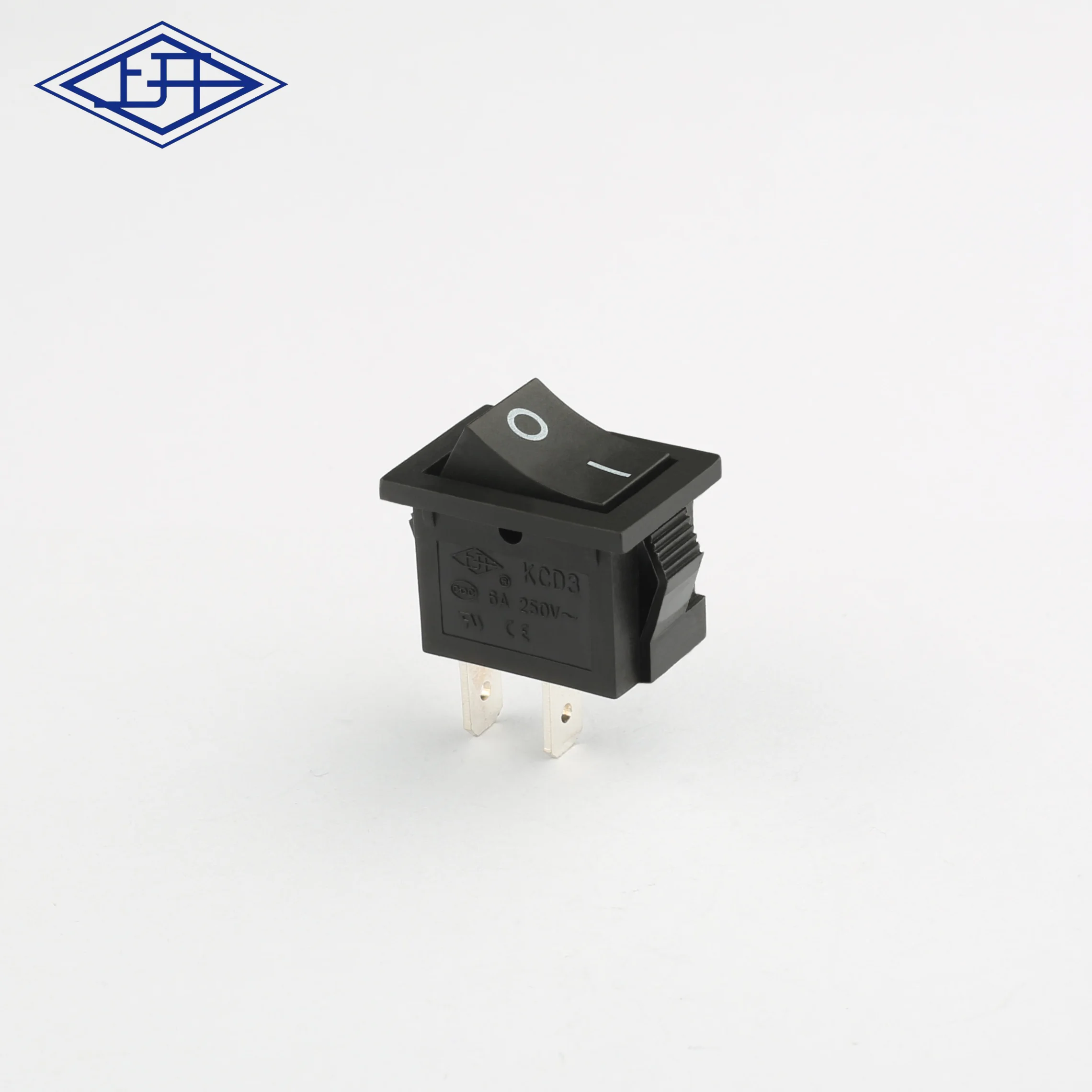

Our rocker switch is designed for durability and reliability, making it an ideal choice for home appliances. With a mechanical life of 100,000 times and an electrical life of 10,000 cycles, it ensures long-lasting performance. The black plastic housing not only adds a modern touch but also provides protection against solid objects larger than 1mm, thanks to its IP40 rating.
What Are the Key Features?
Key features include a maximum rating of 16A (4A in some models) and 250VAC, making it suitable for a wide range of applications. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1000MΩ, ensuring reliable electrical performance. Additionally, our switches are certified with CQC, CE, UL, CB, ENEC17, and ROHS, guaranteeing safety and compliance.
Why Buy from Us?
As a factory supplier, we offer competitive pricing and superior quality. Our switches are designed to meet the highest standards, ensuring customer satisfaction. Choose us for your electrical control needs and experience the difference in quality and service.
