Factory Direct Wholesale Durable Waterproof Rocker Switch 10A/16A 125V/250V Supplier

>= 500  pieces
$0.49

0 reviews

Factory Direct Wholesale Rocker Switch 10A/16A 125V/250V Supplier – Durable, Waterproof, Certified

Description

As a professional factory and supplier, we are proud to present our high-quality Rocker Switch. This switch is designed to meet diverse needs with its robust specifications. It can handle a maximum current of 16A and a maximum voltage of 250V, making it suitable for a wide range of applications including cars, industrial machinery, marine equipment, buses, electric equipment, and off-road vehicles. Made from durable plastic, it ensures long-lasting performance. The switch features 4 pins, an ON-OFF action, and a solder termination type for easy installation. With a contact resistance of ≤50mΩ and an insulation resistance of ≥100MΩ, it guarantees reliable electrical connections. The dielectric strength of 1500VAC/min and an IP65 rating ensure it can withstand harsh environments. Its mechanical life of 1,000,000 times and electrical life of 10,000 cycles make it a durable choice. Certified by CQC, CE, UL, CB, and ENEC, it meets international safety standards. Available in black, blue, green, orange, red, white, and yellow, it offers flexibility in design. Our factory direct wholesale prices make it a cost-effective solution for your needs. We also provide excellent after-sales service to ensure your satisfaction.

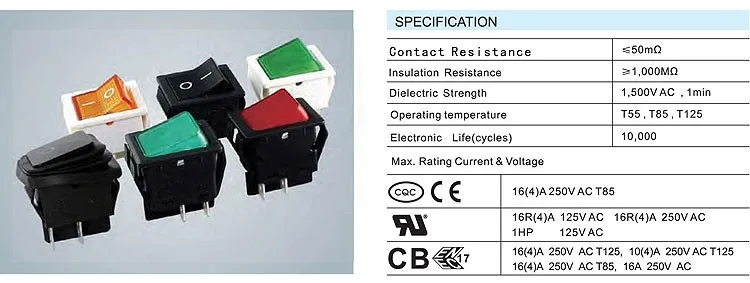

contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life
10000
dielectric strength
1500V
IP code
IP65

Electronic component image for cross-border e-commerceElectronic device image for e-commerce optimization


Key Features and Advantages

Our Rocker Switch stands out with its high durability and waterproof design, making it ideal for harsh environments. The factory direct wholesale pricing ensures cost-effectiveness, while the wide range of color options provides design flexibility. Certified by multiple international bodies, it guarantees safety and reliability.

Applications and Suitability

This switch is perfect for cars, industrial machinery, marine equipment, buses, electric equipment, and off-road vehicles. Its high current and voltage ratings make it suitable for demanding applications, ensuring reliable performance.

Why Choose Our Rocker Switch?

As a factory and supplier, we offer competitive prices without compromising on quality. Our after-sales service ensures that any issues are promptly addressed, providing peace of mind to our customers. Choose our Rocker Switch for a reliable, durable, and cost-effective solution.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2-21-FA1A-B

Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles

Material

plastic

Pins

4P

Whether the smart

NO

Mechanical Life

1000000 Times

IP level

IP65

Switch Action

ON-OFF

Termination Type

solder

Contact Resistance

≤50mΩ

Insulation Resistance

≥100mΩ

Dielectric Strength

1500VAC/min

Operating Temperature

T55 T85 T125

Electrical Life

10000

Max.Rating Current

16A

Max.Voltage

250V

Certificate

CQC CE UL CB ENEC
