Description
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V 1min
|
operating temperature
|
-25° to +85°
|

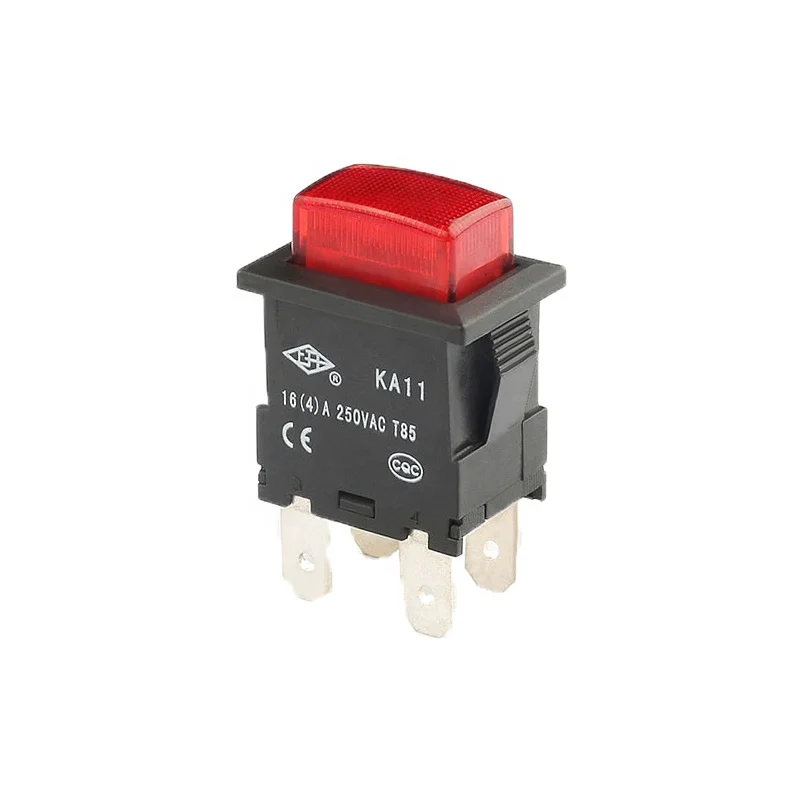

Why Choose Our KA Series Push Button Switch?
Our KA Series Push Button Switch stands out with its self-locking mechanism and bright LED indicator, making it ideal for various applications. The plastic construction ensures durability, while the full illuminated LED provides clear visibility, even in low-light conditions. With a maximum current of 16A and voltage of 250V, it's built to handle demanding tasks.
Key Features and Benefits
Enjoy a contact resistance of ≤50mΩ, dielectric strength of 1500V, and an operating temperature range of -25°C to +85°C. The switch comes with a square head, pin terminal, and 1NO1NC combination, available in multiple colors. As a factory supplier, we offer wholesale pricing and exceptional customer service, including a robust warranty and after-sales support.
Applications and Versatility
Perfect for electric appliances, home appliances, and industrial control systems, our switch offers customized applications to meet your specific needs. Its wide temperature range and IP40 protection level ensure reliable performance in various environments. Choose our KA Series Push Button Switch for superior performance, value, and versatility.
