Factory Direct Wholesale KCD1 Waterproof 3-Pin Rocker Switch 16A 250VAC

500 - 999  pieces
$0.35

1,000 - 2,999  pieces
$0.32

>= 3,000  pieces
$0.30

0 reviews

Factory Direct Wholesale KCD1 Waterproof Rocker Switch – Durable, Versatile, Customizable.

Description

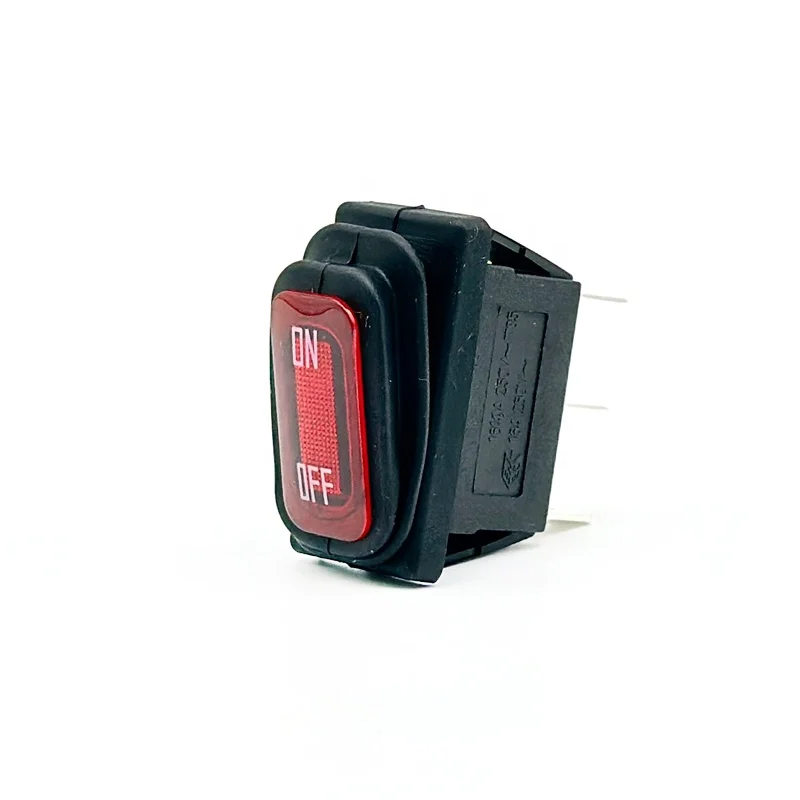

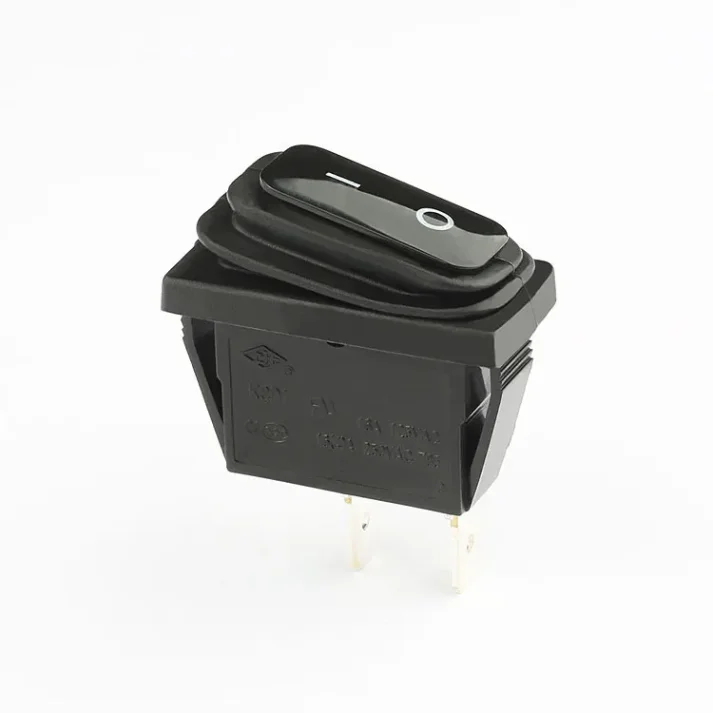

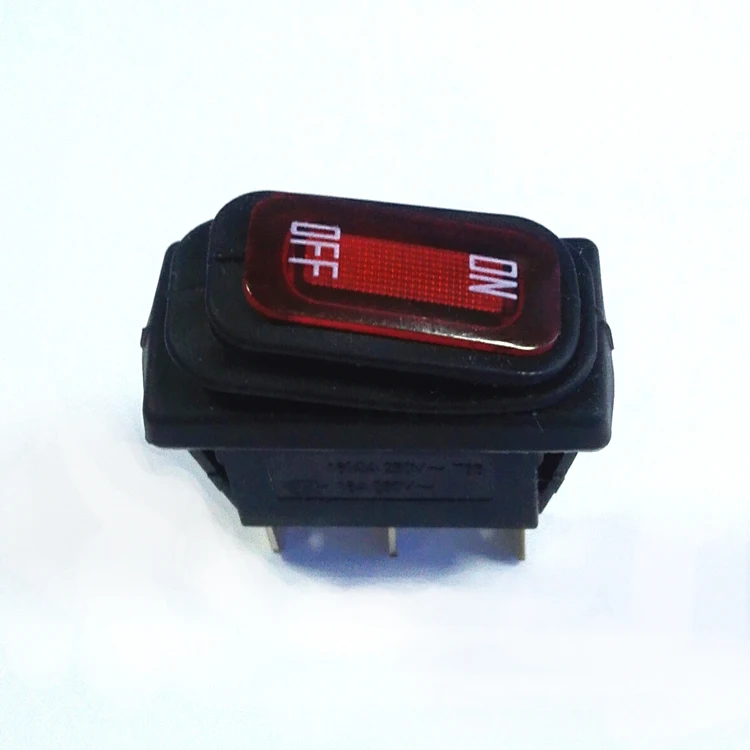

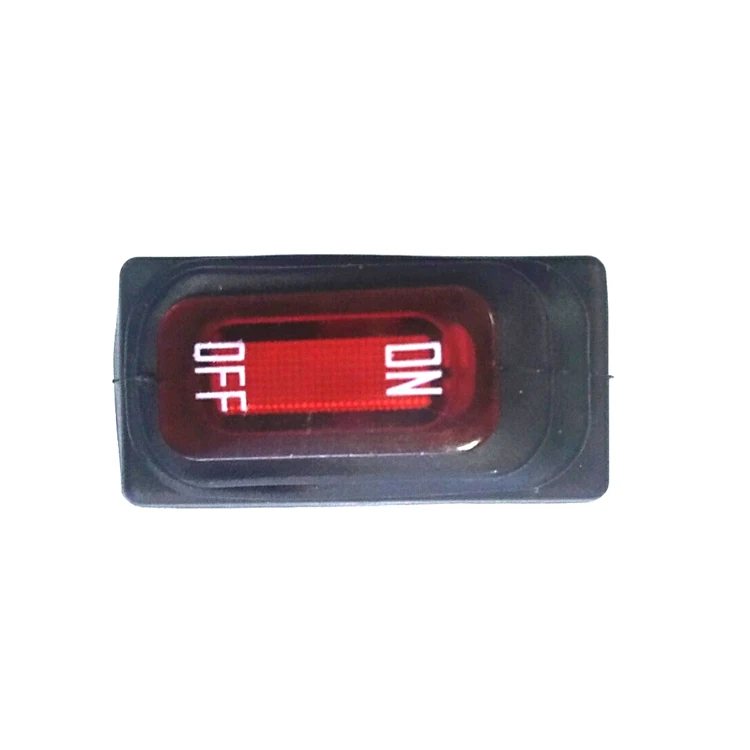

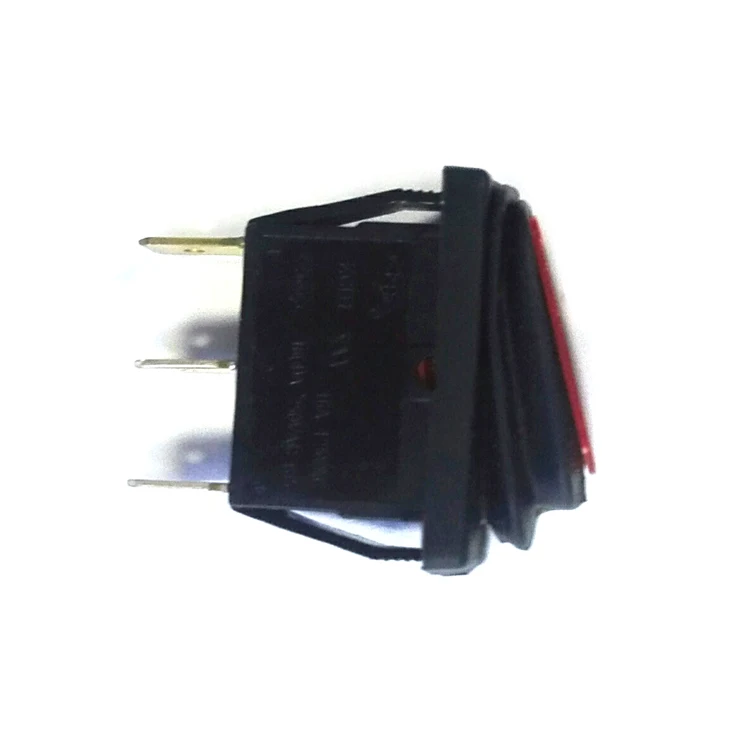

As a leading factory supplier, we proudly present our KCD1 Waterproof 3-Pin Rocker Switch, designed for durability and versatility. This switch is perfect for cars, industrial machinery, and electric equipment, offering a rated current of 16A and a voltage of 250VAC. Crafted from high-quality plastic, it ensures long-lasting performance with a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles.

Our switch stands out with its IP65 waterproof rating, making it ideal for harsh environments. It features a color light indicator and comes with a plug-in termination type for easy installation. With certifications including UL, ENEC, CB, CE, and CQC, you can trust in its safety and reliability.

As a factory supplier, we offer competitive wholesale prices and the flexibility to customize switches to meet your specific requirements. Our 60 senior engineers and state-of-the-art facilities ensure top-notch quality and quick turnaround times. Choose us for your switch needs and experience the difference in quality and service.

rated current/votage 16a/250v ac
electronic life 10000cycles
dielectric strength 1500v
certifications UL ENEC CB CE CQC
contact resistance ≥1000MΩ

Electronic component for cross-border e-commerceElectronic device for e-commerce store


Why Choose Our KCD1 Waterproof Rocker Switch?

Our KCD1 Waterproof Rocker Switch is designed for durability and versatility, making it ideal for a wide range of applications. With its IP65 waterproof rating, it can withstand harsh environments, ensuring reliable performance in any condition.

What Makes Our Switch Stand Out?

Our switch stands out with its high-quality plastic construction, long mechanical and electronic life, and easy plug-in termination type. Additionally, it comes with color light indicators and certifications including UL, ENEC, CB, CE, and CQC, ensuring safety and reliability.

Can We Customize the Switch?

Yes, as a factory supplier, we offer the flexibility to customize switches to meet your specific requirements. Whether you need a different color, size, or function, our team of senior engineers can work with you to create the perfect switch for your needs.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Shanghai Yongxing

Model Number

KCD1-11

Application

Cars, Industrial, electric equipment

Material

plastic

Pins

3p

Whether the smart

NO

Mechanical Life

100000

IP level

IP65

Switch Action

ON-OFF

Termination Type

Plug-in

Color

Blcak

Function

SPST

Product type

Rocker Switch T125 55

Contact Resistance

≤50mΩ

Insulation resistance

≥1000MΩ

Dielectric Strength

1500V AC , 1min

Electronic Life

10,000 cycles

Operating Temperature

T55 T85 T125
